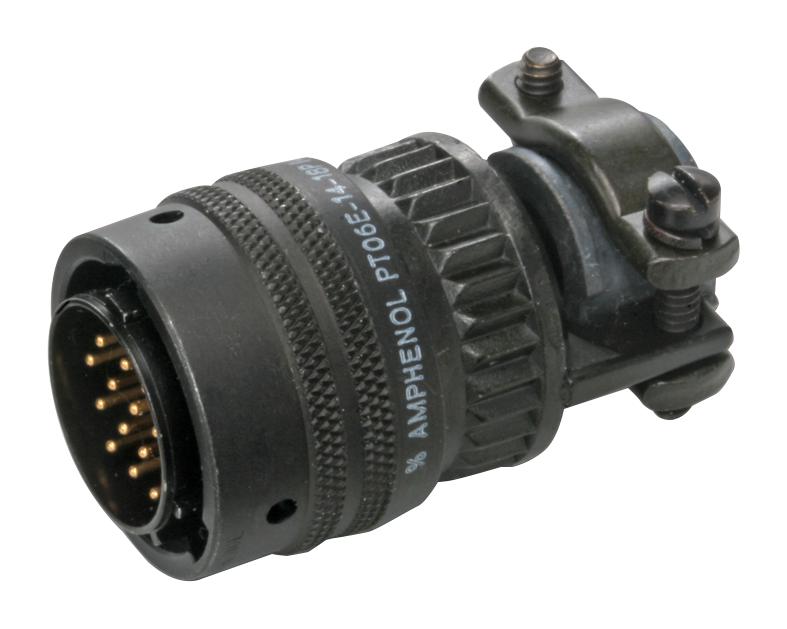

AMPHENOL INDUSTRIAL PT06E145SSR Miniature Cylindrical Connector
The PT06E145SSR is a miniature cylindrical connector designed for high-reliability applications, featuring a bayonet coupling, solder contacts, and environmental sealing. It is suitable for military and industrial uses including signal and power transmission in harsh environments. Made with aluminum shells and gold-plated contacts, it offers excellent corrosion resistance and superior electrical performance. The connector supports flexible configurations with optional features like hermetic sealing, printed circuit board contacts, and various finishes. It operates reliably across a temperature range from -55°C to +125°C and meets MIL-C-26482 Series 1 standards, ensuring durability and optimal performance in demanding conditions.
AMPHENOL INDUSTRIAL PT06E145SSR Miniature Cylindrical Connector Specifications:
- Shell Material: Aluminum
- Contact Material: Gold-plated copper alloy
- Operating Temperature Range: -55°C to +125°C
- Voltage Rating: Up to 1000 VAC (RMS)
- Current Rating: 75A (size 20), 16A (size 16), 23A (size 12)
- Dielectric Withstanding Voltage: 1500 VAC RMS (sea level)
- Insertion/Removal Cycles: 500+ cycles
- Sealing: Resilient neoprene gaskets, optional hermetic glass seals
- Finish: Cadmium, anodic alumilite or nickel options
- Dimensions: Shell sizes 6 through 24, typical insulator thickness 0.030 inches
- Standards: MIL-C-26482 Series 1, compatible with PT series connectors
- Temperature Rating: -55°C to +125°C
- Vibration & Shock: Meets MIL-E-5272 for vibration and shock resistance
- Leak Rate: Less than 1.0 x 10^-8 cc/sec helium gas
- Various insert arrangements available for different contact counts
Buy the Buy Amphenol Miniature Cylindrical Connector Part Number PT06E145SSR Online
Order the Amphenol PT06E145SSR miniature cylindrical connector online today and enjoy fast delivery, superior electrical performance, and robust environmental sealing. This connector is ideal for military and industrial applications where durability, corrosion resistance, and reliable operation are critical. Equipped with premium gold-plated contacts, an aluminum shell, and certified to MIL-C-26482 Series 1 standards, it ensures consistent performance across wide temperature ranges. Protect your equipment and secure your connections with our trusted Amphenol products, available for immediate purchase.
Buy Amphenol PT06E145SSR miniature cylindrical connector now and experience unmatched reliability and performance in demanding military and industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL PT06E145SSR?
You can click on the BUY or RFQ button to purchase PT06E145SSR from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part PT06E145SSR?
You can download the PT06E145SSR datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of PT06E145SSR?
AMPHENOL INDUSTRIAL
