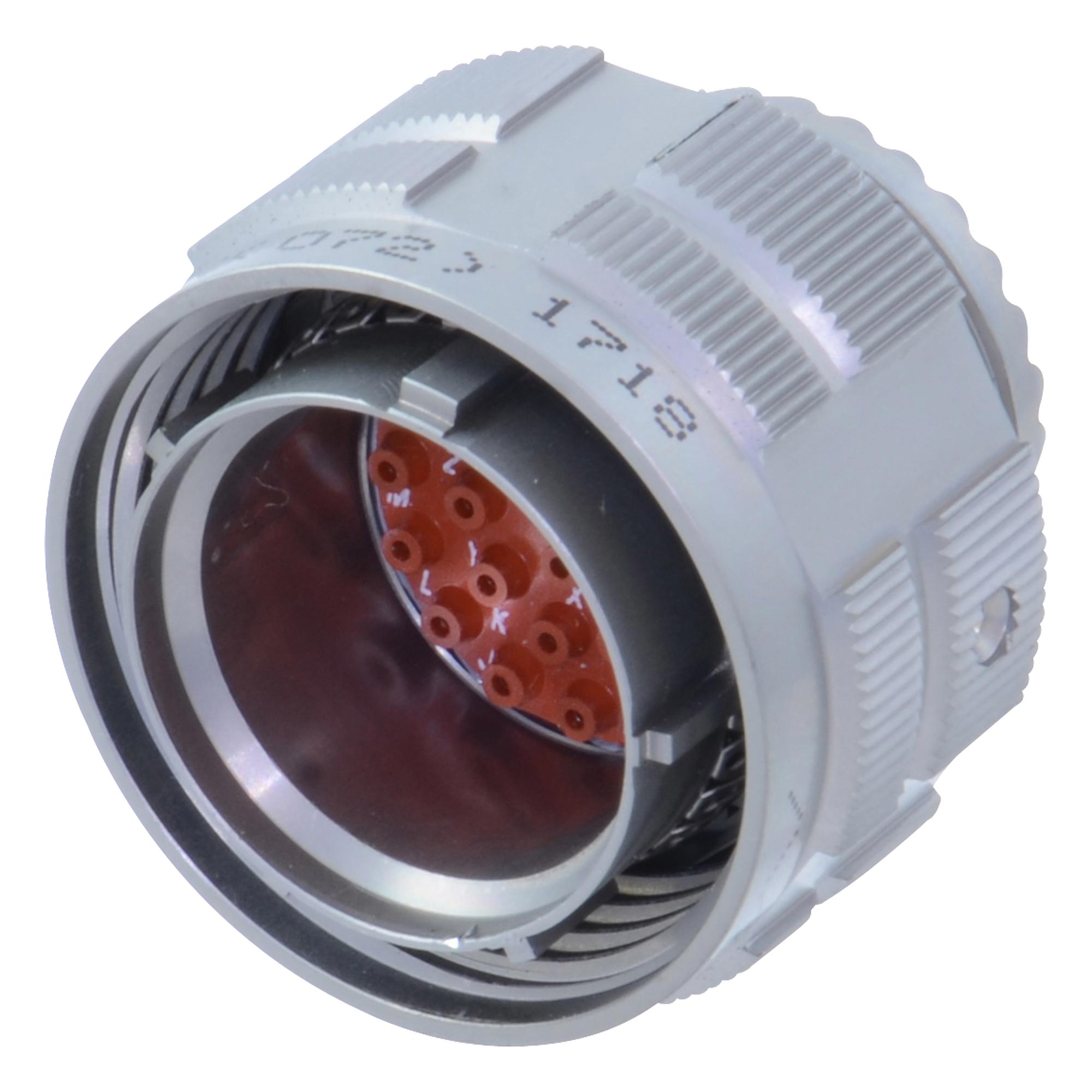

AMPHENOL INDUSTRIAL ALM06FD2135P072 Industrial Circular Connector
The Amphe-Lite M3 series connector by Amphenol is designed for harsh environments, offering high vibration resistance, quick-mating bayonet coupling, and superior EMI shielding. Its robust construction includes silicone seals for fluid resistance and a rigid dielectric insert for contact durability. Suitable for control systems, aerospace, telecommunications, medical instrumentation, and vehicle signal interconnects, the connector supports up to 500 hours of salt spray resistance with Gray ZnNi plating. It features 17 insert patterns, IP67 rating when mated, and is compatible with MIL-DTL-38999 Series III standards, providing reliable and easy installation in demanding applications.
AMPHENOL INDUSTRIAL ALM06FD2135P072 Industrial Circular Connector Specifications:
- Operating Temperature: -65°C to +125°C
- Mating Life: Minimum 500 cycles
- Insulation Resistance: >100 MΩ in humid conditions
- Salt Spray Resistance: Gray ZnNi plating for 500 hours
- Vibration Resistance: Sine and random vibration tested
- Shock Resistance: 3 ms half-sine, peak 300 g
- Contact Resistance: ≤12 mΩ for size 22D, ≤5 mΩ for size 20, etc.
- Current Rating: Varies by contact size, up to 23 A for size 16
- EMI Shielding: Attenuation ≥50 dB from 100 MHz to 10 GHz
- Sealing: Silicone seals, IP67 rating in mated condition
- Shell Sizes: 9, 11, 13, 15, 17, 19, 21, 23, 25
- Thread Type: Acme, V-thread, Metric options with specific dimensions
- Material: Aluminum alloy shell with Gray ZnNi plating
- Certifications: RoHS compliant, MIL-STD-1344A resistant
- Insert Patterns: 17 patterns, suitable for PCB and fiber optics
Buy the Amphenol Series Amphe-Lite M3: ALM06FD2135P072
Purchase the Amphenol Amphe-Lite M3 connector online today and benefit from quick-mating bayonet coupling, superior EMI shielding, and excellent corrosion resistance with Gray ZnNi plating. Designed for demanding industrial and aerospace applications, this connector offers IP67 sealing, high vibration resistance, and a durable construction that withstands salt spray, vibration, and temperature extremes. Easy to install, with multiple insert patterns and shell sizes, it ensures reliable performance in control systems, military, and telecommunication equipment. Order now to improve your interconnect reliability and simplify assembly processes.
Buy Amphenol ALM06FD2135P072 now and experience unmatched reliability and high vibration resistance in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL ALM06FD2135P072?
You can click on the BUY or RFQ button to purchase ALM06FD2135P072 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part ALM06FD2135P072?
You can download the ALM06FD2135P072 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of ALM06FD2135P072?
AMPHENOL INDUSTRIAL
