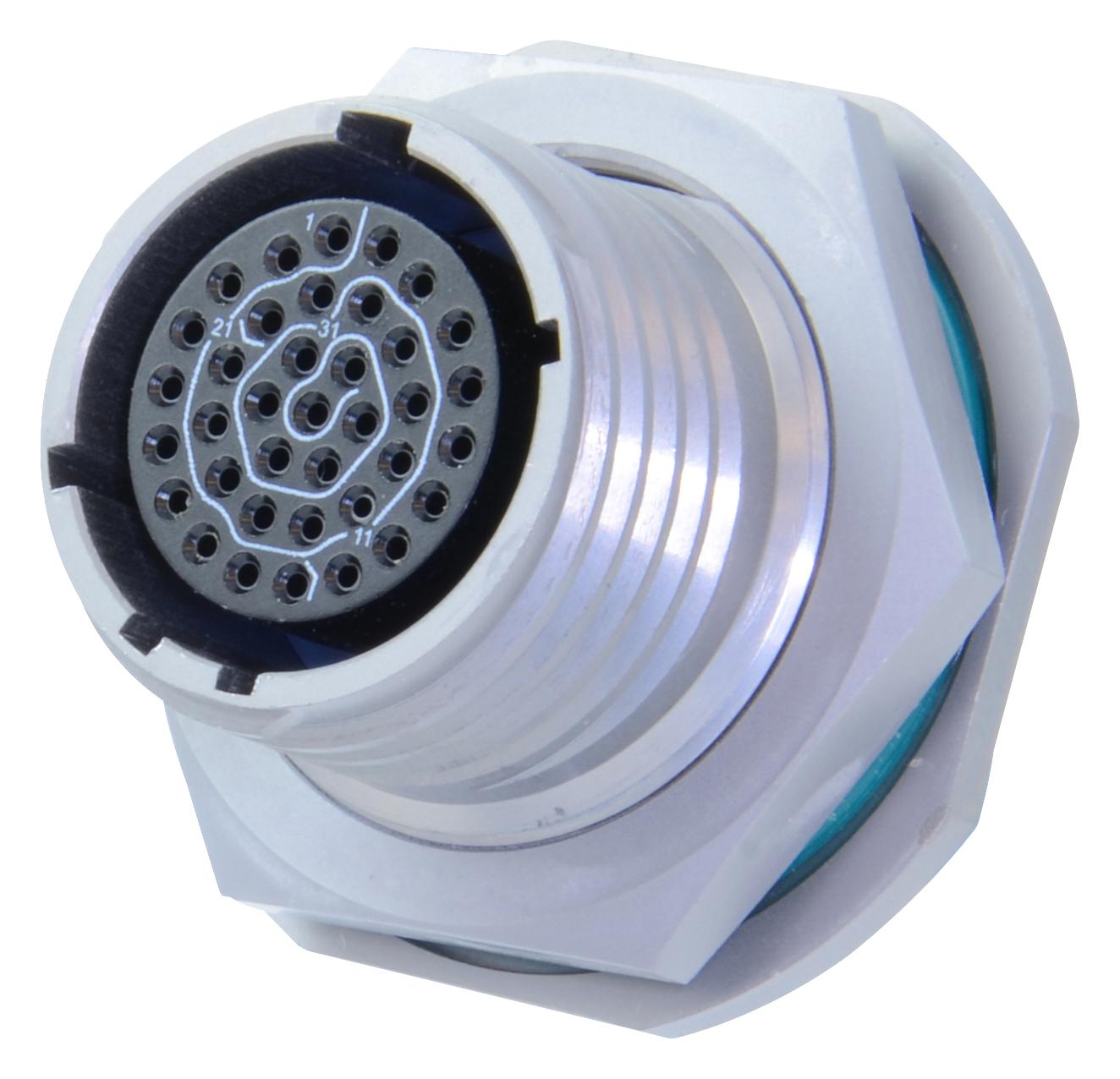

AMPHENOL INDUSTRIAL ALM07FD1398S072 Circular Connector
The Amphe-Lite M3 series, based on MIL-DTL-38999 Series III, is designed for harsh environments and features scoop-proof shells, quick-mating bayonet coupling, and durability with Gray ZnNi plating offering 500-hour salt spray resistance. These high-performance connectors are ideal for control systems, aerospace, telecommunication, medical instrumentation, and vehicle signal interconnects. They support high-density configurations with 17 insert patterns rated IP67, including printed circuit board and fiber optic contacts, providing excellent EMI shielding and vibration resistance for demanding applications.
AMPHENOL INDUSTRIAL ALM07FD1398S072 Circular Connector Specifications:
- Operating Temperature: -65°C to +125°C
- Mating Cycles: Minimum 500
- Insulation Resistance: > 100 MΩ
- Salt Spray Resistance: Gray ZnNi plating for 500 hours
- Vibration Resistance: Sine and random vibration up to 2000Hz
- Shock Resistance: Peak acceleration 300g, 3ms half-sine
- Contact Resistance: ≤ 12mΩ for 22D size, ≤ 5mΩ for 20 size
- Current Rating: Up to 75A depending on contact size
- EMI Shielding: Minimum 50dB attenuation from 100MHz to 10GHz
- Flammability: UL94 V-0
- Temperature Range: -65°C to +125°C
- Connection Type: Crimp contacts, removable
- Shell Sizes: 9, 11, 13, 15, 17, 19, 21, 23, 25
- Keyway options: 5, supporting mis-mating prevention
- Material: Aluminum shells with Gray ZnNi plating, silicone seals
Buy the Buy Amphenol Circular Connector Part Number ALM07FD1398S072 Online
Order the Amphenol ALM07FD1398S072 connector online today to ensure robust performance in demanding applications. Featuring scoop-proof shells, quick-mating bayonet couplings, and superior corrosion resistance with Gray ZnNi plating, this high-density connector offers IP67 sealing, excellent EMI shielding, and durability for aerospace, control systems, telecommunication, and medical instrumentation. Available with various insert patterns and keyway options, it guarantees compatibility and superior electrical performance, making it the ideal choice for rigorous industrial and military environments.
Buy Amphenol ALM07FD1398S072 now and experience unmatched reliability and performance in harsh environments, featuring quick-mating bayonet coupling and high vibration resistance.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL ALM07FD1398S072?
You can click on the BUY or RFQ button to purchase ALM07FD1398S072 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part ALM07FD1398S072?
You can download the ALM07FD1398S072 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of ALM07FD1398S072?
AMPHENOL INDUSTRIAL
