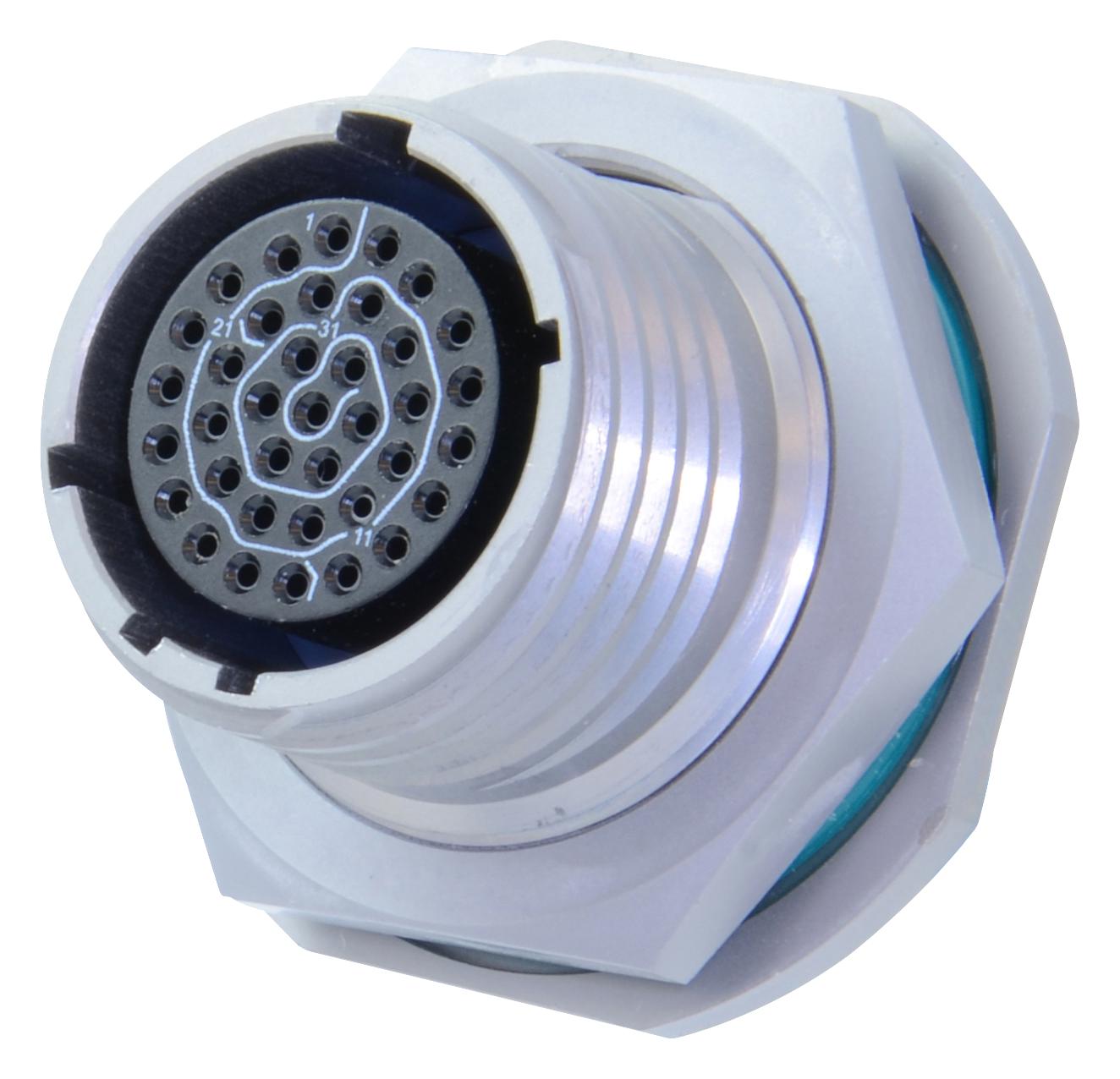

AMPHENOL INDUSTRIAL ALM07FD178S072 Circular Connector
Amphenol's Amphe-Lite M3 is a high-performance circular connector designed for harsh environments, utilizing MIL-DTL-38999 standards, RoHS compliance, and features such as scoop-proof shells, flexible insert patterns, and superior corrosion resistance with Gray ZnNi plating. It offers quick-mating bayonet coupling, high vibration resistance, and excellent EMI shielding. Suitable for control systems, aerospace, telecommunication, medical, and high-performance test equipment, it provides reliable electrical connections with a service temperature range of -65°C to +125°C, supporting up to 500 mating cycles and IP67 water resistance when mated.
AMPHENOL INDUSTRIAL ALM07FD178S072 Circular Connector Specifications:
- Operating Temperature: -65°C to +125°C
- Mating Cycles: Minimum 500
- Insulation Resistance: >100 MΩ at Normal Temperature
- Salt Spray Resistance: Gray ZnNi Plating up to 500 hours
- EMI Shielding: Attenuation of at least 50dB between 100MHz and 10GHz
- Flammability: UL94 V-0
- Chemical Resistance: MIL-STD-1344A Method 1016 (F Class)
- Vibration Resistance: Sine 10-2000Hz, Random 100-1000Hz
- Shock Resistance: 300g peak, 3ms half-sine
- Contact Size Range: 12 to 22D, with respective diameters and resistance
- Physical Dimensions: Shell sizes 13 to 25, thread sizes M12x1.6g to M37x1.69, maximum shell diameter 2.188 inches
- Water Resistance: IP67 rating in mated condition
- Material: Silicone sealing gaskets, hard dielectric insulator, stainless steel shrouds, and plated contact bodies
Buy the Amphenol ALM Series – Reliable Aerospace Connector for Industrial Applications
Purchase your Amphenol ALM M3 series connector online now for superior performance in harsh environments. This high-quality, scoop-proof, quick-mating connector offers excellent EMI shielding, corrosion resistance, and high vibration resistance, making it ideal for aerospace, control systems, medical, and telecommunication applications. With robust construction, IP67 water resistance, and support for up to 500 mating cycles, it ensures reliable electrical connections. Shop online today and enjoy fast delivery, competitive pricing, and trusted Amphenol quality for your critical projects.
Order your Amphenol Series ALM M3 connector today and ensure rugged, reliable connections in demanding industrial and aerospace projects.
