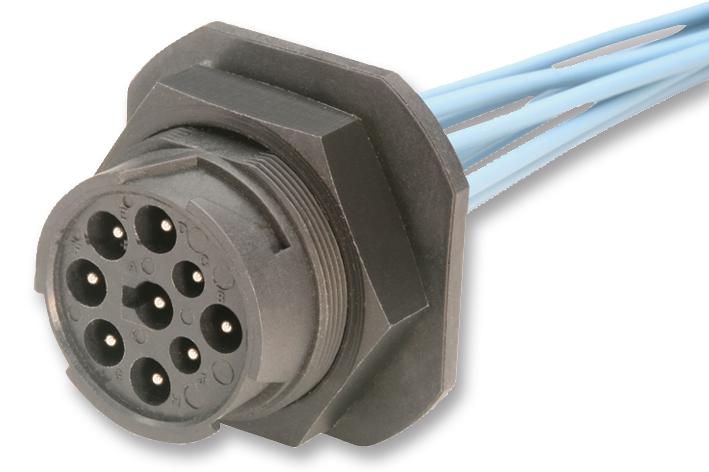

AMPHENOL INDUSTRIAL ATC1791939PN circular connector
The ATC17-9-1939PN is a 9-pin circular connector, designed as a jam nut receptacle with molded thermoplastic construction and a reverse bayonet quick-mate coupling for easy connection and disconnection. It is environmentally sealed with a redundant grommet wire seal, safeguarding against moisture and contaminants, suitable for construction, agriculture, and truck applications. Compliant with J1939 interface, it supports dielectric withstand voltage of 1500VAC at 2mA, a current rating of 13A at 125°C, and has a contact resistance of 60mV with 16AWG wire at 13A. Operating temp range from -55°C to +125°C, ensuring reliable performance in rugged industrial environments.
AMPHENOL INDUSTRIAL ATC1791939PN circular connector Specifications:
- Material: Molded thermoplastic
- Number of Pins: 9
- Sealing: Redundant grommet wire seal
- Withstanding Voltage: 1500VAC at 2mA
- Current Rating: 13A at 125°C
- Contact Resistance: 60mV at 16 AWG, 13A
- Insulation Resistance: 1000 megaohms at 25°C
- Operating Temperature Range: -55°C to +125°C
- Connector Type: Jam nut receptacle with reverse bayonet coupling
- Compliance: J1939 diagnostic interface
- Environmental Resistance: Moisture, contaminants, corrosion resistant
- Durability: No electrical or mechanical defects after 100 cycles
- Salt spray resistance: No corrosion after 48 hours MIL-STD 1344
- Sealed against water penetration when submerged in 3 feet of water
- Fluid Resistance: Resistant to industrial fluids
- Vibration: No discontinuities during sinusoidal vibration tests
Buy the Buy Amphenol ATC17-9-1939PN Part Number ATC1791939PN Online
Purchase the Amphenol ATC17-9-1939PN online today and ensure your industrial and automotive applications are equipped with a highly durable, sealed, and easy-to-mate circular connector. Designed with a molded thermoplastic body and quick bayonet coupling, it offers reliable sealing against moisture and contaminants. Suitable for demanding environments, this connector supports high current capacity of 13A, withstands voltages up to 1500VAC, and operates over a wide temperature range from -55°C to +125°C. Enhance your connection reliability and ease of installation with this rugged and compliant industrial connector.
Get Amphenol ATC17-9-1939PN today—built for rugged durability and reliable industrial performance.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL ATC1791939PN?
You can click on the BUY or RFQ button to purchase ATC1791939PN from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part ATC1791939PN?
You can download the ATC1791939PN datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of ATC1791939PN?
AMPHENOL INDUSTRIAL
