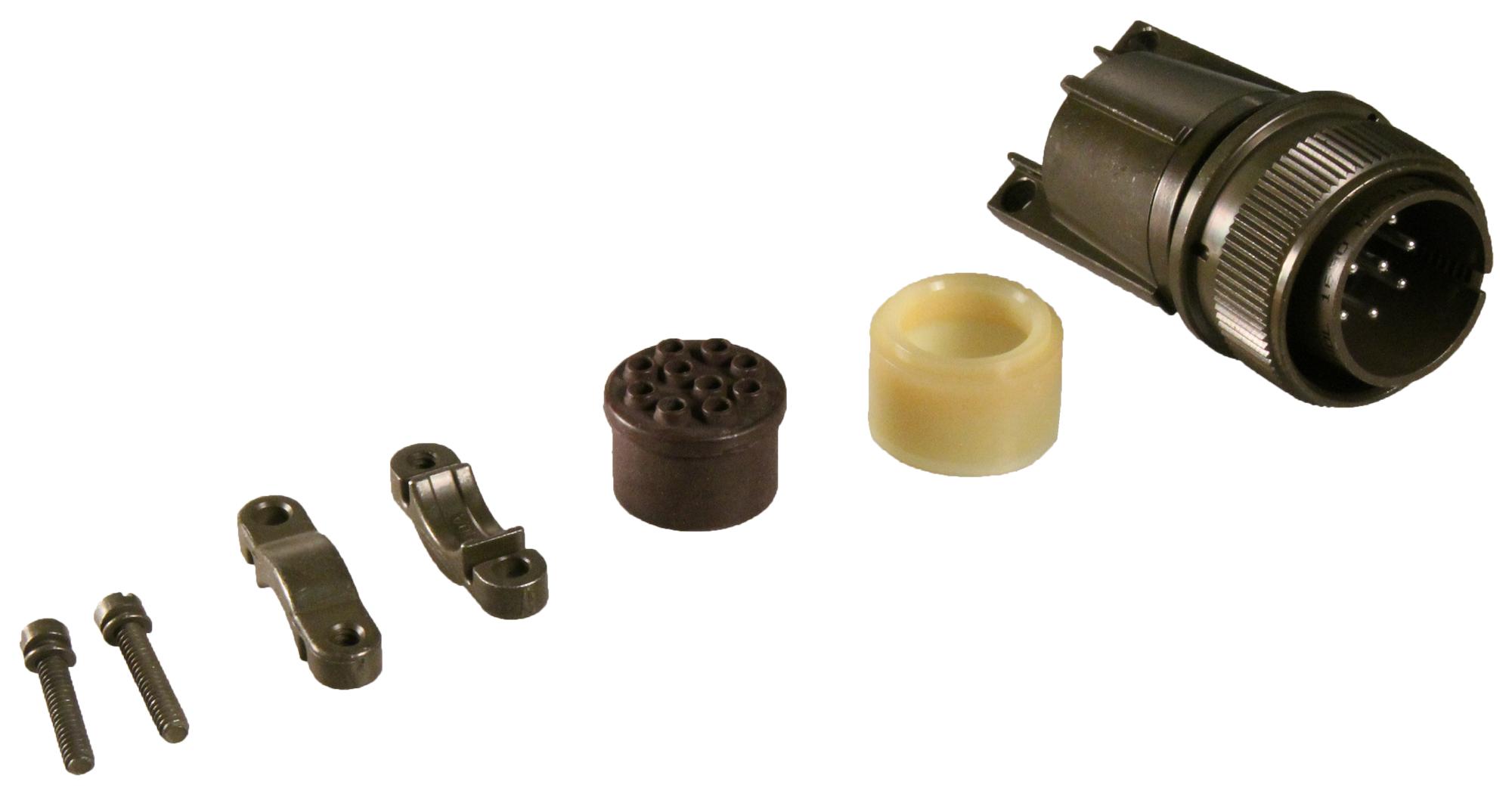

AMPHENOL INDUSTRIAL MS3106E181P Circular Connector
The MS3106E18-1P is a circular connector featuring a threaded coupling, shell size 18, and a pin configuration of 18-1 with 10 solder cup contacts. Made from aluminum alloy with olive drab chromate coating, it offers IP65 protection and salt spray resistance for 500 hours. The connector supports operating temperatures from -55°C to +125°C and withstands up to 500 mating cycles. Designed for reliable electrical connections, it includes features like coupling torque of 8 Nm max, contact retention, and neoprene insulators, suitable for industrial and aerospace applications.
AMPHENOL INDUSTRIAL MS3106E181P Circular Connector Specifications:
- Shell Material: Aluminum alloy
- Shell Plating: Olive drab chromate over cadmium
- Contact Arrangement: 18-1 with 10 size 16 solder cup contacts
- Contact Material: Copper alloy
- Contact Plating: Hard silver
- Contact Resistance: Aan
- Insulator Material: Neoprene
- Insulator Resistance: > 1000 MO according to VG95319 and VG95210
- Test Voltage: 1600 Vrms
- Operating Voltage: > 50V in accordance with DIN VDE 410 and IEC 60364-4-41
- Ambient Temperature: -55°C to +125°C
- Environmental Resistance: IP65, 500 hours salt spray resistant
- Mating Cycles: 500 min
- Coupling Torque: Closing 8 Nm max, Opening 0.58 Nm min
- Wire Stripping: 6.2 mm
- Air and Creepage Paths: 1.4 mm
Buy the Cannon Series MIL-C-5015 Circular Connector: MS3106E18-1P
Order this high-performance circular connector online today to ensure robust, corrosion-resistant electrical connections. Featuring a durable aluminum shell, IP65 protection, and salt spray resistance, it is ideal for demanding industrial, military, and aerospace environments. The MS3106E18-1P supports up to 500 mating cycles, has a temperature range of -55°C to +125°C, and includes 10 solder cup contacts with hard silver plating. Simplify your installation process with this reliable, easy-to-mate connector designed for long-term use and superior electrical conductivity.
Buy Cannon MS3106E18-1P now and experience unmatched reliability and performance for industrial and aerospace electrical connections.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MS3106E181P?
You can click on the BUY or RFQ button to purchase MS3106E181P from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MS3106E181P?
You can download the MS3106E181P datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MS3106E181P?
AMPHENOL INDUSTRIAL
