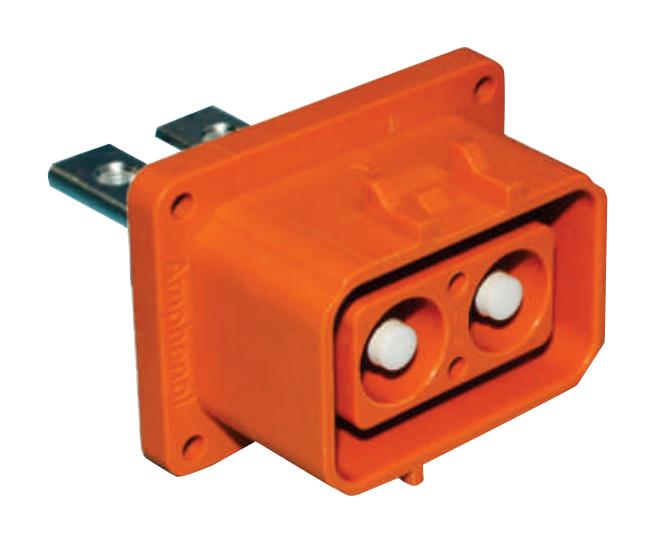

AMPHENOL INDUSTRIAL ELRA2Y0311 Power Connector
The ePower-Lite connector series offers lightweight, high-current, compact power connections ideal for hybrid electric vehicles, heavy equipment, and energy storage. Equipped with patented RADSOK® technology, these connectors deliver up to 120A with minimal voltage drop and lower contact resistance, ensuring efficiency and durability. Available in 2-pole, 3-pole, and 4-pole configurations, they feature EMI shielding, HVIL (High Voltage Interlock Loop), IP67/IP69k ratings when mated, and operate in temperatures from -40°C to 125°C. These robust, field-repairable connectors meet UL94V-0 flammability standards, making them suitable for demanding industrial and automotive applications.
AMPHENOL INDUSTRIAL ELRA2Y0311 Power Connector Specifications:
- Current capacity: Up to 120A with 5.7mm version, 70A with 3.6mm version
- Voltage rating: 600V AC or 800V DC
- Ingress Protection: IP67 and IP69k when mated
- Operating temperature: -40°C to 125°C
- Connector types: 2-pole, 3-pole, 4-pole
- Flammability: UL 94V-0
- Contact test voltage: 2500V AC (Sea level)
- Durability: Minimum 100 mating cycles
- Material: High-quality plastics with EMI shielding
- Termination: Crimp
- Size: 3.6mm and 5.7mm variants
- Features: HVIL (High Voltage Interlock Loop), secondary lock, quick lock, push-to-release, keyway design
- Standards: RoHS compliant, IP rated, UL recognized
Buy the Buy Amphenol ePower-Lite Part Number ELRA2Y0311 Online
Enhance your electric vehicle or heavy equipment system with the high-current, lightweight, and durable ePower-Lite power connectors. Featuring patented RADSOK® technology, these connectors provide up to 120A, lower voltage drop, low mating forces, and robust IP67/IP69k sealing when mated. Designed for harsh environments, they operate safely from -40°C to 125°C and are field-repairable for convenience. Their compact, lightweight structure, combined with EMI shielding and HVIL, makes them the ideal choice for automotive, energy storage, and industrial power applications. Order online today for reliable performance and easy installation.
Buy Amphenol ePower-Lite ELRA2Y0311 now and experience unmatched reliability, high current capacity, and robust design for demanding automotive and industrial applications.
