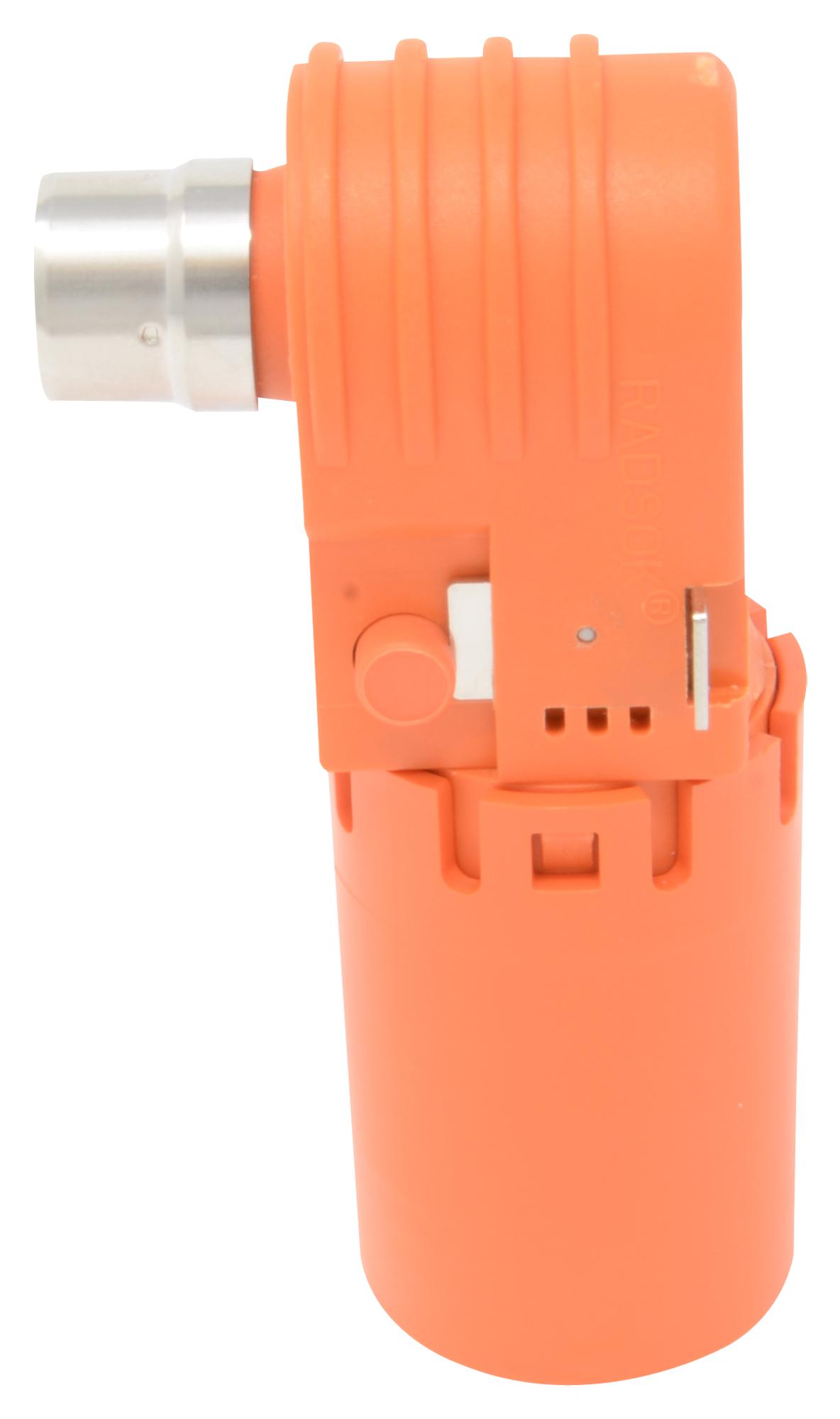

AMPHENOL INDUSTRIAL SLPPB70BSO0EH Electrical Connectors
The SurLok Plus™ compression lugs from Amphenol Industrial are highly reliable, environmentally sealed, and field-installable connectors designed for secure and efficient electrical connections. These robust lugs incorporate the latest R4 RADSOK® technology, offering rapid mating, compact size, and ease of installation without the need for specialized torque tools. They feature a secondary locking system, quick lock, and press-to-release design, ensuring secure connections and quick maintenance. Available in various shell types, colors, and contact sizes, they support applications including electric vehicles (EV/HEV), battery management systems, energy storage, rail transit, process automation, medical equipment, and heavy machinery. They include options with EMI shielding and HVIL functions, are touch-proof, IP67 sealed variants, rated for up to 400A current, 1000VAC/DC voltage, with temperature range from -40°C to 125°C. The connectors meet UL94 V-0 flammability standards and are available with or without backshells, with keyway designs to prevent incorrect mating.
AMPHENOL INDUSTRIAL SLPPB70BSO0EH Electrical Connectors Specifications:
- Current Rating: Up to 400A
- Operating Voltage: 1000VAC/DC
- Operating Temperature: -40°C to 125°C
- Protection: IP67 sealed, touch-proof
- Flammability: UL 94 V-0
- Contact Size: 8.0mm (200A), 10.3mm (350A), 12.5mm (400A)
- Size Options: 35mm, 50mm, 70mm variants
- Locking System: Spring Locking, secondary lock, press-to-release
- Mounting: Right angle or straight plug options
- Application: Electric vehicles, BMS, energy storage, rail transit, automation, heavy equipment, medical
- Features: EMI shielding, HVIL functions, keyway designs, with or without backshells
Buy the Amphenol Series SurLok Plus EMI Connectors: SLPPB70BSO0EH
Purchase Amphenol SurLok Plus EMI connectors online today to ensure your electrical systems are highly reliable, environmentally sealed, and easy to install. Featuring RADSOK® high-current technology, these connectors support up to 400A and 1000VAC/DC. They are IP67 sealed, touch-proof, and designed for demanding industrial, mobility, and automation applications. Their quick lock and press-to-release features allow for fast, secure connections, reducing installation time. Available with EMI shielding and various keyway options, these connectors are perfect for BMS, energy storage, rail transit, and heavy machinery, ensuring safety and durability in your projects.
Buy Amphenol SurLok Plus EMI connectors now and experience unmatched reliability and performance for your industrial and EV applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL SLPPB70BSO0EH?
You can click on the BUY or RFQ button to purchase SLPPB70BSO0EH from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part SLPPB70BSO0EH?
You can download the SLPPB70BSO0EH datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of SLPPB70BSO0EH?
AMPHENOL INDUSTRIAL
