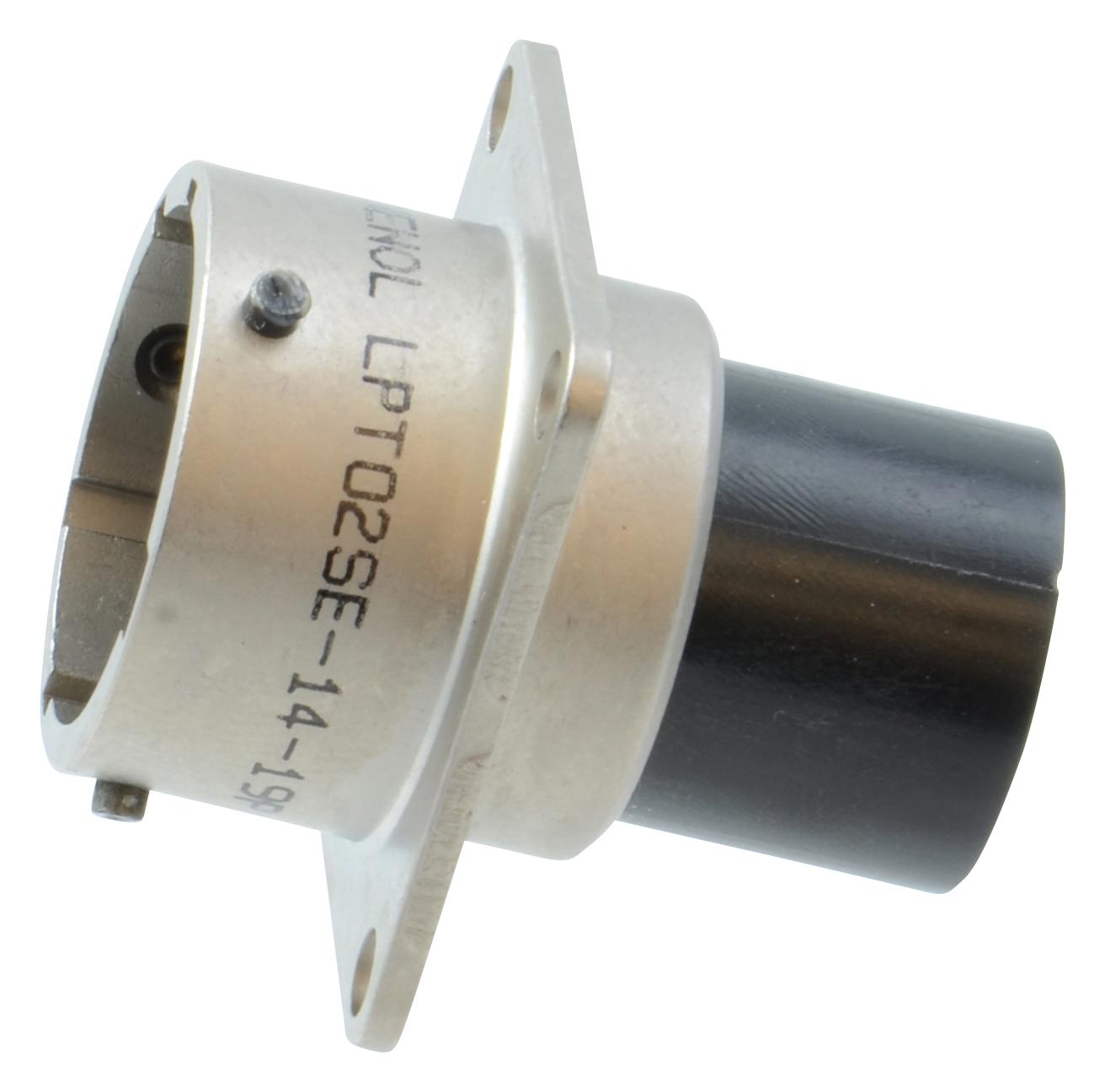

AMPHENOL INDUSTRIAL LPT02SE124P072LC industrial connector
The Amphenol LPT Series connector is a lightweight, aluminum shell connector based on MIL-C-26482 Series I and the original PT series. It features a standard PT shell with a coupling nut, making it compatible with PT series connectors. The connector includes three retention tines with stamped and formed crimp contacts that facilitate easy insertion and secure retention. It accepts wire gauges from 22 AWG (0.34 mm²) to 12 AWG (3.5 mm²). The LPT Series offers quick, positive coupling with a 5-key/keyway design to prevent mismating during connector mating. Available in five shell styles: box mounting receptacle, jam nut receptacle, straight plug, wall mounting receptacle, and cable connecting receptacle, suitable for various industrial applications.
AMPHENOL INDUSTRIAL LPT02SE124P072LC industrial connector Specifications:
- Shell Material: Aluminum
- Insert Material: Plastic
- Material: Copper alloy
- Contact Plating: Tin/Nickel/Gold plated
- Termination: Crimp
- Temperature Range: -40°C to +125°C
- Ingress Protection: IP67 & IP69K in mated condition
- Current Rating: 7.5A (20# contact), 13A (16# contact), 23A/35A (12# contact with RADSOK)
- Operating Voltage: 500V (max)
- Test Voltage AC: 2300V
- Mating Cycles: 500 Cycles
- Shell Styles: Box mounting, Jam nut, Straight plug, Wall mounting, Cable connecting
- Connectors Finishes: Black zinc, Nickel, Gray zinc nickel
- Connector Sizes: #8 to #24
- Keying: 5 key/keyway system
- Ingress Protection: Up to IP67 and IP69K
Buy the Buy Amphenol LPT Series Part Number LPT02SE124P072LC Online
Experience unmatched durability and easy installation with the Amphenol LPT Series industrial connector. Designed for harsh environment applications, it features a lightweight aluminum shell, multiple shell styles, and high ingress protection up to IP69K. Compatible with MIL-C-26482 standards, it offers quick bayonet coupling, secure crimp contact termination, and excellent shock and vibration resistance. Suitable for factory automation, energy storage, and heavy equipment, this connector guarantees reliable electrical connections in demanding industrial and harsh outdoor environments. Purchase online today for trusted performance.
Get Amphenol LPT02SE124P072LC today—built for durability and reliable performance in harsh environments.
