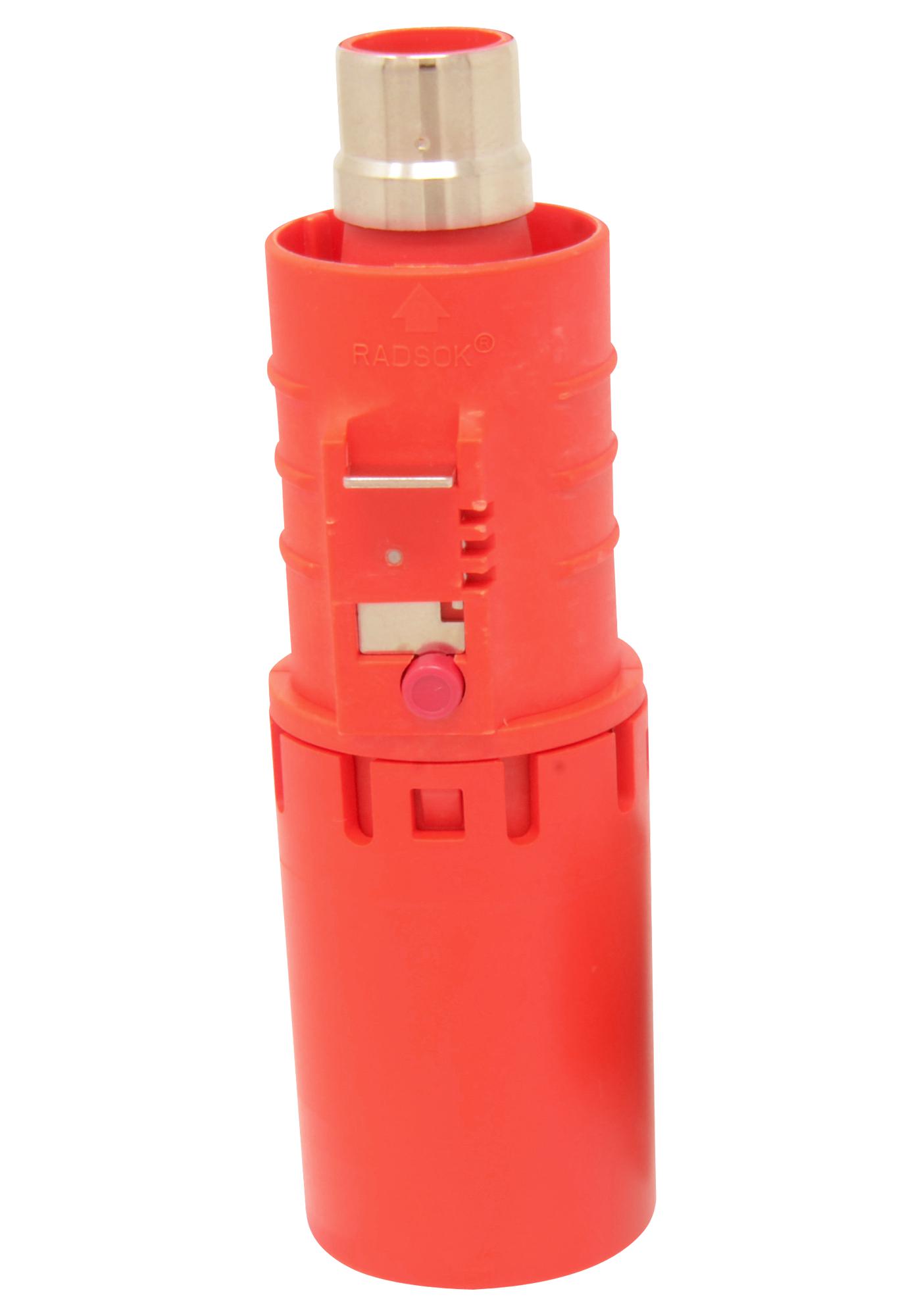

AMPHENOL INDUSTRIAL SLPIPB35BSR2EH Compression Lug
The SurLok Plus™ compression lugs from Amphenol Industrial are field-installable, highly reliable, and environmentally sealed for diverse applications including electric vehicles, energy storage, and heavy machinery. Featuring the latest R4 RADSOK® technology, these compact lugs with secondary locking, quick lock, and press-to-release design ensure efficient installation without specialized tools. They support various contact sizes from 5.7mm (120A) to 10.3mm (350A), with options for EMI shielding, HVIL function, and IP67 sealing, operating effectively from -40°C to 125°C across multiple connector types and color variants.
AMPHENOL INDUSTRIAL SLPIPB35BSR2EH Compression Lug Specifications:
- Flammability: UL 94 V-0
- Current Ratings: 120A at 5.7mm, 200A at 8mm, 350A at 10.3mm
- Voltage Rating: Up to 1000VAC/DC
- Operating Temperature: -40°C to 125°C
- Contact Sizes: 5.7mm, 8mm, 10.3mm
- Sealing: IP67 environmental seal
- Features: Secondary locking, quick lock, press-to-release, EMI shielding, HVIL function
- Connector Types: Right angle plug, straight plug, straight receptacle
- Color Options: Orange, black, red
- Max Wire Size: Up to 95mm²
- Locking: Spring locking system
- Support: Screw, busbar, crimp termination
- Keyway: 60°, 90°, 120°, 150°, 180°, 270°
- Temperature Range: -40°C to 125°C
Buy the Amphenol Series SurLok Plus EMI Connector: SLPIPB35BSR2EH
Purchase the Amphenol SurLok Plus™ compression lug online today for reliable, sealed electrical connections in electric vehicles, automation, and heavy equipment. Designed with the latest R4 RADSOK® technology, these compact lugs provide efficient installation with secondary locking, quick lock, and press-to-release features. They support a range of contact sizes from 5.7mm to 10.3mm, operate in temperatures from -40°C to 125°C, and include EMI shielding, HVIL functions, and IP67 sealing. Available in multiple connector types and colors, ensuring flexible, durable, and high-performance connections for demanding industrial applications.
Order your Amphenol Series SurLok Plus™ compression lug today and give your heavy machinery and energy storage projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL SLPIPB35BSR2EH?
You can click on the BUY or RFQ button to purchase SLPIPB35BSR2EH from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part SLPIPB35BSR2EH?
You can download the SLPIPB35BSR2EH datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of SLPIPB35BSR2EH?
AMPHENOL INDUSTRIAL
