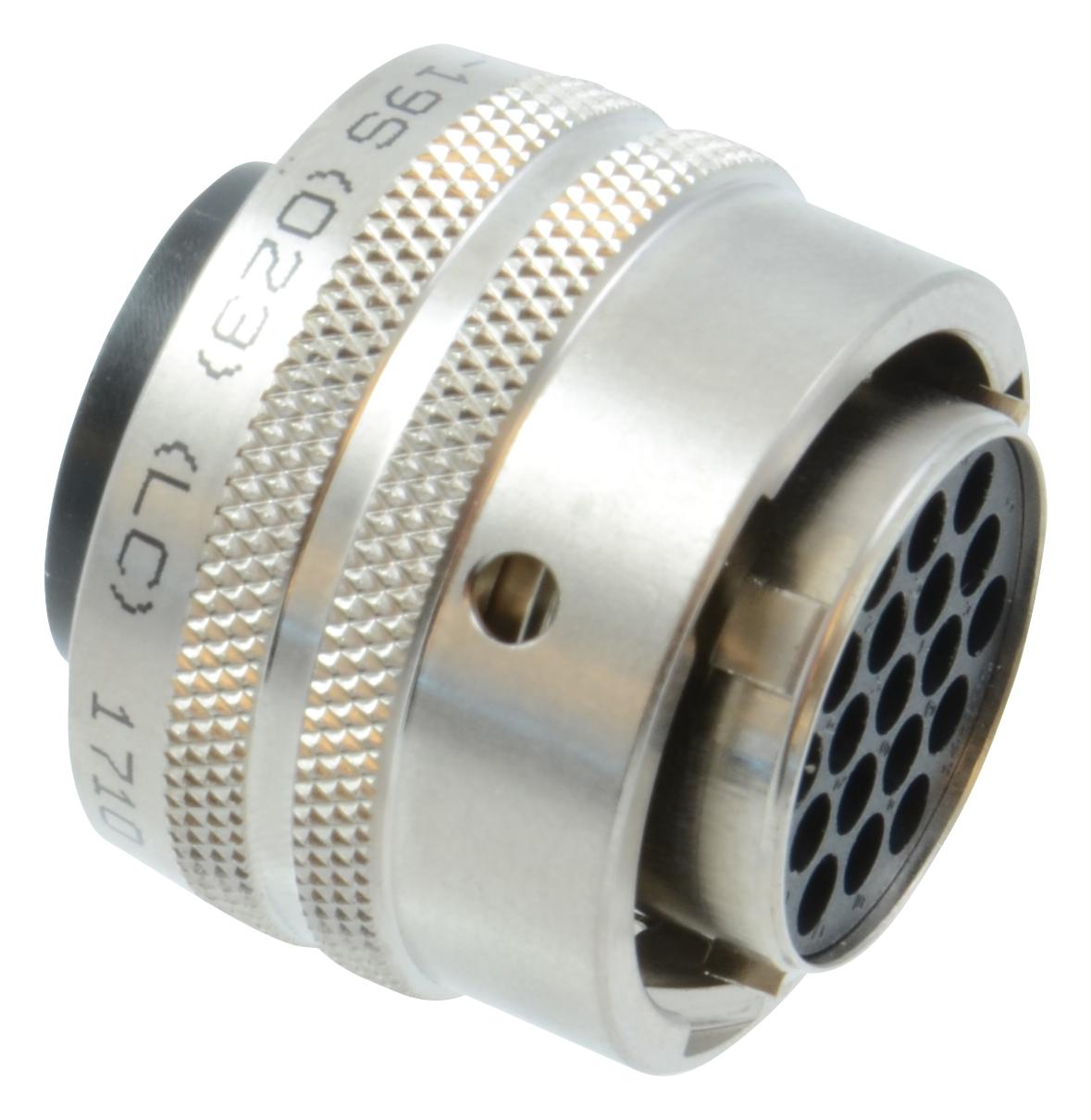

AMPHENOL INDUSTRIAL LPT06SE106S023LC LPT Series Connector
The Amphenol Industrial LPT Series is a lightweight, aluminum-shell connector based on MIL-C-26482 Series I and the original PT series. It features a standard PT shell with a coupling nut, making it compatible with the PT series. The connector includes three retention tines with stamped and formed crimp contacts for easy insertion and secure retention. It supports wire gauges from 22 AWG (0.34mm²) to 12 AWG (3.5mm²) and offers quick, positive coupling with a 5-key/keyway system to prevent mismating. Available in five shell styles—box mounting receptacle, jam nut receptacle, straight plug, wall mounting receptacle, and cable connecting receptacle—this connector is suitable for various applications including automation & process control, commercial vehicles, energy, industrial automation, instrumentation, and power management.
AMPHENOL INDUSTRIAL LPT06SE106S023LC LPT Series Connector Specifications:
- Shell Material: Aluminum
- Insert Material: Plastic
- Contact Material: Copper alloy
- Contact Plating: Tin/Nickel/Gold plated
- Termination: Crimp
- Temperature Range: -40°C to +125°C
- Ingress Protection: IP67 & IP69K (mated)
- Current Rating: 7.5A (20# contact), 13A (16# contact), 23A/35A with RADSOK® (12# contact)
- Operating Voltage: Up to 500V
- Test Voltage AC: 2300V
- Mating Cycles: 500 Cycles
- Shell Styles: Box mounting, jam nut, straight plug, wall mounting, cable connecting
- Shell Finishes: Black zinc (RoHS), Nickel (RoHS), Gray zinc nickel (RoHS)
- Operating Temperature: -40°C to 125°C
- Ingress Protection: IP67 & IP69K when mated
- Connectors support wire gauges from 22 AWG to 12 AWG, with high shock and vibration resistance
Buy the Buy Amphenol LPT Series Part Number LPT06SE106S023LC Online
Order the Amphenol LPT Series connector online today to enjoy hassle-free purchase, fast delivery, and trusted quality. Designed for demanding industrial, automation, energy, and transportation applications, this lightweight aluminum connector supports wire gauges from 22 to 12 AWG with IP67 & IP69K protection when mated. Its quick bayonet coupling system ensures secure, positive connections with high shock and vibration resistance, making it ideal for harsh environments. Compatible with MIL-C-26482 and PT series, it offers versatile mounting options including box, jam nut, wall, and cable connecting styles, providing dependable performance across diverse industrial needs.
Get Amphenol LPT06SE106S023LC today—built for high durability, quick coupling, and reliable performance in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL LPT06SE106S023LC?
You can click on the BUY or RFQ button to purchase LPT06SE106S023LC from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part LPT06SE106S023LC?
You can download the LPT06SE106S023LC datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of LPT06SE106S023LC?
AMPHENOL INDUSTRIAL
