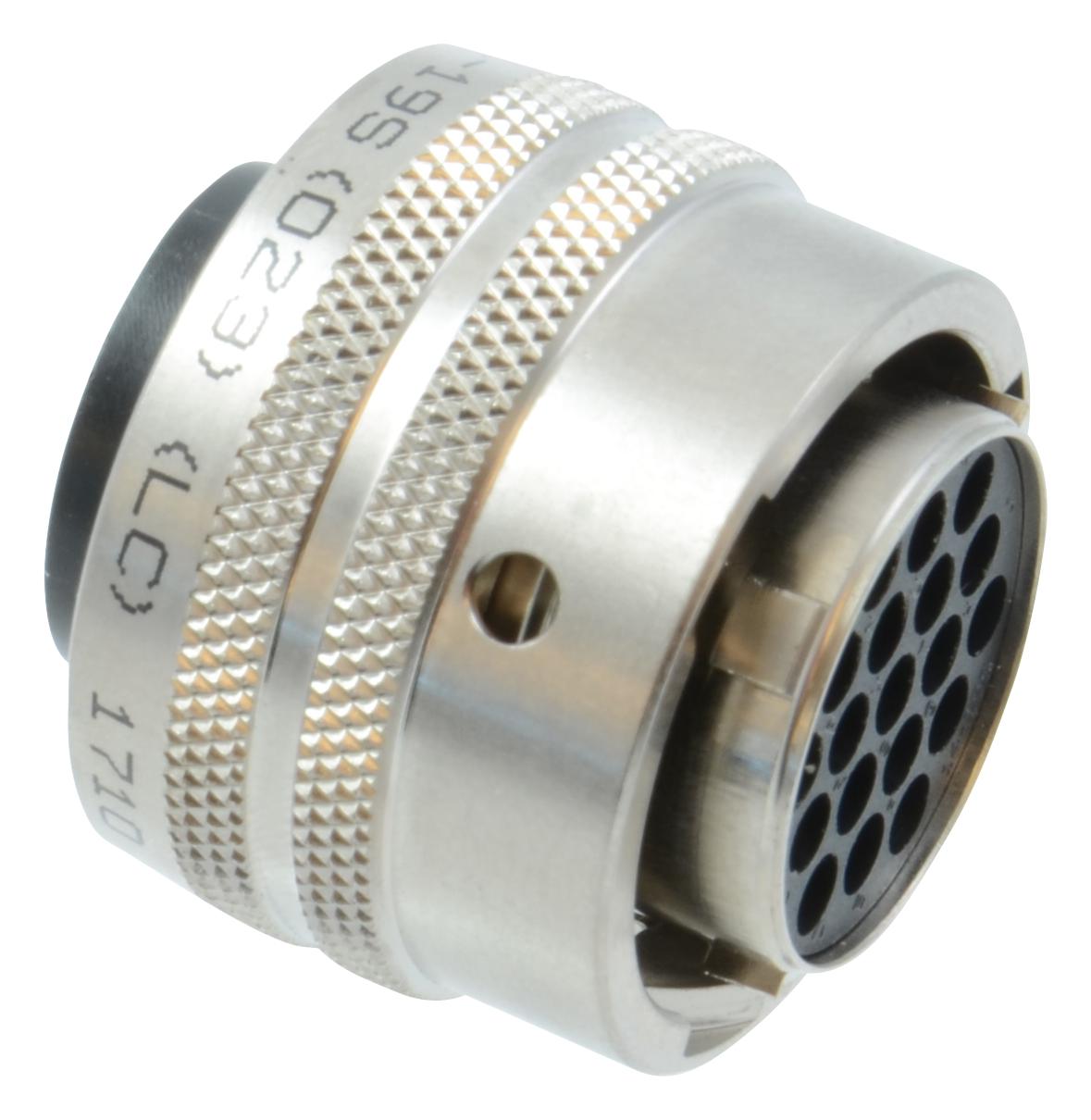

AMPHENOL INDUSTRIAL LPT06SE128S072LC LPT Series Connectors
The Amphenol LPT Series is a lightweight, rugged connector designed based on the MIL-C-26482 Series I standard and the original PT series. It features an aluminum shell with a standard PT-style coupling nut, making it compatible and interchangeable with PT series connectors. The connector includes three retention tines with stamped and formed crimp contacts for secure wire attachment, supporting wire gauges from 22 AWG (0.34mm²) up to 12 AWG (3.5mm²). Its quick positive coupling and five key/keyway system help prevent mismating during connection. Available in five shell styles—such as box mounting, jam nut, straight plug, wall mounting, and cable connecting receptacles—it is suitable for applications in automation, process control, commercial vehicles, energy, industrial automation, instrumentation, and power management.
AMPHENOL INDUSTRIAL LPT06SE128S072LC LPT Series Connectors Specifications:
- Shell Material: Aluminum
- Insert Material: Plastic
- Contact Plating: Tin/Nickel/Gold plated
- Temperature Range: -40°C to +125°C
- Ingress Protection: IP67 & IP69K in mated condition
- Current Ratings: 7.5A (20#), 13A (16#), 23A/35A (12# with RADSOK)
- Operating Voltage: 500V (T#), 1500V (I#), 2300V (Test Voltage AC)
- Mating Cycles: 500
- Shell Styles: Box mounting, jam nut, straight plug, wall mounting, cable connecting
- Shell Sizes: #8 to #24
- Connectors Finishes: Black zinc, Nickle, Gray zinc nickel
- Suitable for harsh environment applications, high shock and vibration resistance, high density inserts, high power, medium to high voltage.
Buy the Amphenol Series LPT: Connector #06SE128S072LC
Purchase the Amphenol LPT Series connector today for reliable, high-performance interconnect solutions designed for harsh environments. Featuring an aluminum shell and stamped crimp contacts, this lightweight yet rugged connector offers quick bayonet coupling and secure connections. Available in multiple styles, including box mounting, jam nut, and straight plug, it supports wire gauges from 22 AWG to 12 AWG. The high ingress protection up to IP69K, operating temperature from -40°C to 125°C, and robust shock and vibration resistance make it ideal for industrial automation, energy systems, and heavy-duty machinery. Buy online now for fast delivery and trusted quality.
Get Amphenol LPT06SE128S072LC today—built for precision, durability, and high-current industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL LPT06SE128S072LC?
You can click on the BUY or RFQ button to purchase LPT06SE128S072LC from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part LPT06SE128S072LC?
You can download the LPT06SE128S072LC datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of LPT06SE128S072LC?
AMPHENOL INDUSTRIAL
