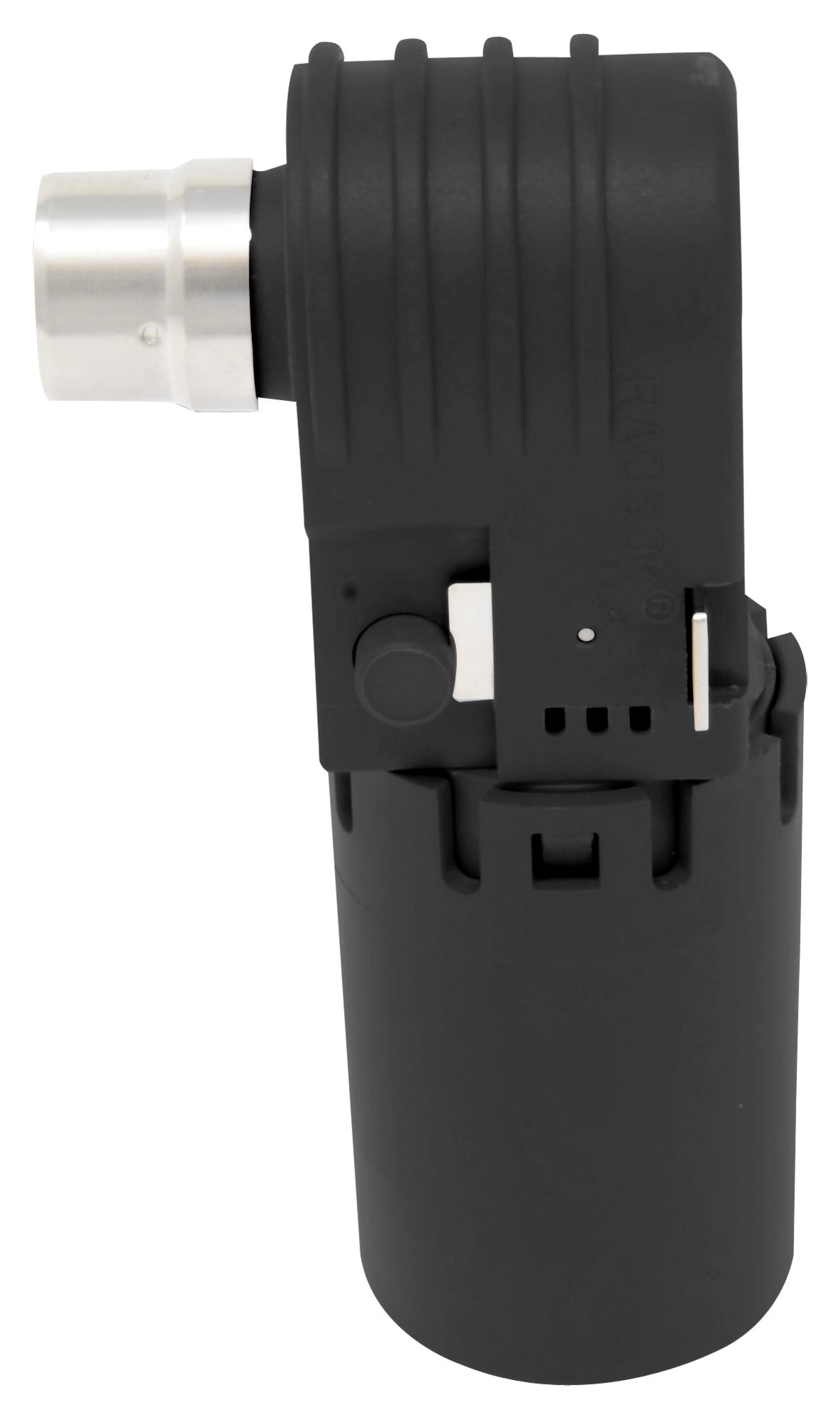

AMPHENOL INDUSTRIAL SLPPB35BSB3EH Electrical Connector
The SurLok Plus™ compression lugs from Amphenol Industrial are field-installable, highly reliable electrical connectors designed for ease of use and durability. These environmentally sealed lugs feature a compact design with a secondary locking system, quick lock, and press-to-release functionality. Incorporating the latest R4 RADSOK® technology, they enable quick mating and robust connections without the need for specialized torque tools, thanks to industry-standard crimp, screw, and busbar termination options. Suitable for demanding applications such as electric vehicles (EV/HEV), battery management systems (BMS), energy storage, rail transportation, process automation, medical devices, and heavy equipment, these lugs are available in multiple shell types (right angle plug, straight plug, straight receptacle), connector colors (orange, black, red), and contact sizes (5.7mm for 120A, 8mm for 200A, 10.3mm for 350A). They offer EMI shielding and HVIL functions, with options for touch-proof, IP67 sealed, and non-sealed variants. Keyway designs prevent incorrect mating at angles of 60°, 90°, 120°, 150°, 180°, or 270°. They support up to 400A current, 1000VAC/DC voltage ratings, and accommodate wire gauges up to 95mm². The flammability rating complies with UL94 V-0 standards. Available with or without backshells, these connectors operate in temperatures from -40°C to 125°C.
AMPHENOL INDUSTRIAL SLPPB35BSB3EH Electrical Connector Specifications:
- Current Rating: Up to 400A
- Operating Voltage: 1000V AC/DC
- Operating Temp: -40°C to 125°C
- Contact Size: 8.0mm (200A), 10.3mm (350A), 5.7mm (120A)
- IP Rating: IP67
- Flammability: UL 94 V-0
- Sizes: 35mm?, 50mm?, 70mm?
- Locking: Spring Locking
- Connection Options: Crimp, screw, busbar
- Shell Types: Right angle plug, straight plug, straight receptacle
- Color Options: Orange, black, red
- Shockproof: Yes, EMI shielding, HVIL
- Keyway Angles: 60°, 90°, 120°, 150°, 180°, 270°
- Material: High tensile strength metal
Buy the Amphenol Series SurLok Plus Electrical Connectors: SLPPB35BSB3EH
Purchase the Amphenol SurLok Plus electrical connector online today to ensure robust, highly reliable connections for electric vehicles, energy storage systems, industrial automation, and heavy equipment. Designed for quick, secure installation without special tools, these field-installable, environmentally sealed lugs support up to 400A current and 1000V AC/DC ratings. With multiple shell types, color options, and keyways to prevent incorrect mating, they meet UL94 V-0 flammability standards and operate effectively in temperatures from -40°C to 125°C. Boost your project’s reliability by ordering now!
Buy Amphenol SurLok Plus electrical connector with high current capacity and IP67 sealing now and experience unmatched reliability and performance in demanding environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL SLPPB35BSB3EH?
You can click on the BUY or RFQ button to purchase SLPPB35BSB3EH from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part SLPPB35BSB3EH?
You can download the SLPPB35BSB3EH datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of SLPPB35BSB3EH?
AMPHENOL INDUSTRIAL
