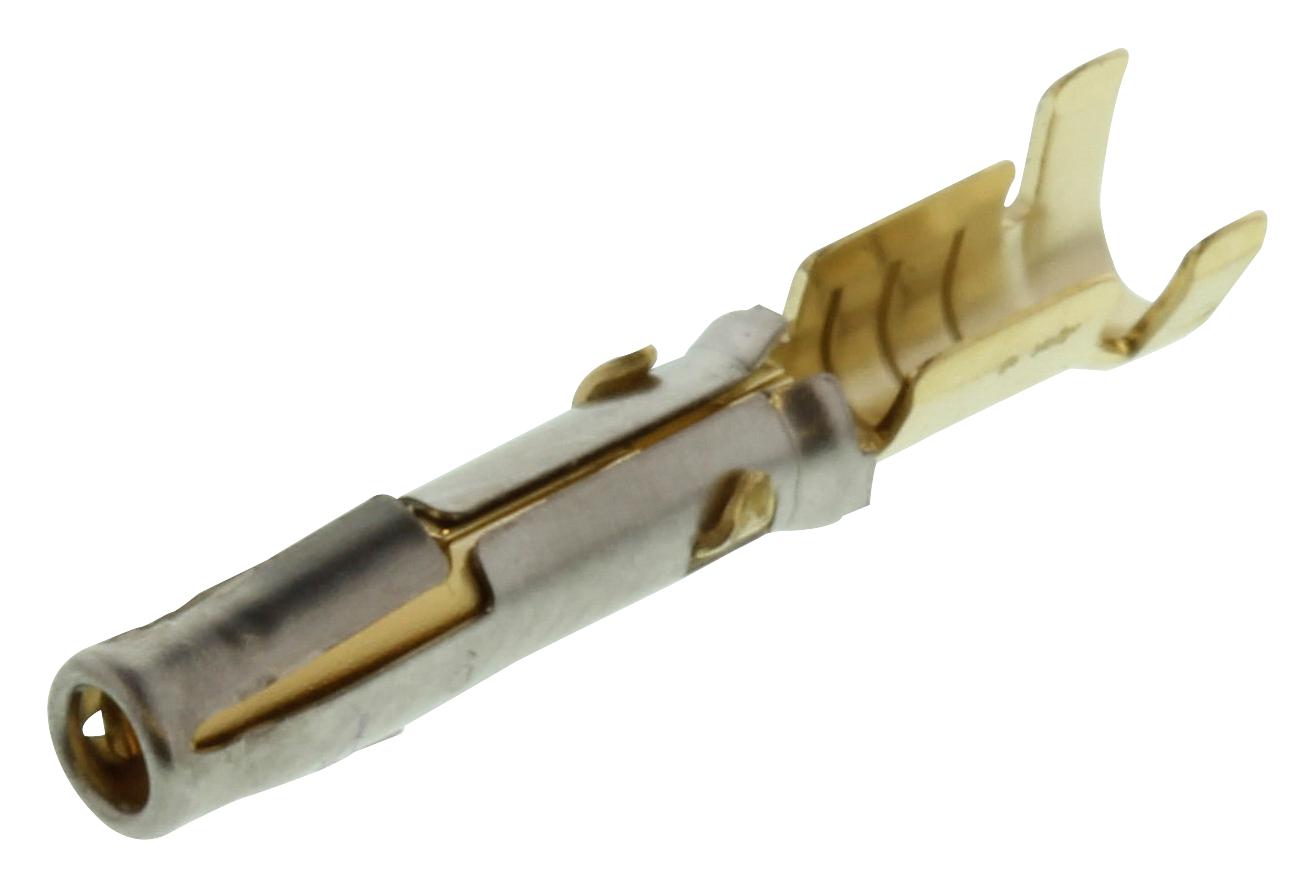

AMPHENOL INDUSTRIAL LPTCSF20S201 Industrial Connectors
The Amphenol LPT Series connector is a lightweight, aluminum shell connector based on the MIL-C-26482 Series I and original PT series. It features a standard PT shell with a coupling nut, making it intermateable with the PT series. The connector includes three retention tines with stamped and formed crimp contacts, allowing for easy insertion and secure retention. It accepts wire gauges ranging from 22 AWG (0.34 mm²) to 12 AWG (3.5 mm²). Designed for quick and positive coupling with a 5-key/keyway configuration, it helps prevent mismating when connecting to a receptacle. The LPT Series is available in five shell styles, including box mounting receptacle, jam nut receptacle, straight plug, wall mounting receptacle, and cable connecting receptacle, making it suitable for various industrial and automation applications.
AMPHENOL INDUSTRIAL LPTCSF20S201 Industrial Connectors Specifications:
- Shell Material: Aluminum
- Insert Material: Plastic
- Contact Plating: Tin/Nickel/Gold plated
- Operating Temperature Range: -40°C to +125°C
- Ingress Protection: IP67 & IP69K in mated condition
- Current Rating: 20# contact 7.5A, 16# contact 13A, 12# contact 23A/35A with RADSOK
- Rated Voltage: 500V (operating), 1500V (test), 2300V (test AC)
- Mating Cycles: 500 cycles
- Shell Styles: Box mounting, jam nut, straight plug, wall mounting, cable connecting
- Insert Rotation: W, X, Y, Z available for alternate positioning
- Contact Size Range: 22-20 (0.34-0.50mm²), 16-18 (0.75-1.50mm), 12-14 (2.00-3.50mm²)
- Connector Finishes: Black zinc (RoHS), Nickel (RoHS), Gray zinc nickel (RoHS)
Buy the Amphenol LPT – Reliable Industrial Connectors for Automation Applications
Order the Amphenol LPT Series connector online today to experience high-quality, durable, and versatile industrial connector solutions. Perfect for automation, instrumentation, and high-vibration environments, this connector provides reliable connections with various mounting options and keying features. Manufactured with lightweight aluminum shells and plated contacts, it ensures optimal electrical performance and environmental resistance. With multiple styles such as box mounting, jam nut, and straight plug, it adapts seamlessly to different industrial setups. Enjoy fast shipping and excellent customer support when purchasing online.
Get Amphenol LPT Series connector today—built for high durability and quick, secure connections in industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL LPTCSF20S201?
You can click on the BUY or RFQ button to purchase LPTCSF20S201 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part LPTCSF20S201?
You can download the LPTCSF20S201 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of LPTCSF20S201?
AMPHENOL INDUSTRIAL
