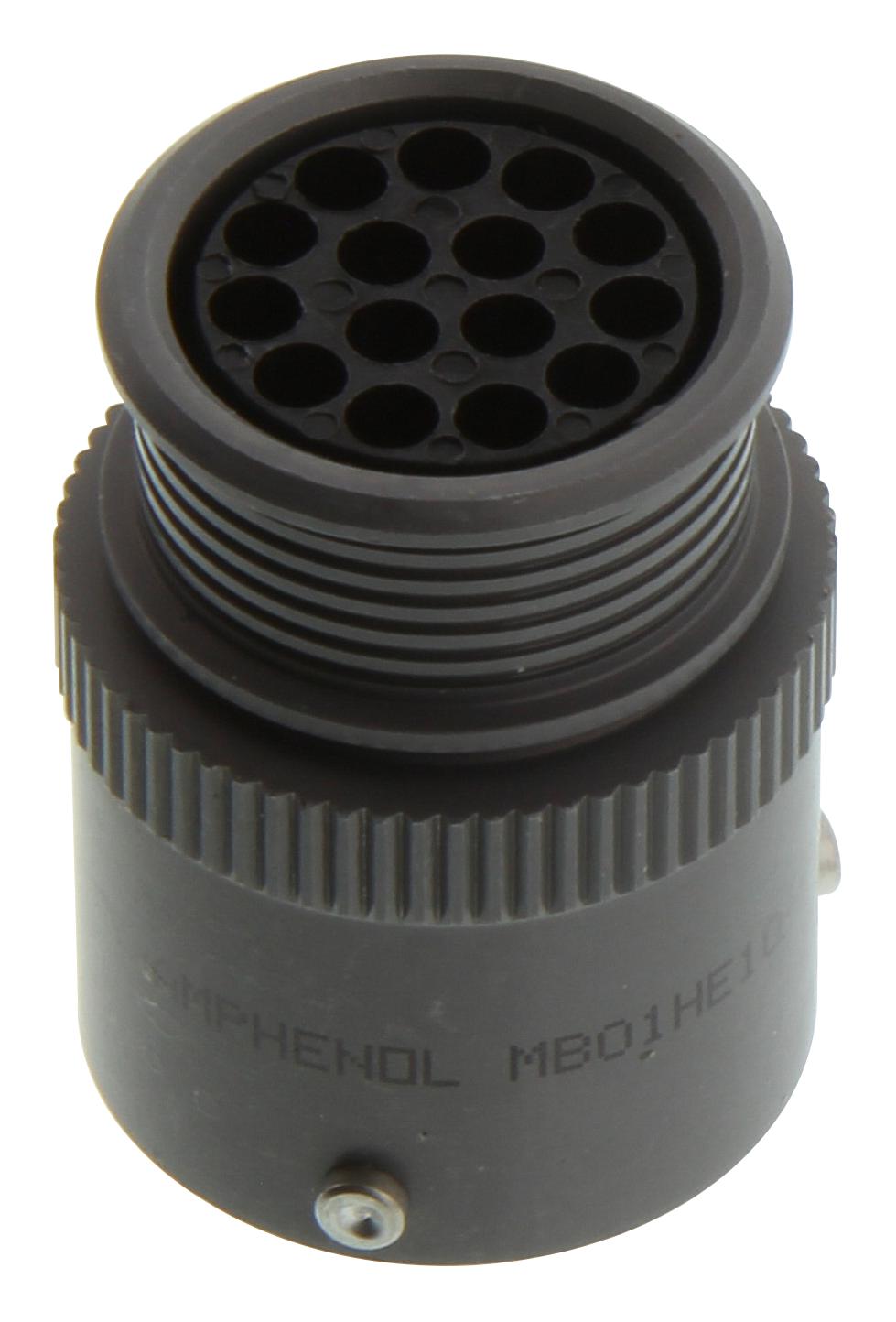

AMPHENOL INDUSTRIAL MB01HE1015PN072 Micro-B Connector
The Micro-B Series Connectors and Contacts by Amphenol are designed for modern electrical equipment, offering a compact, lightweight solution with high-density insert patterns and exceptional EMI shielding through shell-to-shell electrical contact. These rugged connectors are ideal for industrial applications requiring reliable electrical performance at an affordable price. Features include high mating cycle durability, a robust triple bayonet (quarter turn) coupling mechanism made from aluminum, stamped and formed contacts, and an internal EMI grounding spring for superior conductivity. Multiple mounting options such as inline and two-hole flange mounts are available. Suitable for automotive systems, factory automation, industrial, instrumentation, robotics, security, telecommunications, and test & measurement applications.
AMPHENOL INDUSTRIAL MB01HE1015PN072 Micro-B Connector Specifications:
- Shell Material: Aluminum
- Contact Material: Copper Alloy
- Contact Plating: Tin/Gold Plated
- Ingress Protection: IP67 with cable gland, IP54 with heat shrink
- Operating Temperature Range: -40°C to 125°C
- Mating Cycles: 500
- Voltage Rating: AC 250V RMS
- Test Voltage: AC 500V RMS
- Insulation Resistance: 1000 MΩ Min at 500V
- Contact Resistance: 22 mΩ Max
- Wave Ring: Stainless Steel
- EMI Ring: Copper Alloy
- Retaining Ring: Stainless Steel
- Wave Ring Material: Stainless Steel
- Insert Material: Plastic PA66
- Mechanical Features: Triple bayonet coupling, stamped contacts
- Mounting Options: Inline, 2-hole flange
- Operating Temp: -40°C to 125°C
- Shell Sizes: 08, 09, 10
- Protection Level: Up to IP67 in mated condition with cable gland
Buy the Amphenol MB01HE1015PN072 – Reliable Industrial Connectors for Harsh Environments
Purchase the Amphenol Micro-B Connector online today for use in industrial automation, robotics, and harsh environment settings. Designed for high reliability, this lightweight connector features a quarter turn bayonet coupling for quick mating, high-density insert patterns, and robust aluminum shells with IP67/IP54 protection levels. Its stamped and formed contacts ensure easy cable assembly and long-lasting performance. Ideal for telecommunications, electric vehicles, security systems, and test equipment, this connector combines durability, compactness, and cost-effectiveness to meet modern industrial needs efficiently.
Get Amphenol Micro-B connectors today—built for high cycle durability, superior EMI shielding, and versatile mounting options for industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MB01HE1015PN072?
You can click on the BUY or RFQ button to purchase MB01HE1015PN072 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MB01HE1015PN072?
You can download the MB01HE1015PN072 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MB01HE1015PN072?
AMPHENOL INDUSTRIAL
