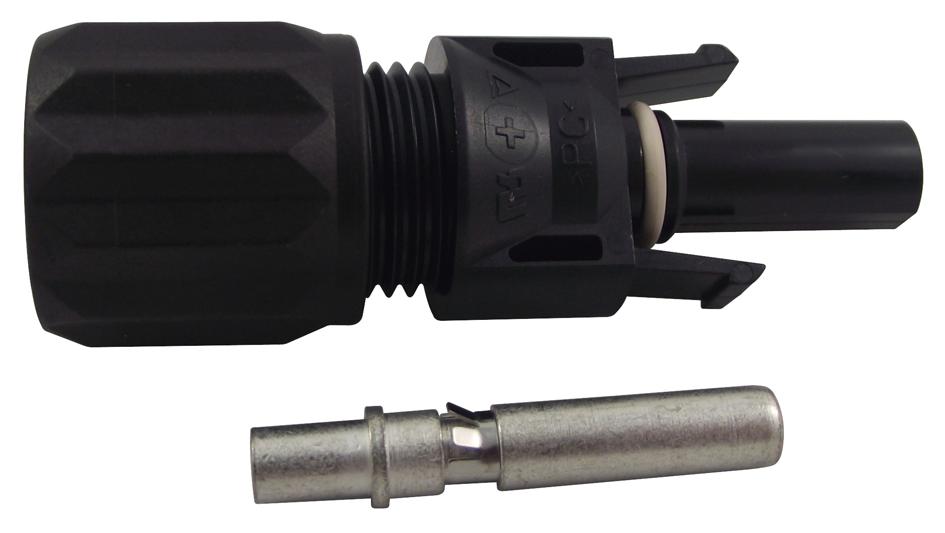

AMPHENOL INDUSTRIAL H4CFC4DI PV Connector
The H4CFC4DI is an industrial-grade, 4-contact solar connector designed for photovoltaic systems, featuring robust construction, high voltage capacity, and reliable connection. It is suited for outdoor environments with water and dust sealing standards such as IP68, ensuring durability against moisture and pollutants. The connector supports a voltage rating of up to 1000V, with rated current options around 44A to 65A depending on configuration. Crafted from copper with tin plating, it provides excellent electrical conductivity and corrosion resistance, making it ideal for solar panel arrays and related applications.
AMPHENOL INDUSTRIAL H4CFC4DI PV Connector Specifications:
- Connector Type: PV Cable Connector
- Gender: Female
- Number of Contacts: 4
- Cable Size Range: 2.5mm² / 14AWG to 10mm² / 8AWG
- Rated Voltage: 1000V (IEC/UL)
- Rated Current: 44A (6.0mm²/10AWG), 65A (10.0mm²/6AWG)
- Test Voltage: 6kV for 1 minute, 12kV impulse (IEC)
- Contact Resistance: 0.30mΩ (S&F), 0.25mΩ (machined)
- Contact Material: Copper, tin-plated
- Insulation Material: PC (Polycarbonate)
- Locking Mechanism: Snap-lock
- Cable Strain Relief: Compression gland with ratcheting nut
- Protection Degree: IP68
- Safety Class: 0
- Pollution Degree: 2
- Overvoltage Category: Ww
- Flame Class: UL94 V0
- Ambient Temperature Range: -40°C to +90°C
Buy the Buy Amphenol Solar Connector Part Number H4CFC4DI Online
Order the Amphenol H4CFC4DI PV connector today to ensure secure and efficient electrical connections in your solar installations. Designed for high voltage applications up to 1000V with rated currents up to 65A, this connector is constructed from durable copper with tin plating for corrosion resistance. Its IP68 sealing guarantees protection against dust and moisture, ideal for outdoor use. Quick snap-lock mechanism allows easy maintenance and reliable connection. Perfect for photovoltaic systems requiring robust, high-performance connectors for safe and efficient energy transfer.
Buy Amphenol H4CFC4DI now and experience unmatched reliability and performance in solar power systems with robust IP68 sealing and high voltage capacity.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL H4CFC4DI?
You can click on the BUY or RFQ button to purchase H4CFC4DI from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part H4CFC4DI?
You can download the H4CFC4DI datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of H4CFC4DI?
AMPHENOL INDUSTRIAL
