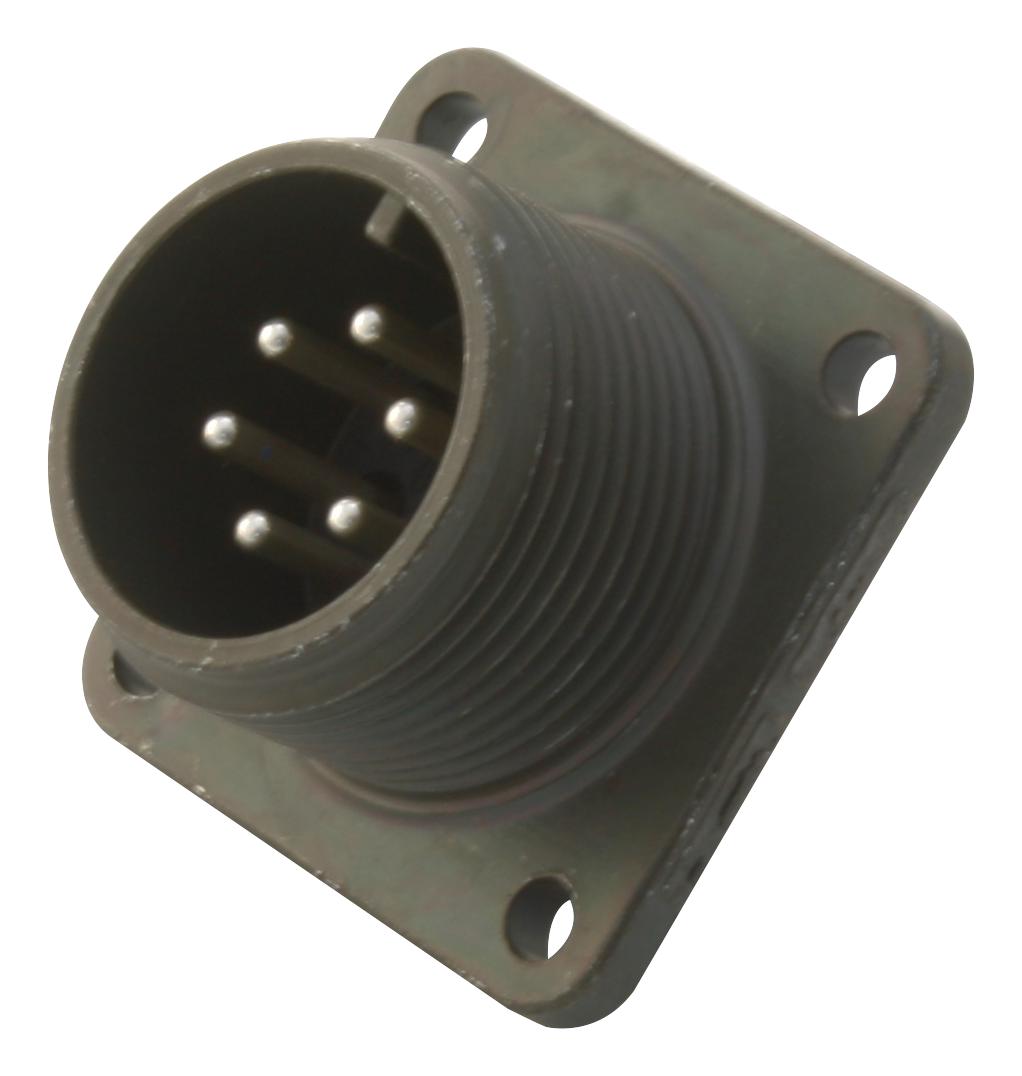

AMPHENOL INDUSTRIAL MS3102E14S6P Circular Military Connector
The MS3102E14S-6P is a military-grade circular connector with six contacts designed for demanding environments. Featuring silver-plated copper contacts and a rugged aluminum alloy shell with cadmium and olive drab chromate coating for corrosion resistance, it offers reliable electrical performance in harsh conditions. The connector has neoprene seals for moisture resistance, high dielectric strength, and vibration durability. With threaded coupling, key and keyway polarization, it ensures secure connections in vibration, moisture, and extreme temperature settings, ideal for military, aerospace, and shipboard applications.
AMPHENOL INDUSTRIAL MS3102E14S6P Circular Military Connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate coating
- Contacts: 6, size 16S, solder cup, copper alloy, silver-plated
- Insulator Resistance: > 1000 MO according to VG95319 and VG95210
- Test Voltage: 1050 Vrms
- Operating Temperature: -55°C to +125°C
- Environmental Resistance: IP65, salt spray resistant for 500 hours
- Mating Cycles: 500 minimum
- Separation Force per Contact: 1.0 N
- Coupling Torque: Closing 3.6 Nm max / Opening 0.35 Nm min
- Wire Stripping: 6.2 mm
- Shell Style: Box mounting receptacle with threaded coupling
- Size: 14S-6, Shell Size 148
- Safety: Mating Cycles and environmental resistance verified
- Protection Class: IP65, suitable for demanding environments
Buy the Cannon Series MIL-C-5015 Circular Connector: MS3102E14S-6P
Purchase the Cannon Series MIL-C-5015 circular connector MS3102E14S-6P online today to benefit from reliable, military-grade performance in harsh environments. Featuring six high-quality solder cup contacts and an aluminum shell with corrosion-resistant coatings, this connector ensures secure electrical connections in demanding applications such as aerospace, military equipment, and shipboard systems. The connector's threaded coupling and keyway polarization provide easy and secure mating, while its environmental sealing and high mating cycle count guarantee durability and longevity. Buy now for superior performance and peace of mind in critical projects.
Order your Cannon Series MIL-C-5015 MS3102E14S-6P today and ensure reliable, durable connections for military, aerospace, and demanding industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MS3102E14S6P?
You can click on the BUY or RFQ button to purchase MS3102E14S6P from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MS3102E14S6P?
You can download the MS3102E14S6P datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MS3102E14S6P?
AMPHENOL INDUSTRIAL
