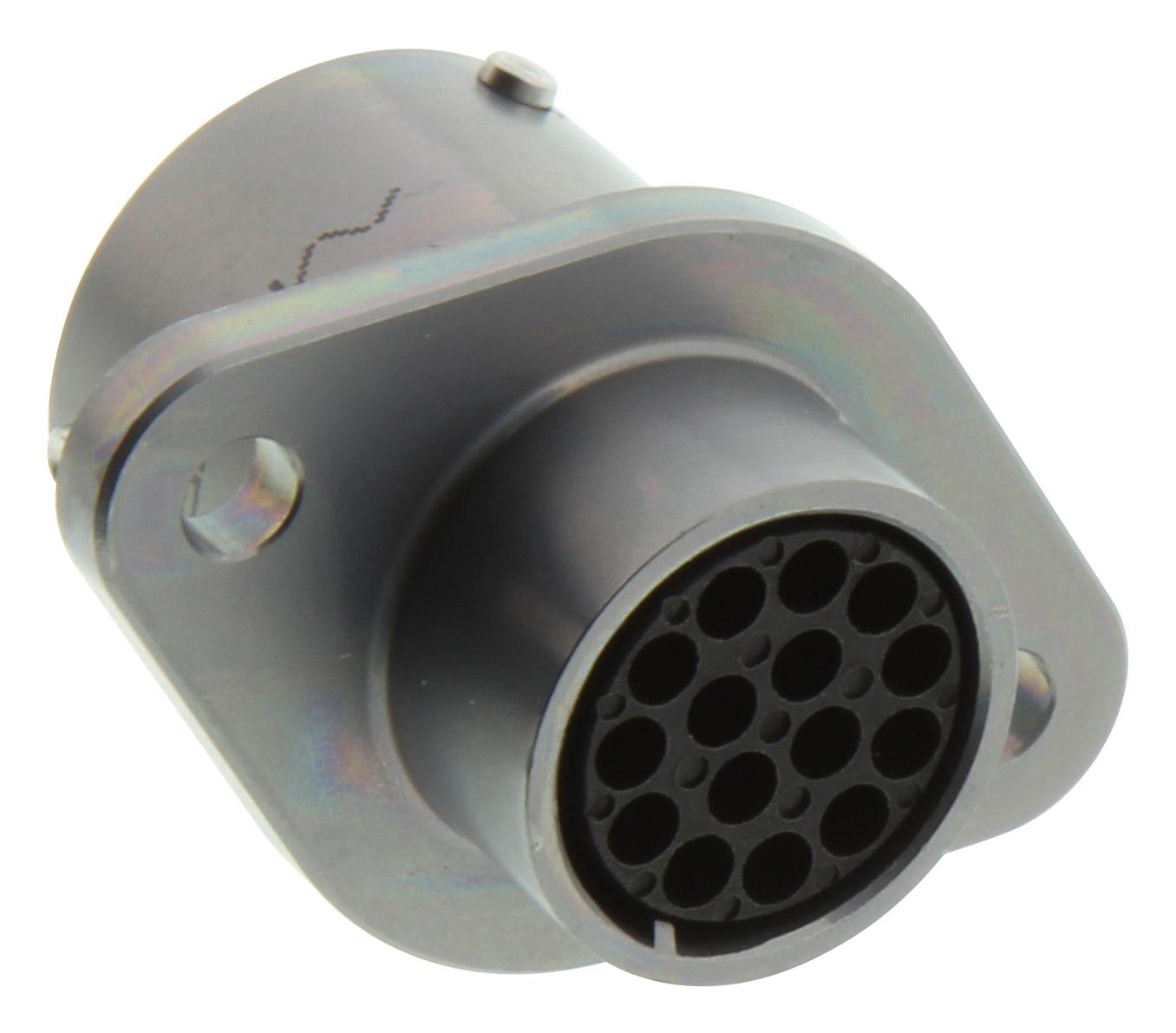

AMPHENOL INDUSTRIAL MB03A1015PN072 Micro-B Connector
Amphenol's Micro-B Series Connectors are compact, durable circular connectors ideal for industrial and automotive applications. Featuring a lightweight aluminum shell, they use a reliable triple bayonet coupling (quarter-turn) for quick mating and enhanced vibrational resistance. The connectors include stamped and formed crimp contacts suitable for high-density PCB mounting, with multiple shell plating options including gray zinc-nickel that withstands salt spray for up to 500 hours. They meet all RoHS requirements and operate within -40°C to 125°C, ensuring high electrical performance in harsh environments. Applications include automation, robotics, telecommunications, security, and instrumentation systems, offering high mating cycles, excellent EMI shielding, and IP67 protection with backshell and cable gland options.
AMPHENOL INDUSTRIAL MB03A1015PN072 Micro-B Connector Specifications:
- Shell Material: Aluminum
- Contact Plating: Tin/Gold Plated
- Operating Temperature Range: -40°C to 125°C
- Ingress Protection: IP54 (with heat shrink), IP67 (with backshell and cable gland)
- Mating Cycles: 500
- Wave Ring: Stainless steel
- Insert Material: Plastic (PA66)
- Retaining Ring: Stainless steel
- EMI-Ring: Copper Alloy
- Wave Ring: Stainless steel
- Vibration Resistance: In accordance with ElA-364-28D
- Salt Spray Resistance: Up to 500 hours with gray ZnNi plating
- Test Current: 3A for #22D contact
- Test Voltage: AC 500V RMS
- Insulation Resistance: 1000MΩ minimum at 500V
- Contact Resistance: Max 22mΩ
- Number of Mating Cycles: 500
Buy the Buy Amphenol Micro-B Connector Part Number MB03A1015PN072 Online
Order the Amphenol Micro-B Connector Part Number MB03A1015PN072 online now to experience a compact, lightweight, and highly reliable connector. Perfect for industrial automation, robotics, automotive systems, and telecommunications, this rugged connector features a durable aluminum shell, quick bayonet coupling, and high cycle life. Its IP67 protection ensures excellent performance in harsh environments. With a grounding EMI ring, stainless steel retainers, and high resistance to salt spray, it guarantees excellent electrical performance, high durability, and versatility for demanding applications requiring multiple mating cycles and reliable shielded connections.
Get Amphenol Micro-B Connector Part Number MB03A1015PN072 today—designed for high-density, rugged operation with quick quarter-turn coupling.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MB03A1015PN072?
You can click on the BUY or RFQ button to purchase MB03A1015PN072 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MB03A1015PN072?
You can download the MB03A1015PN072 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MB03A1015PN072?
AMPHENOL INDUSTRIAL
