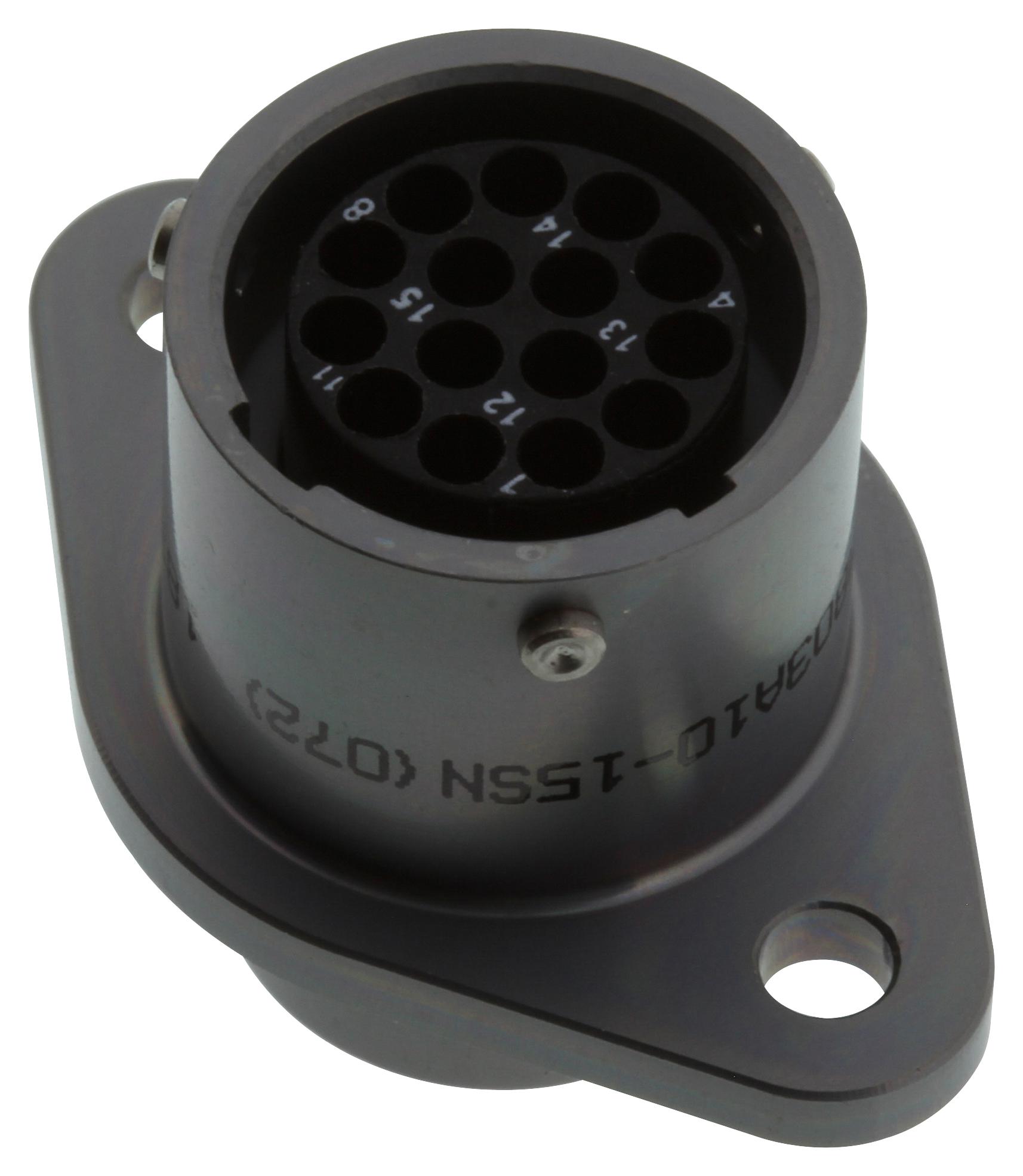

AMPHENOL INDUSTRIAL MB03A1015SN072 Micro-B Connector
Amphenol's Micro-B Series Connectors and Contacts are designed for modern electrical equipment, offering a compact, lightweight solution with high-density insert patterns and excellent EMI shielding. Made from aluminum with a robust triple bayonet (quarter-turn) coupling mechanism and stamped & formed contacts, these connectors provide high reliability and durable performance. They feature an internal EMI grounding spring for superior shell-to-shell conductivity and support various mounting options, including inline and two-hole flange mounts. Suitable for applications such as automotive systems, factory automation, industrial equipment, instrumentation, robotics, security, telecommunications, and test & measurement environments.
AMPHENOL INDUSTRIAL MB03A1015SN072 Micro-B Connector Specifications:
- Shell Material: Aluminum
- Insert Material: Plastic (PA66)
- Contact Plating: Tin/Gold Plated
- Operating Temperature Range: -40°C to 125°C
- Ingress Protection: IP54 with Heat Shrink, IP67 with Cable Gland Backshell
- Mating Cycles: 500
- Test Current: 3A for #22D Contact
- Recommended Operating Voltage: AC 250V RMS
- Test Voltage: AC 500V RMS
- Insulation Resistance: 1000MΩ at 500V
- Contact Resistance: 22mΩ Max
- Vibration and Thermal Shock: Meets IEC standards
- Salt Spray Resistance: Up to 500 hours with gray ZnNi plating
- Mounting Options: Inline, Flange (2-hole)
- Connector Size: Multiple shell styles (01H, 03H, 03A, 06H, 06T)
- Number of Poles: 7, 9, 15
- Insert Arrangements: 8-7, 9-10, 10-15
- Key/Keyway Mating: 5 key codes
- RoHS Compliant
Buy the Amphenol Series Micro-B Connectors: MB03A1015SN072
Get your Amphenol Micro-B Connector today and enjoy reliable, lightweight, high-density connections suitable for industrial automation, automotive, and security applications. Designed with a quarter-turn bayonet coupling, aluminum shell, and stamped contacts, it ensures high durability and excellent EMI shielding. Ideal for rugged environments, the connector features multiple mounting options, IP67 sealing, and up to 500 mating cycles. Order now online for fast delivery and seamless integration into your electrical systems, ensuring high performance and security in demanding applications.
Buy Amphenol Micro-B connectors and contacts now and experience unmatched reliability and high-performance connection in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MB03A1015SN072?
You can click on the BUY or RFQ button to purchase MB03A1015SN072 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MB03A1015SN072?
You can download the MB03A1015SN072 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MB03A1015SN072?
AMPHENOL INDUSTRIAL
