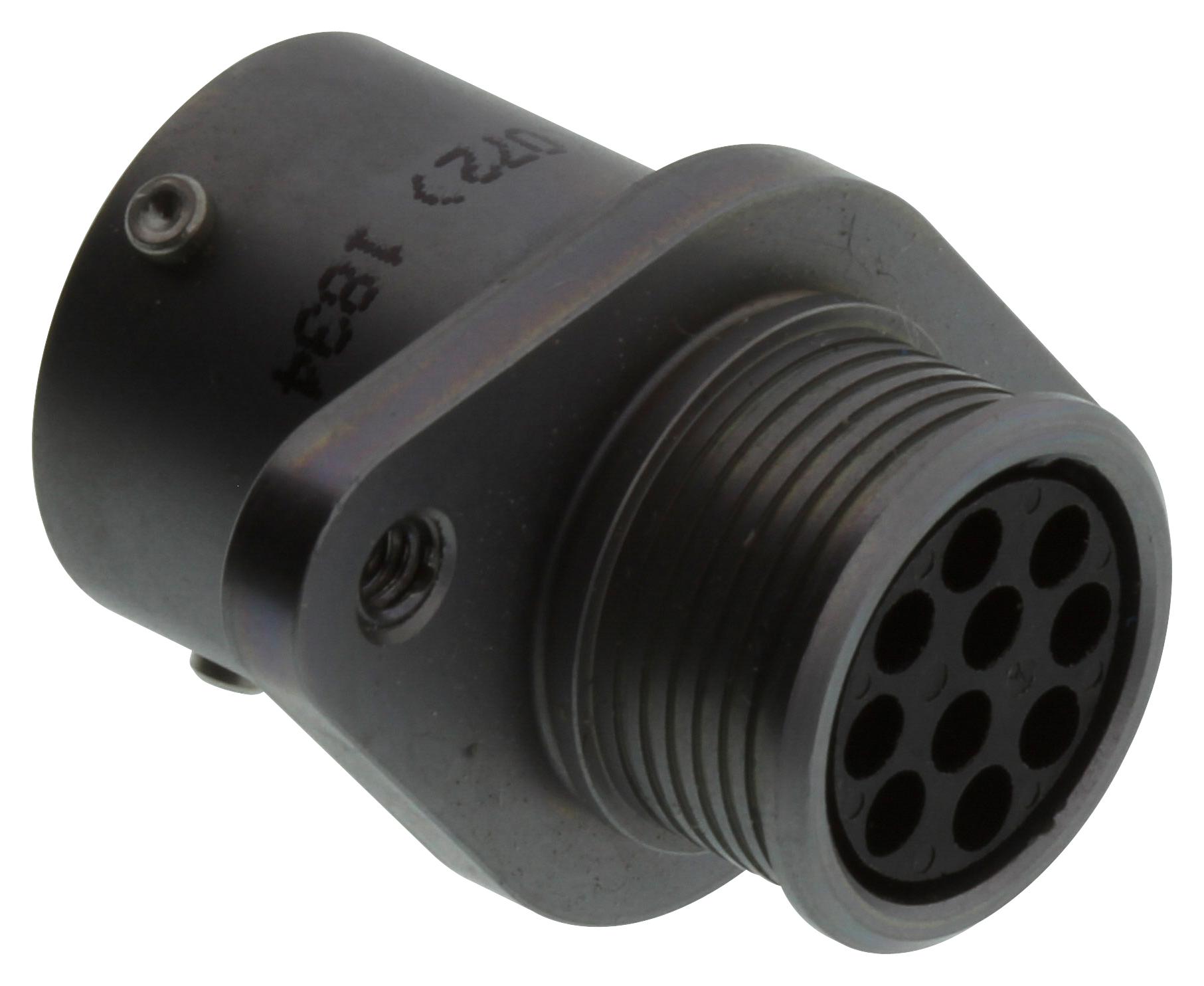

AMPHENOL INDUSTRIAL MB03HE0910PN072 industrial connector
Amphenol's Micro-B Series connectors are designed to meet the needs of modern electronic equipment, offering a compact, lightweight design with high-density insert patterns and excellent EMI shielding. Constructed from aluminum with a robust triple bayonet coupling (1/4 turn) mechanism and stamped and formed contacts, these connectors provide high durability and electrical performance with multiple mounting options, including in-line and flange mounts. An internal EMI grounding spring ensures superior shell-to-shell conductivity. They are suitable for various applications, such as automotive systems, factory automation, industrial equipment, instrumentation, robotics, security, telecommunications, and test and measurement environments.
AMPHENOL INDUSTRIAL MB03HE0910PN072 industrial connector Specifications:
- Shell Material: Aluminum
- Insert Material: Plastic (PA66)
- Contact Plating: Tin/Gold
- Temperature Range: -40°C to 125°C
- Ingress Protection: IP54 with heat shrink, IP67 with cable gland backshell
- Wave Ring: Stainless steel
- EMI-Ring: Copper Alloy
- Retaining Ring: Stainless steel
- Contacts: Crimp, 22D size
- Contact Resistance: Max 22mΩ
- Test Current: 3A
- Operating Voltage: AC 250V RMS
- Test Voltage: AC 500V RMS
- Insulation Resistance: ≥ 1000MΩ at 500V
- Mating Cycles: 500
- Vibration: Compliance with EA-364-28D
- Salt Spray Resistance: Up to 500 hours with Gray ZnNi plating
Buy the Amphenol MB03HE0910PN072 – Reliable Circular Connector for Industrial Applications
Purchase the Amphenol Micro-B Series connector online today and experience high-performance, lightweight, and durable connections. Designed for demanding industrial and automation environments, these connectors offer excellent EMI shielding, multiple mounting options, and withstand extreme conditions with IP67 protection. Perfect for automotive, factory automation, instrumentation, robotics, security, and test equipment, they ensure reliable connectivity, high cycle life, and easy installation. Secure your supply chain by ordering now for quick delivery and exceptional quality in every connection.
Get Amphenol Micro-B connector today—built for precision and long-lasting durability in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MB03HE0910PN072?
You can click on the BUY or RFQ button to purchase MB03HE0910PN072 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MB03HE0910PN072?
You can download the MB03HE0910PN072 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MB03HE0910PN072?
AMPHENOL INDUSTRIAL
