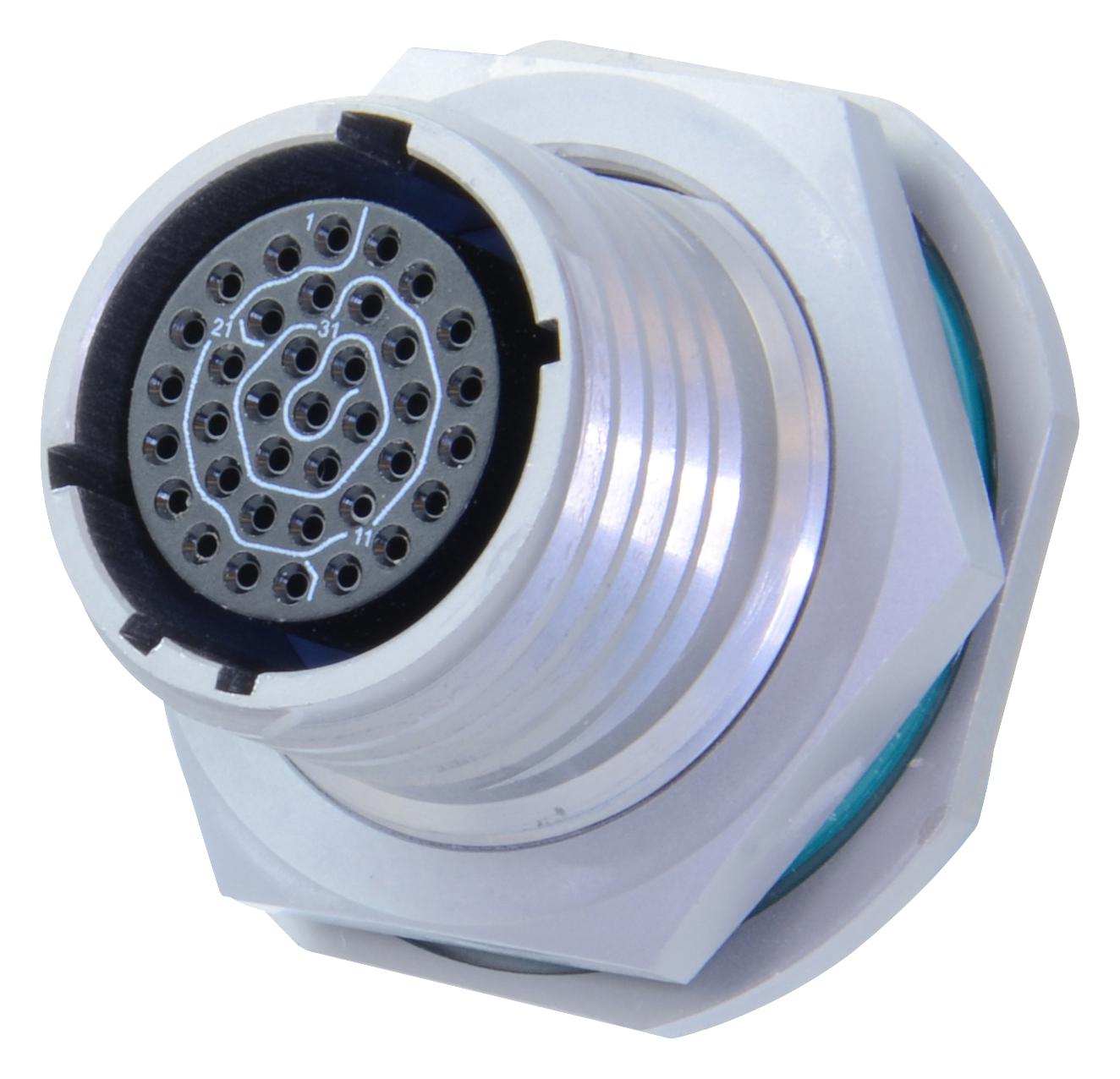

AMPHENOL INDUSTRIAL ALM07F2335S072 High Performance Circular Connector
Amphenol's Amphe-Lite M3 series is designed for harsh environments, offering high durability, superior EMI shielding, and quick-mating bayonet coupling. The connectors feature scoop-proof shells, rigid dielectric inserts, and excellent corrosion resistance with Gray ZnNi plating. Suitable for control systems, aerospace, telecommunication, medical instrumentation, and vehicle signal interconnects, these connectors comply with MIL-DTL-38999 standards. They provide high vibration resistance, IP67 rating when mated, and use removable crimp contacts for reliable electrical connections, making them ideal for demanding industrial and aerospace applications.
AMPHENOL INDUSTRIAL ALM07F2335S072 High Performance Circular Connector Specifications:
- Operating Temperature: -65°C to +125°C
- Mating Cycles: Minimum 500
- Insulation Resistance: > 100 MΩ
- Salt Spray Resistance: 500 hours in Gray ZnNi plating
- Vibration Resistance: Sine and random vibration tested
- Shock Resistance: Peak acceleration of 300g for 3ms
- EMI Shielding: Attenuation of at least 50dB from 100MHz to 10GHz
- Contact Resistance: <= 12mΩ for size 22D, and up to 25mΩ for smaller sizes
- Current Rating: Varies by size, up to 23A for size 12
- Cable Compatibility: High-density inserts rated to IP67 in mated condition, with multiple insert patterns
- Physical Dimensions: Shell sizes ranging 13-25, with threaded or bayonet coupling options, and keyway configurations for proper mate alignment
- Material: Metal shells with silicone seals, dielectric inserts, and stainless steel contact shrouds
- Shell Finish: Gray Zinc Nickel or Electroless Nickel
- Flammability: UL94V-0
- Certifications: MIL-STD-1344A, RoHS, IP67 rated in mating condition
Buy the Buy Amphenol High Performance Connector Part Number ALM07F2335S072 Online
Enhance your equipment's reliability with the Amphenol High Performance Circular Connector. Featuring scoop-proof shells, quick-mate bayonet coupling, and superior corrosion resistance, this connector is perfect for aerospace, industrial, and telecommunication applications. It offers excellent EMI shielding, high vibration resistance, and IP67 sealing in the mated condition. Using removable crimp contacts, the connector simplifies maintenance and ensures secure electrical connections. Order online today to benefit from fast delivery, competitive pricing, and trusted quality for your critical systems.
Buy Amphenol ALM07F2335S072 high durability connector now and experience unmatched reliability and performance in demanding industrial and aerospace environments.
