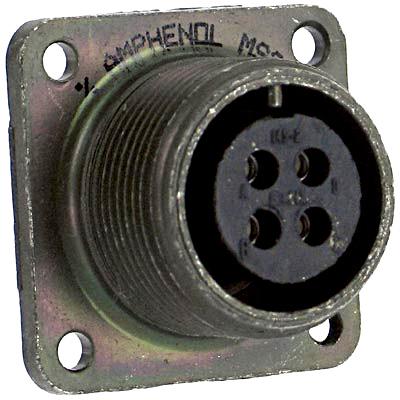

AMPHENOL INDUSTRIAL MS3102A2812S Box Mounting Receptacle
The MS3102A2812S is a high-reliability, environmentally resistant box mounting receptacle designed for military and industrial applications. Fabricated from high-grade aluminum alloy with durable cadmium plating and olive drab chromate finish, it features threaded coupling, single key/keyway polarization, and accepts solder or crimp contacts in sizes 16-0. Suitable for use with jacketed or unjacketed cables, it offers robust sealing with grommets, sealing plugs, and optional waterproofing gaskets. The connector is ideal for ground support, shipboard, and pressurized bulkhead environments, providing excellent electromagnetic compatibility and environmental protection.
AMPHENOL INDUSTRIAL MS3102A2812S Box Mounting Receptacle Specifications:
- Material: High-grade aluminum alloy
- Finish: Cadmium plated with olive drab chromate
- Thread sizes: 0.5000-28UNEF, 0.6250-24NEF, 0.7500-20UNEF, 0.8750-20UNEF, 1.0000-20UNEF, 1.1250-18NEF, 1.2500-18NEF, 1.3750-18NEF, 1.5000-18NEF, 1.7500-18NS, 2.0000-18NS, 2.2500-16UN, 2.5000-16UN
- Shell sizes: 8, 10, 12, 14, 16, 18, 20, 22, 24, 28, 32, 36, 40
- Contact sizes: 16-0, pin and socket, silver plated copper alloy
- Operating Voltage: Up to 3000 VAC (RMS) at sea level
- Seal features: Grommets, sealing plugs, optional waterproof gaskets
- Insert arrangements: Multiple patterns, from 1 to over 50 contacts
- Environmental resistance: Moisture, vibration, pressure, temperature extremes
- Polarization: Single key/keyway shell design
- Applications: Military ground support, shipboard, high-shock environments
Buy the Buy Amphenol MS3102A2812S Part Number MS3102A2812S Online
Purchase your Amphenol MS3102A2812S box mounting connector online today. This rugged, high-performance, environmentally resistant connector offers military-grade durability, threaded coupling, and versatile contact arrangements. Perfect for demanding environments including shipboard, military ground support, and pressurized bulkhead applications. With options for solder or crimp contacts, sealing gaskets, and waterproofing, this connector guarantees secure, corrosion-resistant connections. Buy now and ensure your project benefits from superior reliability, safety, and environmental protection at an excellent value.
Order your Amphenol SeriesMS3102A2812S box mounting connector today and ensure reliable, environmental-resistant connections for demanding military and industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MS3102A2812S?
You can click on the BUY or RFQ button to purchase MS3102A2812S from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MS3102A2812S?
You can download the MS3102A2812S datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MS3102A2812S?
AMPHENOL INDUSTRIAL
