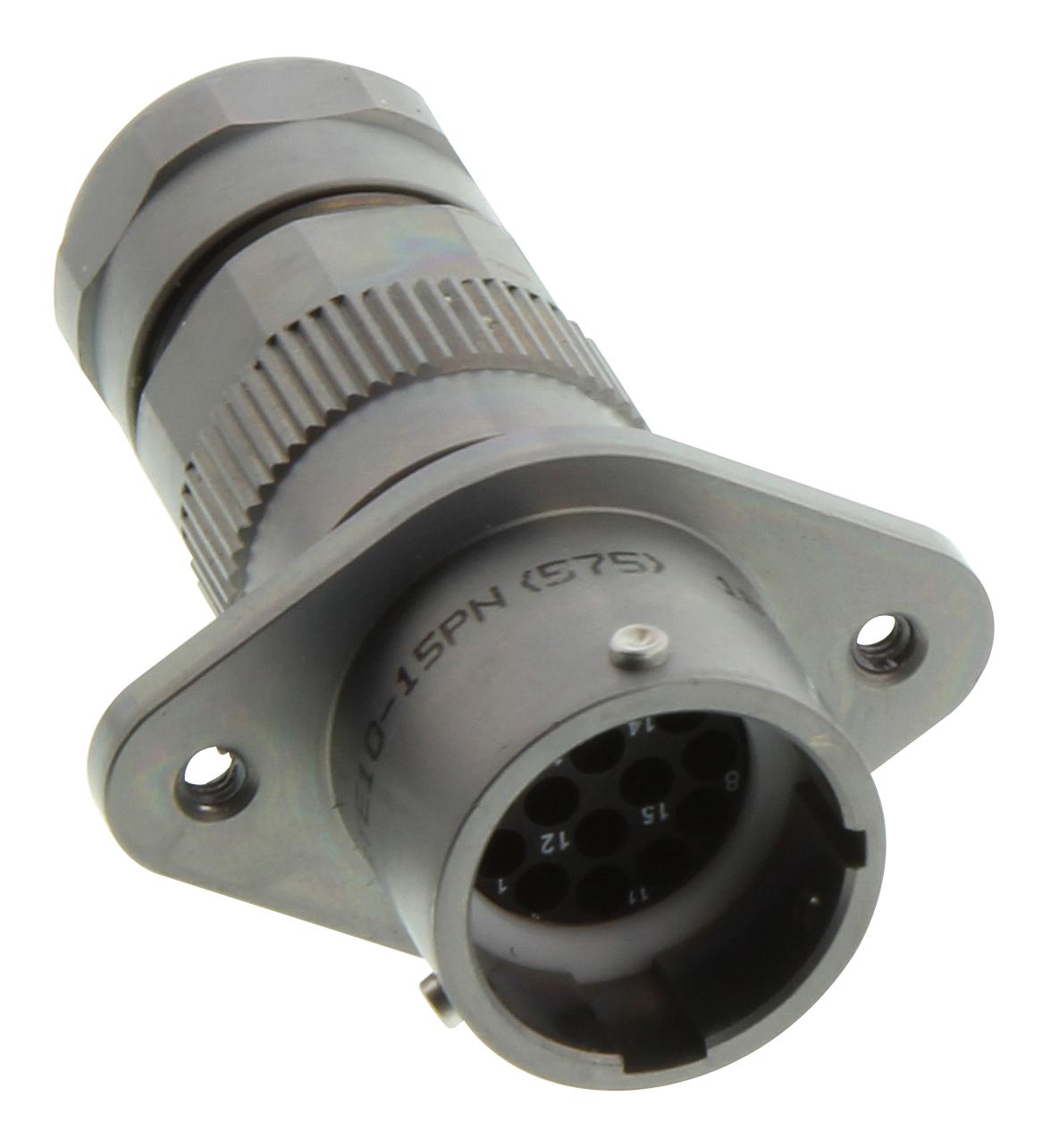

AMPHENOL INDUSTRIAL MB03TE1015PN575 Micro-B Connector
The Amphenol Micro-B Series Connectors and Contacts are designed for compact, lightweight, and high-density electrical connections. They feature an aluminum shell with a robust triple bayonet coupling (quarter turn) mechanism and stamped and formed contacts, ensuring high reliability and durability. The connectors include an internal EMI grounding spring for excellent shell-to-shell electrical shielding against electromagnetic interference. Suitable for various mounting options such as inline and 2-hole flange configurations, these connectors are ideal for industrial applications requiring high performance and affordability. They are used in automotive systems, factory automation, industrial equipment, instrumentation, robotics, security, telecommunications, and test & measurement devices.
AMPHENOL INDUSTRIAL MB03TE1015PN575 Micro-B Connector Specifications:
- Shell Material: Aluminum
- EMI-Ring: Copper Alloy
- Retaining Ring: Stainless steel
- Wave Ring: Stainless steel
- Insert Material: Plastic (PA66)
- Contact Material: Copper Alloy
- Contact Plating: Tin/Gold Plated
- Operating Temperature Range: -40°C to 125°C
- Ingress Protection: IP54 (with heat shrink), IP67 (with cable gland backshell)
- Test Current: 3A for #22D contact
- Voltage Rating: AC 250V RMS
- Test Voltage: AC 500V RMS
- Insulation Resistance: 500V, 1000MΩ Min
- Contact Resistance: 22mΩ Max
- Mating Cycles: 500
- Vibration Resistance: In accordance with IEC-364-28D
- Salt Spray Resistance: Up to 500 hours with Gray ZnNi plating
Buy the Amphenol Series Micro-B Connectors: MB03TE1015PN575
Order the Amphenol Micro-B connector series MB03TE1015PN575 online today. These compact, lightweight connectors are engineered for high density, high reliability, and harsh environment applications. Featuring an aluminum shell with a rugged triple bayonet coupling system and stamped contacts, they provide quick mating and robust electrical performance. Suitable for automotive, industrial automation, robotics, and communication systems, these connectors meet all RoHS standards and offer excellent corrosion resistance up to 500 hours salt spray. Experience quality, affordability, and versatile mounting options with a trusted industry leader.
Get Amphenol Micro-B connectors MB03TE1015PN575 today—designed for high performance, durability, and versatile industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MB03TE1015PN575?
You can click on the BUY or RFQ button to purchase MB03TE1015PN575 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MB03TE1015PN575?
You can download the MB03TE1015PN575 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MB03TE1015PN575?
AMPHENOL INDUSTRIAL
