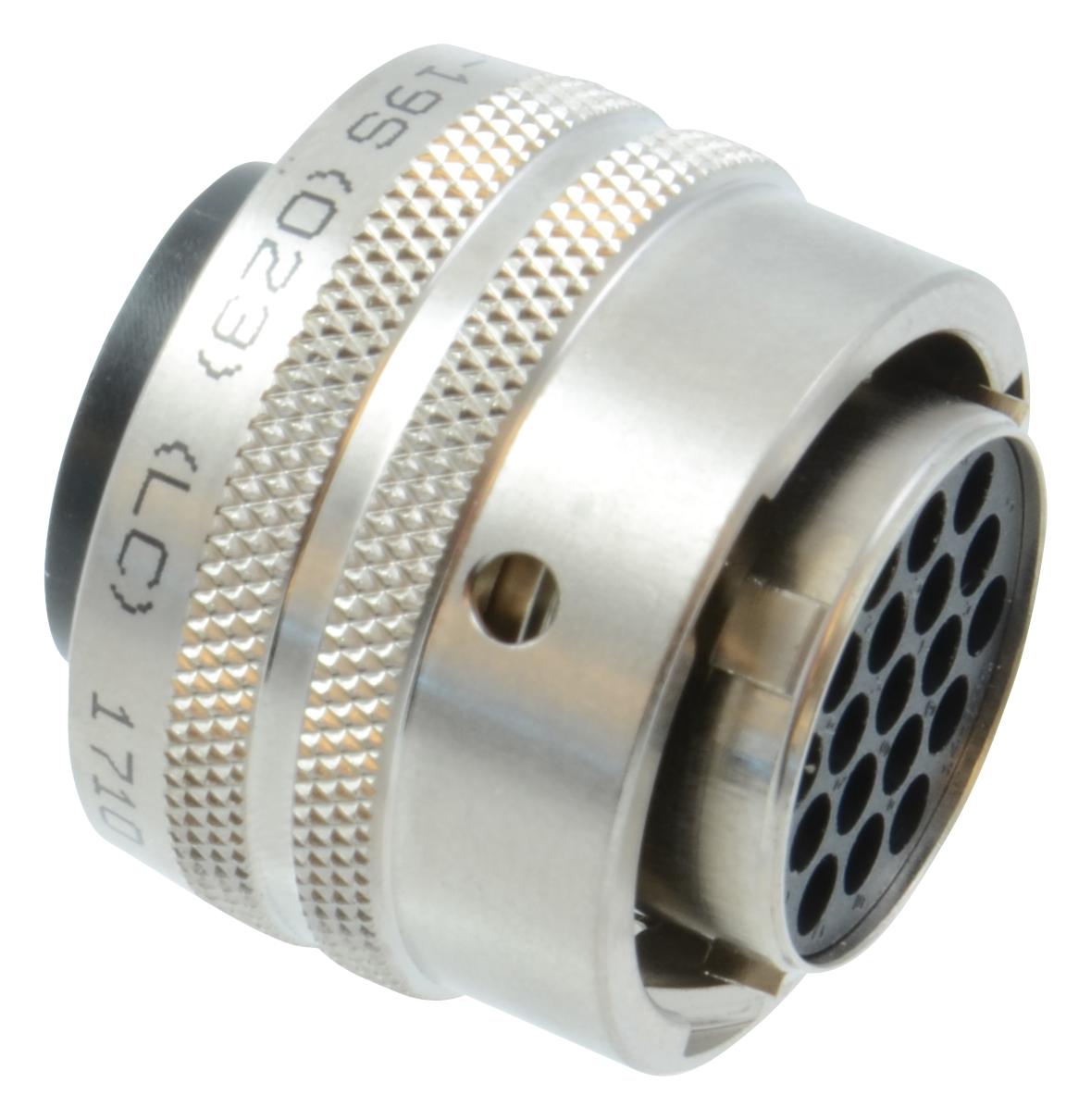

AMPHENOL INDUSTRIAL LPT06SE124S027LC Industrial Connectors
Amphenol Industrial's LPT Series connectors are lightweight, aluminum-shell connectors based on the MIL-C-26482 Series I standard and the original PT series. They feature a standard PT shell with a coupling nut, making them compatible with PT series connectors. The LPT connectors include three retention tines with stamped and formed crimp contacts, allowing for easy insertion and reliable retention force. They support wire gauges from 22 AWG (0.34 mm²) to 12 AWG (3.5 mm²) and offer quick positive coupling with a 5-key/keyway design to prevent mismating. Available in five shell styles, including box mounting, jam nut, straight plug, wall mounting, and cable connecting variants, these connectors are suitable for applications in automation, process control, commercial vehicles, energy, industrial automation, instrumentation, and power management.
AMPHENOL INDUSTRIAL LPT06SE124S027LC Industrial Connectors Specifications:
- Shell Material: Aluminum
- Insert Material: Plastic
- Material: Copper alloy
- Contact Plating: Tin/Nickel/Gold
- Temperature Range: -40°C to +125°C
- Ingress Protection: IP67 & IP69K in mated condition
- Current Capacity: 7.5A for 20# contact, 13A for 16# contact, 23A/35A with RADSOK contact
- Operating Voltage: Up to 500V
- Test Voltage AC: 2300V
- Mating Cycles: 500
- Connector Shell Styles: Box mounting, jam nut, straight plug, wall mounting, cable connecting
- Shell Plating Options: Black zinc, nickel, gray zinc nickel
- Key/keyway: W, X, Y, Z
Buy the Amphenol Series LPT: LPT06SE124S027LC
Purchase the Amphenol LPT Series connectors online today. These high-quality, lightweight aluminum connectors are designed for industrial automation, instrumentation, energy, and harsh environment applications. With options for box mounting, jam nut, straight plug, wall mounting, and cable connecting styles, they support wire sizes from 22 AWG to 12 AWG. Featuring IP67/IP69K ingress protection, high shock resistance, and a wide temperature range, they ensure durable performance. Count on quick coupling, multiple plating choices, and proven reliability from a trusted global manufacturer for your project needs.
Order your Amphenol Series LPT06SE124S027LC connector today and ensure reliable, high-performance connections in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL LPT06SE124S027LC?
You can click on the BUY or RFQ button to purchase LPT06SE124S027LC from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part LPT06SE124S027LC?
You can download the LPT06SE124S027LC datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of LPT06SE124S027LC?
AMPHENOL INDUSTRIAL
