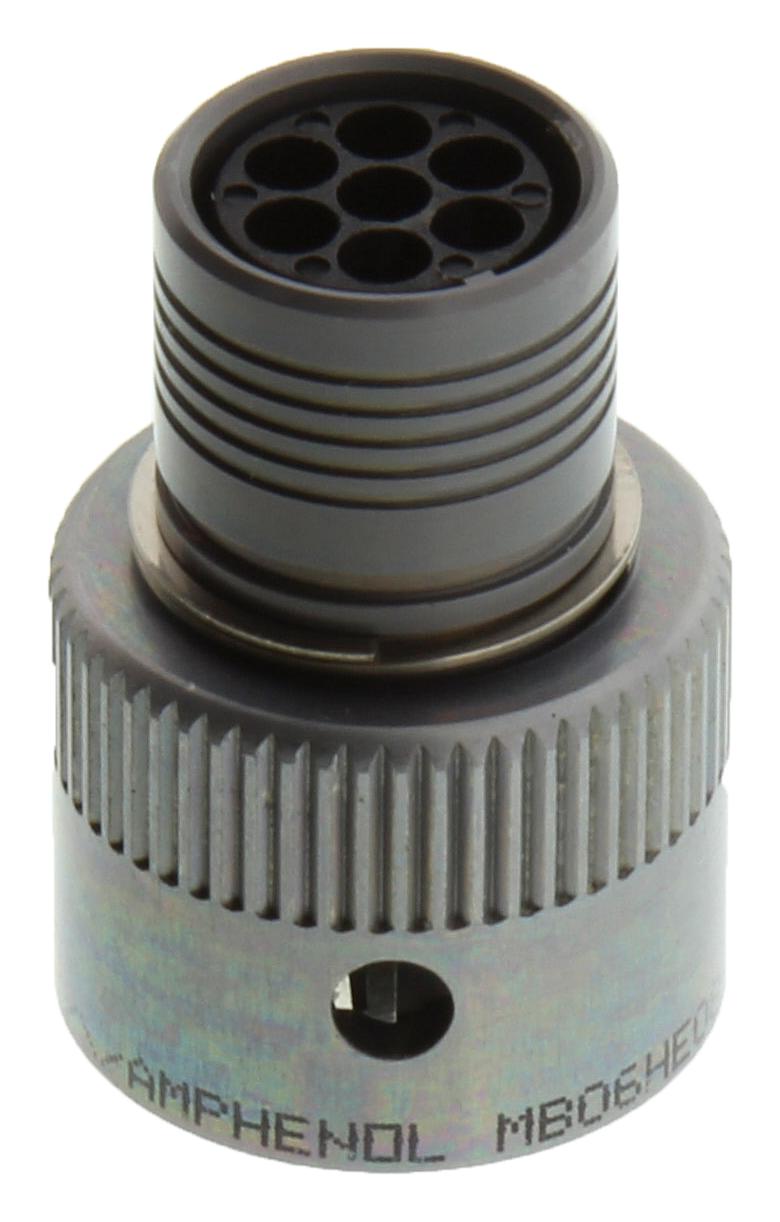

AMPHENOL INDUSTRIAL MB06HE0807PN072 Micro-B Connector
Amphenol's Micro-B Series Connectors feature a compact and lightweight aluminum shell, combining high-density insert patterns with a robust triple bayonet coupling for quick, secure connections. Designed for harsh environments, these connectors offer high reliability, high shock and vibration resistance, and IP67 protection when mated with an appropriate backshell or cable gland. They include stamped and formed contacts, an EMI grounding spring, and are suitable for industrial, automotive, robotics, telecommunications, and instrumentation applications. RoHS compliant, they withstand salt spray up to 500 hours, ensuring durability in demanding conditions.
AMPHENOL INDUSTRIAL MB06HE0807PN072 Micro-B Connector Specifications:
- Shell Material: Aluminum
- Contact Material: Copper Alloy, Tin/Gold Plated
- Operating Temperature Range: -40°C to 125°C
- Ingress Protection: IP67 with backshell or cable gland
- Mating Cycles: 500
- Vibration Resistance: In accordance with IEC-364-28D
- Salt Spray Resistance: Up to 500 hours with gray ZnNi plating
- Maximum Voltage: AC 250V
- Test Voltage: AC 500V
- Current Rating: 3A for #22D contacts
- Keying: 5 key/keyway arrangements
- Mounting Options: In-line, 2-hole flange
- Insert Pattern: 7, 9, or 15 poles
Buy the Buy Amphenol Micro-B Series Connector Part Number MB06HE0807PN072 Online
Purchase your Amphenol Micro-B Series connector online today to benefit from high-density, lightweight, and durable industrial connectors. Engineered for demanding environments, these connectors feature a quick quarter-turn bayonet coupling, aluminum shell construction, high shock and vibration resistance, and IP67 protection, ensuring long-term reliability. Suitable for automotive, automation, instrumentation, robotics, security, and telecommunication applications, they comply with RoHS standards and provide excellent EMI shielding. Order now to improve your project’s connectivity with trusted quality and fast delivery.
Order your Amphenol Series MB06HE0807PN072 compact connector today and ensure reliable, high-performance connections for your industrial projects.
