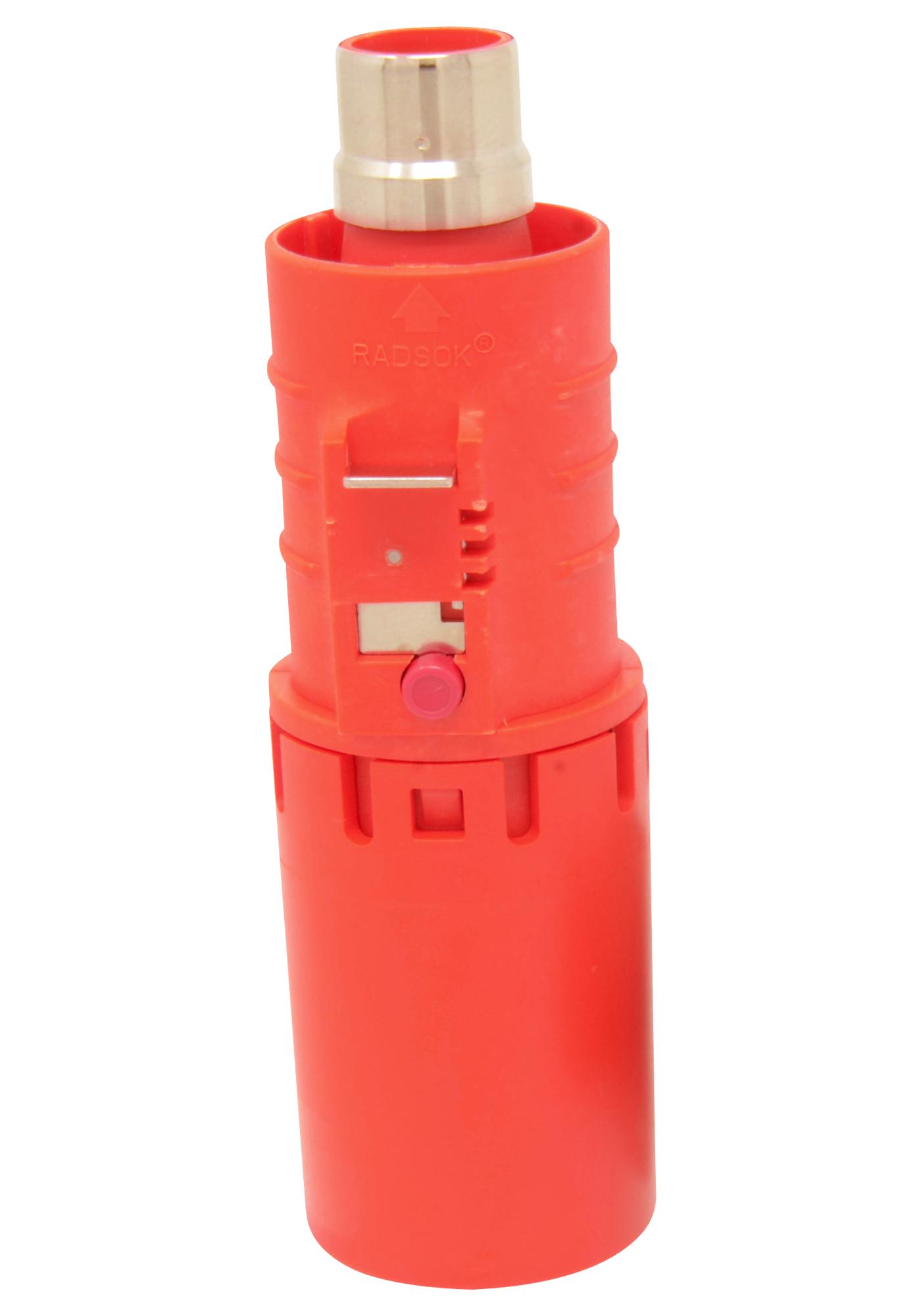

AMPHENOL INDUSTRIAL SLPIPB50BSR3EH Power Connector
The SurLok Plus™ compression lugs from Amphenol Industrial are highly reliable, field-installable, environmentally sealed connectors designed for secure electrical connections. These compact lugs feature a secondary locking system, quick-lock mechanism, and press-to-release operation, incorporating the latest R4 RADSOK® technology for robust performance. They support industry-standard crimp, screw, and busbar termination methods, eliminating the need for special torque tools. The lugs are available in various shell types, including right-angle and straight configurations, with multiple connector colors such as orange, black, and red. Contact sizes range from 5.7mm (120A), 8mm (200A), to 10.3mm (350A). They offer EMI shielding and HVIL functions, with options for touch-proof, IP67 sealed, and non-sealed designs. Keyway configurations prevent incorrect mating and handle up to 400A with voltage ratings up to 1000VAC/DC. Capable of supporting wire gauges up to 95mm², all meet UL94 V-0 flammability standards, operate between -40°C to 125°C, and are suitable for heavy-duty industrial applications.
AMPHENOL INDUSTRIAL SLPIPB50BSR3EH Power Connector Specifications:
- Flammability: UL 94 V-0
- Contact Material: Copper alloy
- Temperature Range: -40°C to 125°C
- Current Capacity: Up to 400A
- Voltage Rating: Up to 1000VAC/DC
- Contact Sizes: 5.7mm (120A), 8mm (200A), 10.3mm (350A)
- Sealing: IP67 sealed variants available
- Connector Colors: Orange, black, red
- Configuration: Right-angle and straight shell types, keyway options (60°, 90°, 120°, 150°, 180°, 270°)
- Termination Methods: Crimp, screw, busbar
- Compliance: UL94 V-0 flammability standard
- Operating Temp: -40°C to 125°C
- Backshell Options: With or without backshells
- Design Features: Secondary locking, quick-lock mechanism, press-to-release, EMI shielding, HVIL
Buy the Amphenol SLPIPB50BSR3EH – Reliable Industrial Power Connectors for Automation
Discover the Amphenol SurLok Plus™ power connectors designed for robust industrial applications. Featuring quick-lock, secondary locking system, and environmental sealing, these high-reliability connectors support up to 400A with voltage ratings up to 1000VAC/DC. They are suitable for power systems, automation, and heavy equipment, offering excellent EMI shielding and diverse termination options including crimp, screw, and busbar methods. With multiple color and configuration options, UL94 V-0 flammability compliance, and operating temperatures from -40°C to 125°C, these connectors ensure safe, secure, and durable electrical connections in demanding environments. Buy online now for premium quality and dependable performance.
Get Amphenol SLPIPB50BSR3EH today—built for precision, high current capacity, and long-lasting durability in industrial environments.
