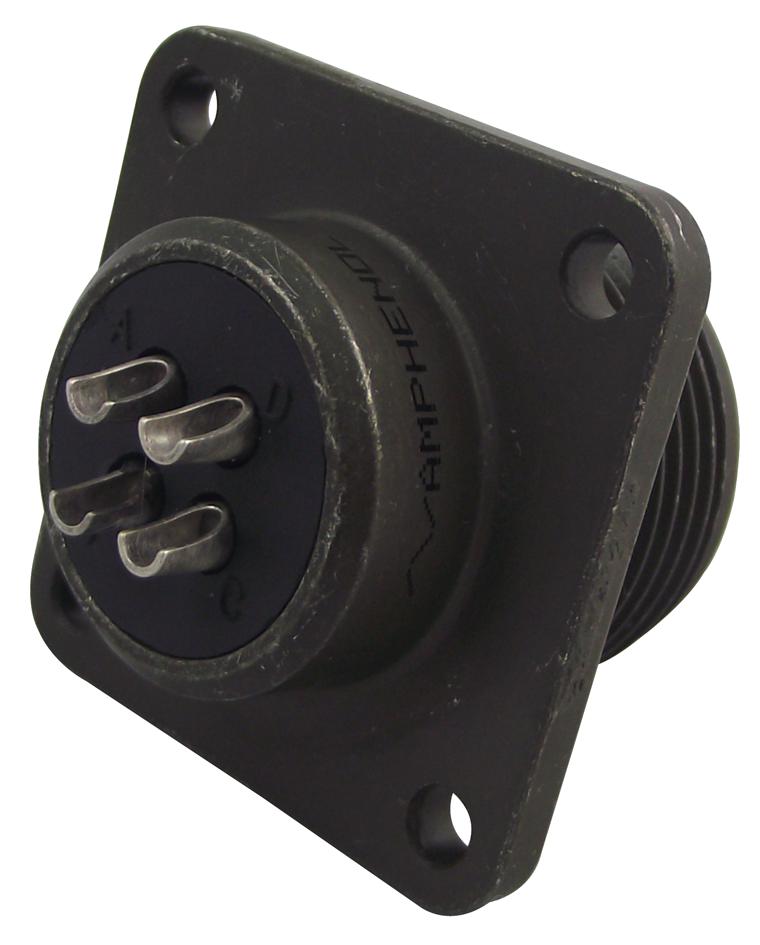

AMPHENOL INDUSTRIAL MS3102E14S2P Circular Connector
The MS3102E14S-2P is a durable, military-grade circular connector featuring four contacts with silver-plated copper pins. It is designed for demanding environments, providing excellent resistance to moisture, vibration, and extreme conditions. The connector includes a box mounting receptacle with a 14S-2 insert arrangement and is constructed from high-grade aluminum alloy, with a cadmium-plated, olive drab chromate finish for corrosion resistance. Neoprene inserts ensure a moisture barrier and high dielectric strength. This connector employs threaded coupling with keyway polarization, making it simple to connect and ideal for military, aerospace, and shipboard applications, especially in conditions involving vibration, moisture, pressure, and temperature. It is capable of handling up to 3000V RMS at sea level.
AMPHENOL INDUSTRIAL MS3102E14S2P Circular Connector Specifications:
- Shell Material: Aluminum alloy
- Shell Finish: Olive drab chromate over cadmium plating
- Contact Material: Copper alloy
- Contact Plating: Silver
- Number of Contacts: 4 (Size 16S)
- Contact Type: Solder cup
- Contact Resistance: Not specified
- Operating Voltage: Up to 3000V RMS at sea level
- Insulator Resistance: >1000 MO as per VG95319 and VG95210
- Test Voltage: 1050 Vrms
- Protection Rating: IP65 according to DIN 40 050
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500
- Sep. Force per Contact: 1.0N
- Coupling Torque: Closing 3.6 Nm max, Opening 0.35 Nm min
- Ambient Temperature: -55°C to +125°C
- Gage Information: Refer to VG95234, part 1
- Wire Stripping: 6.2 mm
- Air and Creepage Path: ≥0.7 mm
- Corrosion Resistance: 500 hours salt spray
- Seal: Neoprene
- Dimensions: Shell size 14, insert arrangement 14S-2
Buy the Cannon Series MIL-DTL 5015 Circular Connector: MS3102E14S-2P
Order the Cannon Circular Connector MS3102E14S-2P now for reliable, high-performance connectivity in demanding military, aerospace, and marine applications. Designed with four silver-plated copper contacts, it ensures excellent electrical conductivity and resistance to moisture, vibration, and extreme temperatures. Its aluminum shell with olive drab chromate coating provides corrosion resistance, while neoprene insulators and threaded coupling facilitate secure, easy connections. Capable of handling up to 3000V RMS, this connector is ideal for demanding environments requiring durable, dependable performance. Purchase online for fast shipping and professional support.
Get Cannon MS3102E14S-2P today—built for durability, performance in harsh environments, and certified to military standards.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MS3102E14S2P?
You can click on the BUY or RFQ button to purchase MS3102E14S2P from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MS3102E14S2P?
You can download the MS3102E14S2P datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MS3102E14S2P?
AMPHENOL INDUSTRIAL
