AMPHENOL INDUSTRIAL MS3106F10SL-4S Datasheet & Stock

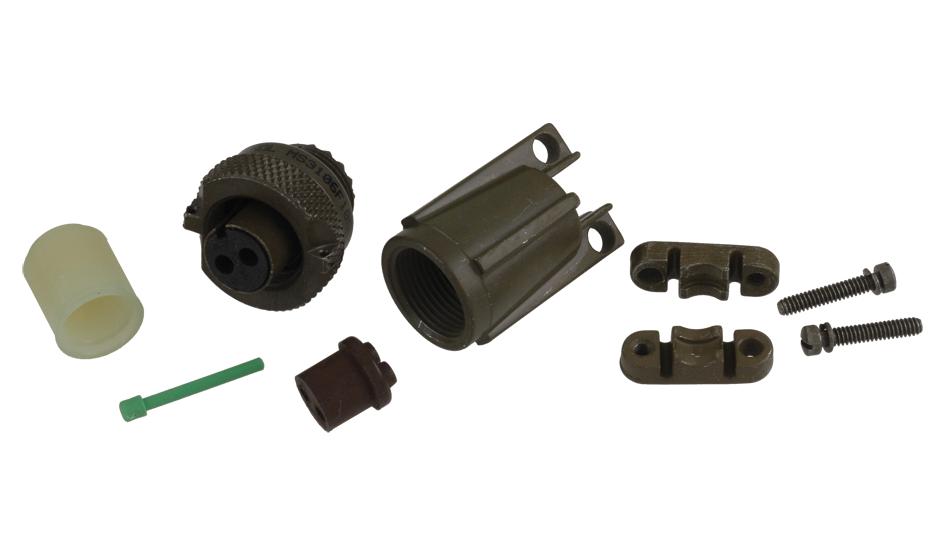

The MS3106F10SL-4S is a 2-contact military standard Circular Connector with silver-plated copper contacts, straight plug, environment-resistant with strain relief, 10SL-4 insert arrangement and socket contact type. Shell components are fabricated from high grade aluminium alloy. The standard hardware plating is electrically conductive cadmium-plated finish with an olive drab chromate after-treatment for corrosion resistance. Resilient neoprene inserts provide an outstanding moisture barrier, high dielectric strength and resistance to vibration. This connector represents well-proven electrical capability at an acceptable cost for most equipment where durability is important. MIL-C-5015 features threaded coupling, single key and keyway polarization representing maximum simplicity in design. This connector is recommended for conditions where vibration, moisture, pressure and temperature are extreme. Suitable for ordnance and shipboard installation.




Medium to heavy weight cylindrical

Durable and field-proven design

3000VAC (RMS) at Sea level operating voltage

Split end bell service class





Applications


Defence, Military & Aerospace
