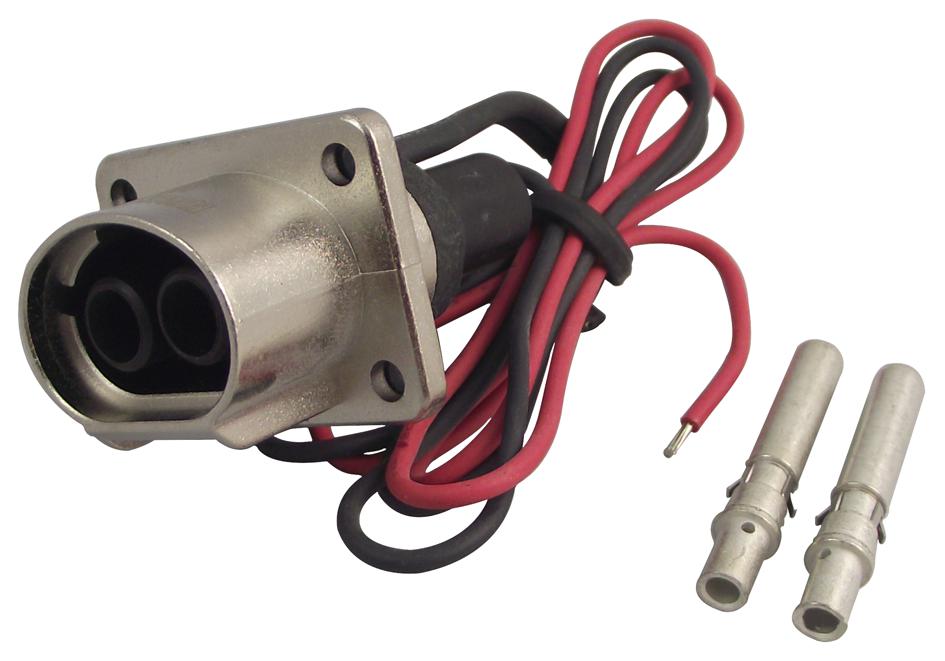

AMPHENOL INDUSTRIAL PL082X614 PowerLok Connector
The PowerLok™ 4.0 connector is a reliable, compact, and high-performance electrical connector designed for medium and small current applications in electric vehicles, energy storage, and industrial systems. Featuring multi-polarization, automatic secondary lock, and shielded design, it ensures secure connections with minimal space. This connector supports cable sizes from 25mm² to 150mm², operates at up to 1000V DC, and withstands temperatures from -40°C to +125°C, making it ideal for demanding automotive and industrial environments requiring high current capacity and high safety standards.
AMPHENOL INDUSTRIAL PL082X614 PowerLok Connector Specifications:
- Rated Voltage: 1000 V DC
- Current Rating: 26 A to 60 A depending on series
- Material: Insulation made from XLPE, conductor from Bare Copper
- Temperature Range: -40°C to +125°C
- Protection Class: IP67, shielded
- Mating Cycles: Minimum 50
- Polarization: Multi Keys for secure connection
- Flammability: UL94 V-0
- Cable Size Support: 25mm² to 150mm²
- Mechanical: 360° rotatable, overmolded plastic body
- Features: Automatic secondary lock, multi-polarization, high-voltage capability, durable build
- Applications: Electric vehicles, battery connections, frequency converters, industrial switching gear, energy storage systems
Buy the Amphenol Series PowerLok 4.0: PowerConnector PL082X614
Discover the convenience of purchasing the PowerLok 4.0 connector online—designed for high reliability in EVs, energy storage, and industrial systems. This compact, shielded connector supports cable sizes from 25mm² to 150mm², with a maximum voltage of 1000V DC. It offers automatic secondary locking, multi-polarization, and IP67 protection for demanding environments. Easy to handle, other features include high durability for numerous mating cycles, temperature tolerance from -40°C to +125°C, making it ideal for modern electric vehicle and industrial applications. Buy now for quality assurance and quick delivery.
Order your Amphenol Series PowerLok 4.0 connector today and equip your high-current systems with a dependable, easy-to-install electrical connection solution.
