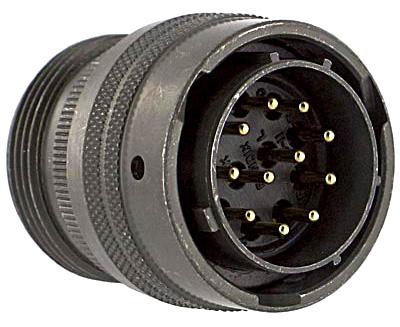

AMPHENOL INDUSTRIAL PT06A1811P Miniature Cylindrical Connector
This miniature cylindrical connector offers high reliability, environmental sealing with grommets and clamp design, gold-plated machined copper contacts, and a versatile range of styles including straight, 90-degree, hermetic, and breakaway options suitable for industrial, military, and geophysical applications, providing excellent electrical insulation, moisture resistance, and easy assembly for power, thermocouple, and coaxial signals up to 1000 VAC with optional EMI filtering.
AMPHENOL INDUSTRIAL PT06A1811P Miniature Cylindrical Connector Specifications:
- Shell sizes: 6 to 24
- Contact count: 2 to 61
- Operating Temperature: -55°C to +125°C
- Operating Voltage: up to 1000 VAC RMS at sea level
- Contact Material: Copper alloy gold-plated
- Contact Resistance: 55 millivolts maximum at 1 Amp
- Dielectric Withstanding Voltage: 1500 V RMS (sea level), 2300 V RMS (service rating II)
- Leakage: Less than 1.0 x 10° cc/sec at 15 psi differential
- Physical Shock: 100 Gs
- Vibration: Meets MIL-E-5272, Procedure II
- Thermal Shock: No deterioration after 5 cycles -55°F to +257°F
- Shell finishes include cadmium, zinc cobalt, nickel, and Alumilite coatings
- Designs include bayonet, threaded, hermetic, and breakaway styles with various insert patterns
Buy the Amphenol PT06 – Reliable Miniature Cylindrical for Industrial Applications
Order the high-performance miniature cylindrical connector today for industrial, military, and geophysical environments. Featuring environmental sealing, gold-plated contacts, and versatile configurations including hermetic, breakaway, and EMI-filtered styles, it ensures reliable electrical connections in challenging conditions. Easy to assemble with threaded or bayonet coupling, available with multiple insert patterns and finishes like cadmium, zinc cobalt, or Alumilite. Perfect for power, thermocouple, and coaxial signals up to 1000 VAC, providing long-term durability and excellent electrical insulation. Buy online now for fast delivery and expert support.
Get Amphenol PT06 today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL PT06A1811P?
You can click on the BUY or RFQ button to purchase PT06A1811P from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part PT06A1811P?
You can download the PT06A1811P datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of PT06A1811P?
AMPHENOL INDUSTRIAL
