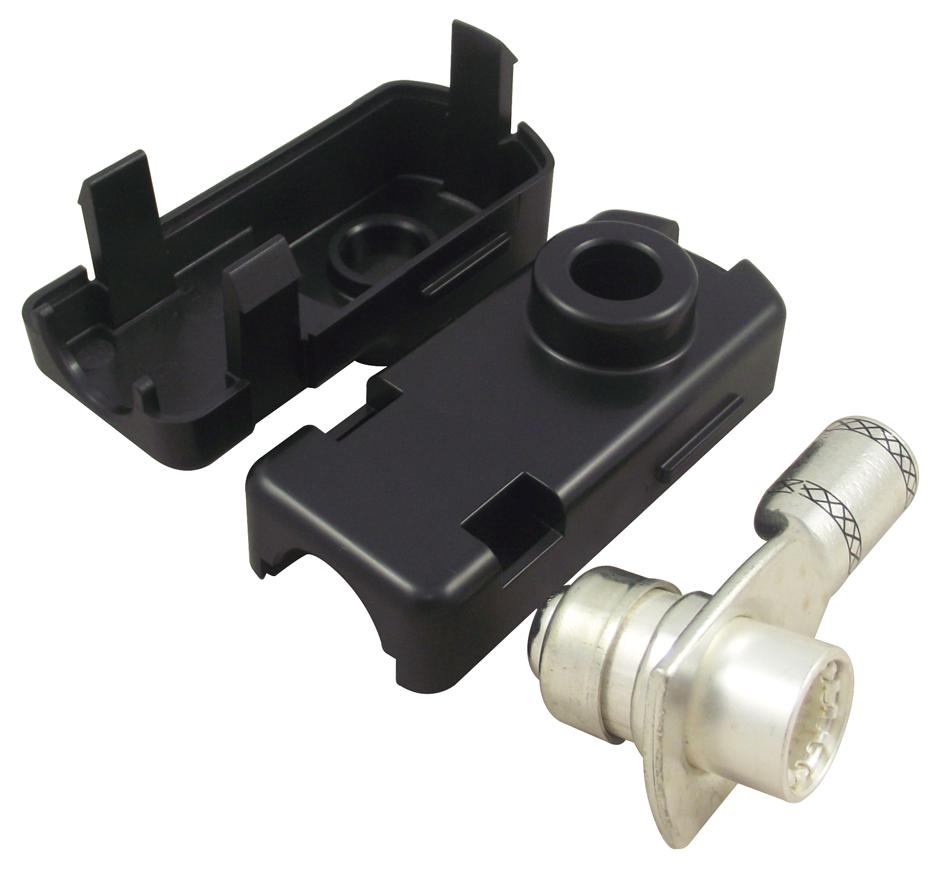

AMPHENOL-INDUSTRIAL C106471862X1 High Current Compression Lug
The Amphenol SurLok compression lug with plastic housing utilizes RADSOK® high amperage contact technology, offering a reliable, high-current connection suitable for power distribution applications. Designed for easy field installation with standard crimp tools, it features an integral locking mechanism and protective plastic housing, ensuring secure, high-performance electrical connections. Suitable for high current, frequently plugged and unplugged setups, it meets industry standards for safety and durability. The lug is available in multiple sizes and ampacities, making it ideal for medical, test equipment, process control, heavy machinery, and rail systems. UL listed and RoHS compliant.
AMPHENOL-INDUSTRIAL C106471862X1 High Current Compression Lug Specifications:
- UL listed under file UL1977
- Engagement force: ~2 lbs. — 5 Ibs. (mating), ~10 Ibs. — 15 Ibs. (locking)
- Separation force: ~10 Ibs. — 15 Ibs.
- Contact surfaces: Silver plated on pin and socket
- Wire size ratings: 8 AWG (70 Amps), 6 AWG (100 Amps), 4 AWG (125 Amps), 2 AWG (175 Amps), 1 AWG (200 Amps), 1/0 AWG (250 Amps), 2/0 AWG (300 Amps)
- Max wire diameter: 0.17 in. (8 AWG) to 0.44 in. (2/0 AWG)
- Crimp code: Red, Blue, Gray, Brown, Green, Pink, Black
- Thread sizes: M3x0.5, M5x0.8, M8x1.25, M10x1.5
- Material: Silver plated contact surfaces, matte tin crimp barrel
- Housing: Black dielectric clamshell, snaps over connector
- Connection type: Field installable using standard crimp tools, no torque wrench needed
- Voltage rating: High amperage connections suitable for power systems
- RoHS compliant; UL listed
Buy the Buy Amphenol SurLok Compression Lug Part Number C106471862X1 Online
Order the Amphenol SurLok High Current Compression Lug C106471862X1 online today for secure, reliable power connections in industrial, medical, or heavy equipment applications. Designed for easy installation with standard crimp tools, it features a robust plastic housing and integral locking mechanism for added safety. Available in multiple sizes and ampacities, this UL-listed and RoHS-compliant lug ensures consistent high performance and durability. Perfect for applications involving frequent plugging and unplugging, it offers a reliable solution for high-current systems requiring quick, secure, and maintenance-friendly connections.
Get Amphenol SurLok Compression Lug C106471862X1 today—built for high current power distribution and long-lasting durability.
