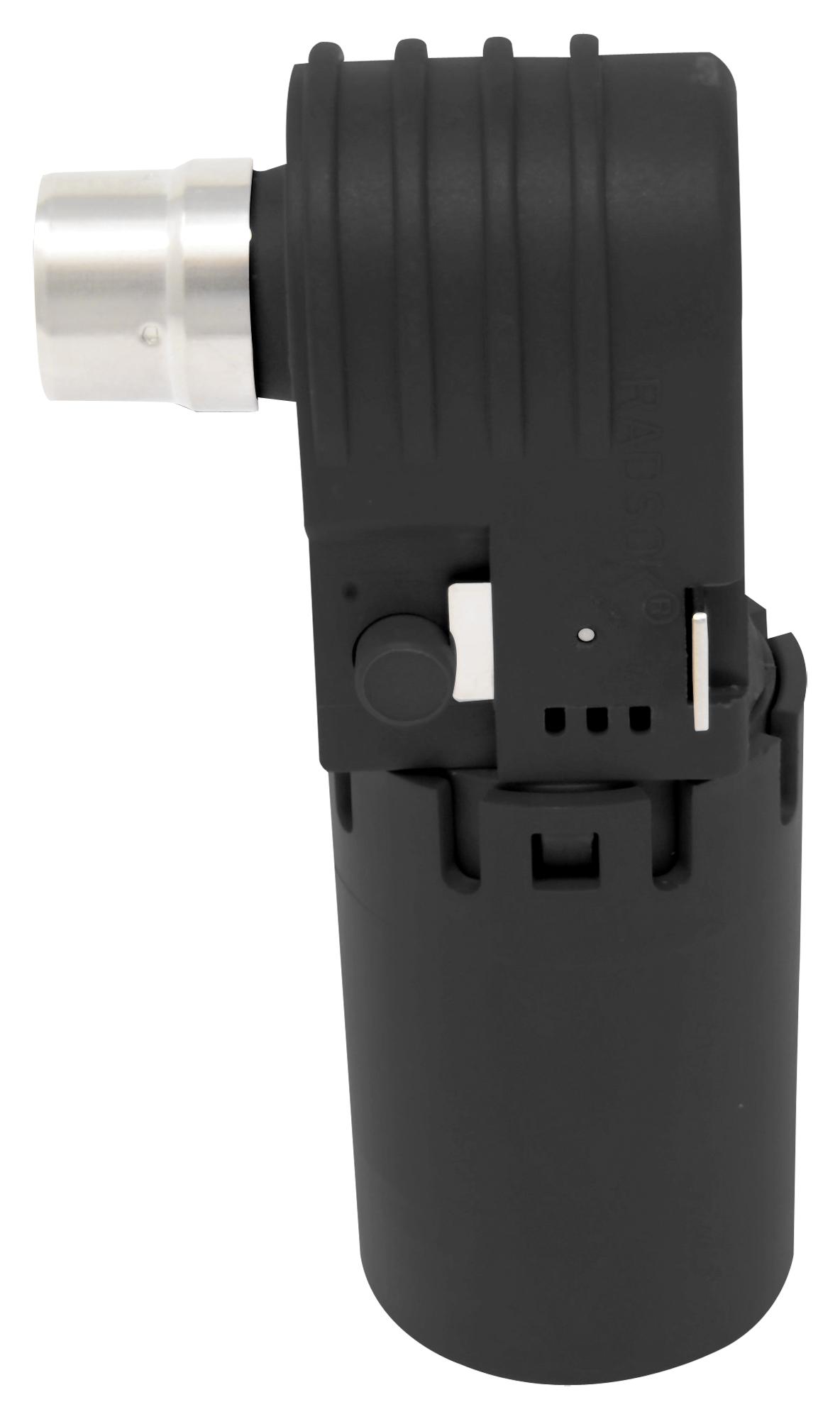

AMPHENOL INDUSTRIAL SLPPB50BSB1EH Sealed Power Connectors
The SurLok Plus™ compression lugs from Amphenol Industrial are highly reliable, field-installable connectors designed for demanding applications. These environmentally sealed lugs feature a compact design with secondary locking, quick lock, and press-to-release mechanisms, incorporating the latest R4 RADSOK® technology for robust performance. They support industry-standard crimp, screw, and busbar termination methods, eliminating the need for special torque tools. Suitable for electric vehicles, energy storage, railway, automation, heavy equipment, and medical fields, these connectors accommodate contact sizes 5.7mm, 8mm, and 10.3mm, rated up to 400A, with 1000VAC/DC voltage compatibility. They are available in multiple shell types and colors, with sealing options like IP67 and EMI shielding, making them versatile for harsh environments.
AMPHENOL INDUSTRIAL SLPPB50BSB1EH Sealed Power Connectors Specifications:
- Contact Size: 5.7mm (120A), 8.0mm (200A), 10.3mm (350A)
- Current Rating: Up to 400A
- Voltage Rating: 1000V AC/DC
- Temperature Range: -40°C to 125°C
- Sealing: IP67 touch-proof, optional sealing
- Material: Tool-less press-to-release, secondary locking
- Shell Types: Right-angle plug, straight plug, straight receptacle
- Color Options: Orange, black, red
- Keyway Angles: 60°, 90°, 120°, 150°, 180°, 270°
- EMI Shielding: Yes
- Suitable for wire gauges up to 95mm²
- Features: Locking spring, HVIL functions, press-to-release mechanism
- Certifications: UL94 V-0 flammability standard
- Operating Temperature: -40°C to 125°C
- Compatibility: Industry-standard crimp, screw, busbar terminations
Buy the Amphenol Series SurLok Plus EMI Connectors: SLPPB50BSB1EH
Purchase the Amphenol SurLok Plus™ EMI connectors online today and benefit from high current ratings up to 400A, IP67 environmental sealing, and versatile termination options. Designed for energy storage, transportation, automation, and industrial applications, these connectors combine robust R4 RADSOK® technology with easy press-to-release operation. They support multiple contact sizes, keyway angles, and colors, providing flexibility and reliable performance in harsh environments. Secure your electrical connections with top-quality, UL94 V-0 flame-rated connectors available for quick, hassle-free online ordering.
Order your Amphenol Series SurLok Plus EMI connectors today and ensure highly reliable, environmentally sealed performance for your demanding projects.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL SLPPB50BSB1EH?
You can click on the BUY or RFQ button to purchase SLPPB50BSB1EH from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part SLPPB50BSB1EH?
You can download the SLPPB50BSB1EH datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of SLPPB50BSB1EH?
AMPHENOL INDUSTRIAL
