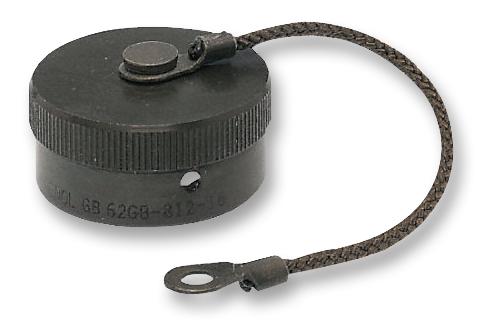

AMPHENOL LTD 62GB107014416 Miniature Bayonet Lock Connector
The 62GB Series connectors are miniature bayonet lock connectors meeting MIL-C-26482 standards, offered in brass or stainless steel. They feature high corrosion resistance zinc cobalt olive drab shells, gold-plated contacts for soldered connections, and various configurations including hermetic versions with glass sealed dielectric. Designed for demanding environments, these connectors support wide operating temperature ranges from -55°C to 125°C, with options for different finishes and key/keyway orientations to prevent mis-mating. Suitable for government, industrial, and international applications, they also include cable and box mounting styles with rigorous test schedules to ensure durability and reliability.
AMPHENOL LTD 62GB107014416 Miniature Bayonet Lock Connector Specifications:
- Shell Material: Brass or stainless steel
- Shell Finish: Zinc cobalt olive drab (other finishes available on request, e.g., cadmium plate)
- Operating Temperature Range: -55°C to +125°C
- Contact Material: Gold-plated for soldered connections
- Dielectric: Glass sealed for hermetic versions
- Inserts: Polychloroprene rubber compounded to Amphenol specifications
- Physical Sizes: Shell diameters from 8 mm (size 8) to 36.1 mm (size 24)
- Current Ratings: Contact size 12: 23 A in isolation, 20A through all contacts; size 8: 45 A in isolation, 40A through all contacts
- Voltage Ratings: Nominal working voltages up to 1500 V; Proof voltage up to 3000 V; Elevation rated for sea level up to 27,900 ft (8500 m)
- Shell Types: Box mounting, receptacle, plug, hermetic version available
- Key/Keyway: Multiple orientations (A, B, C, D, E, F, or normal), with rotated insert options
- Mounting Styles: Receptacle wall, cable, box, hermetic, threaded, flange, and single hole mounting styles
- Durability: Tested for impact, vibration, thermal cycling, salt mist, fluid resistance, and more
- Certifications: Compliant with MIL-C-26482E, tested according to approval schedules
Buy the Amphenol Series 62GB Bayonet Lock Connector: 62GB107014416
Secure your operations with Amphenol's 62GB Series miniature bayonet lock connectors. Meeting MIL-C-26482 standards, these connectors offer corrosion-resistant shells, gold-plated contacts for reliable solder connections, and versatile mounting options. Designed for high-temperature environments, they support a wide temperature range from -55°C to +125°C and are available in various configurations including hermetic versions with glass sealed dielectric. Ideal for industrial, government, and international applications, order online now for unmatched quality and dependable performance.
Order your Amphenol Series 62GB bayonet lock connector today and equip your projects with high-performance, durable connectors designed for demanding environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTD 62GB107014416?
You can click on the BUY or RFQ button to purchase 62GB107014416 from an authorized AMPHENOL LTD distributor.
How do I troubleshoot issues or seek technical support for part 62GB107014416?
You can download the 62GB107014416 datasheet or visit the AMPHENOL LTD website for support.
Who is the manufacturer of 62GB107014416?
AMPHENOL LTD
