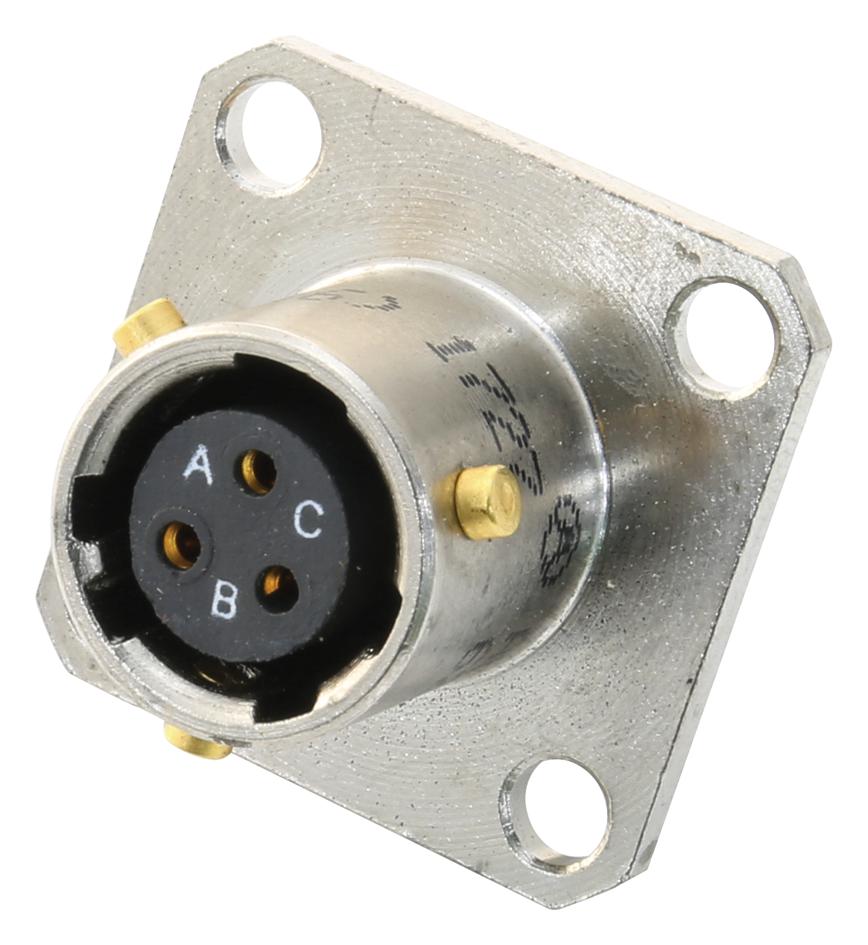

AMPHENOL LTD 62GB12E1210SN416 Miniature Bayonet Lock Connector
The 62GB Series connectors are miniature bayonet lock connectors compliant with MIL-C-26482 standards. Crafted from brass or stainless steel with corrosion-resistant finishes like zinc cobalt, they feature gold-plated contacts for soldering and polychloroprene rubber inserts for reliability across -55°C to +125°C. Suitable for various configurations, including hermetic glass-sealed variants, these connectors are used globally in military, aerospace, and industrial applications, offering robust, high-current, and high-voltage connections with keying to prevent mis-mating and reliable environmental sealing.
AMPHENOL LTD 62GB12E1210SN416 Miniature Bayonet Lock Connector Specifications:
- Material: Brass or stainless steel shells with zinc cobalt olive drab or special finishes
- Inserts: Polychloroprene rubber, gold-plated contacts for soldering
- Operating Temperature Range: -55°C to +125°C
- Shell Finish: Zinc cobalt olive drab; other finishes available on request
- Current Ratings: Contact size 12: 23 A in isolation, 20 A through all contacts; size 8: 45 A in isolation, 40 A through all contacts
- Voltage Ratings: From 330 V to 1500 V RMS, Peak depending on configuration and altitude
- Dielectric Sealing: Hermetic glass sealed dielectric for high reliability
- Keying System: Positive shell-to-shell keying with multiple key positions (A, B, C, E, F) to prevent mismatch
- Physical Dimensions: Shell sizes ranging from 8 to 24, various mounting styles including box, cable, and hermetic mounting
- Environmental Resistance: Corrosion-resistant, with sealing against moisture and dust, suitable for military and aerospace environments
Buy the Amphenol Series 62GB Solder Connector: 62GB12E1210SN416
Purchase the high-quality Amphenol Series 62GB miniature bayonet lock connector online today. Engineered for durability, with robust construction, gold-plated solder contacts, and rubber inserts, it ensures reliable high-voltage and high-current connections in demanding military, aerospace, and industrial projects. The connectors feature precise keying for correct mating, environmental sealing against moisture and dust, and operate across a broad temperature range. Secure your order now and enhance your system's safety, performance, and reliability with trusted industrial-grade connectors.
Order your Amphenol Series 62GB high-reliability connector with high-current capacity today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy AMPHENOL LTD 62GB12E1210SN416?
You can click on the BUY or RFQ button to purchase 62GB12E1210SN416 from an authorized AMPHENOL LTD distributor.
How do I troubleshoot issues or seek technical support for part 62GB12E1210SN416?
You can download the 62GB12E1210SN416 datasheet or visit the AMPHENOL LTD website for support.
Who is the manufacturer of 62GB12E1210SN416?
AMPHENOL LTD
