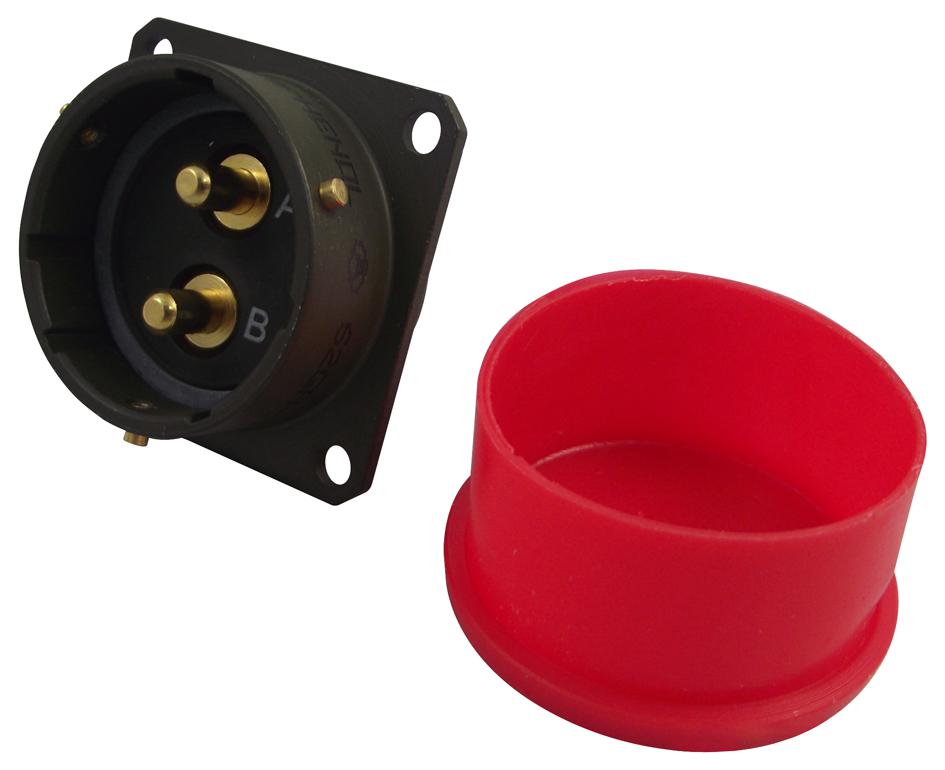

AMPHENOL LTD 62GB12E1802PN Miniature Bayonet Lock Connector
The 62GB Series connectors are miniature bayonet lock connectors designed to meet military standards MIL-C-26482. They feature robust construction with brass or stainless steel shells, high corrosion resistance zinc cobalt finishes, and gold-plated contacts for soldering. Suitable for various applications, these connectors are available with different mounting styles, including box, cable, and hermetic seals, offering high voltage and current ratings with derating for high temperatures and altitudes. They include keying options to prevent mis-mating and are used globally in government, defense, and industrial applications.
AMPHENOL LTD 62GB12E1802PN Miniature Bayonet Lock Connector Specifications:
- Shell Material: Brass or Stainless Steel
- Finish: Zinc cobalt olive drab; optional cadmium plating available
- Operating Temperature Range: -55°C to +125°C
- Insert Material: Polychloroprene rubber with gold-plated contacts
- Voltage Ratings: Up to 1500 V (nominal), derated at high altitude or high temperature
- Current Ratings: Contact size 12: 23 A; size 8: 45 A; maximum per contact at ambient 85°C
- Physical Dimensions: Shell sizes from 8 to 24 with corresponding measurements listed on pages 6-7
- Contacts: Pinned and socket configurations for various insert arrangements
- Keying: Shell-to-shell keying with fixed or alternate orientations
- Compliance: MIL-C-26482E, certificate No. 1713, first British connector to achieve this
- Protection: Various mounting styles including box, cable, hermetic, and threaded shells
- Special finishes available on request, including cadmium and electroless nickel
- Designed to prevent mis-mating with positive keying and rotated insert options
- Insulation: Polychloroprene rubber with high dielectric and temperature resistance
Buy the Amphenol Series 62GB Connector: 62GB12E1802PN
Buy your Amphenol Series 62GB miniature bayonet lock connector online today. These connectors meet MIL-C-26482 standards, featuring corrosion-resistant shells, gold-plated solder contacts, and multiple mounting styles including hermetic seals. They are ideal for demanding military and industrial applications, offering high voltage and current ratings, with derating for high temperature and altitude conditions. With a robust design and positive keying to prevent mis-mating, these connectors ensure dependable performance in your critical projects.
Order your Amphenol Series 62GB connector today and ensure your projects benefit from reliable, MIL-certified performance with versatile mounting options.
Frequently Asked Questions
Where can I buy AMPHENOL LTD 62GB12E1802PN?
You can click on the BUY or RFQ button to purchase 62GB12E1802PN from an authorized AMPHENOL LTD distributor.
How do I troubleshoot issues or seek technical support for part 62GB12E1802PN?
You can download the 62GB12E1802PN datasheet or visit the AMPHENOL LTD website for support.
Who is the manufacturer of 62GB12E1802PN?
AMPHENOL LTD
