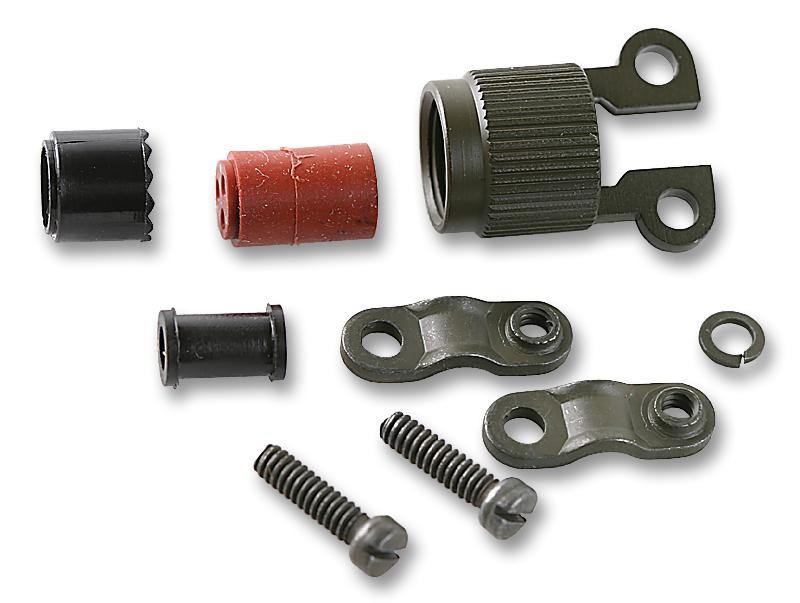

AMPHENOL LTD 62GB5851006S Miniature Bayonet Lock Connector
The 62GB series is a highly versatile miniature bayonet lock connector range compliant with MIL-C-26482 standards, featuring robust construction with brass or stainless steel shells and high-resistance zinc cobalt olive drab finishes. Equipped with polychloroprene rubber inserts and gold-plated contacts for soldered connections, these connectors are designed for operating temperatures from -55°C to 125°C. They accommodate various configurations, including hermetic glass-sealed dielectric versions, and include safety keying to prevent mismating. Suitable for diverse industrial, military, and aerospace applications requiring reliable, high-performance electrical connections.
AMPHENOL LTD 62GB5851006S Miniature Bayonet Lock Connector Specifications:
- Shell Material: Brass or stainless steel, with finishes including zinc cobalt olive drab, cadmium plate available on request.
- Insert Material: Polychloroprene rubber, with gold-plated contacts for soldering.
- Operating Temperature Range: -55°C to +125°C.
- Voltage Ratings: Up to 3000 V peak, dependent on model and altitude, with derating at high altitudes (above 8500m).
- Current Ratings: Contact size 8: 45 A maximum, Contact size 12: 23 A maximum (per contact in isolation).
- Physical Dimensions: Varying shell sizes from 8 to 24, with detailed measurements on pages 6 and 7, including thread sizes, diameters, and lengths specified for each model.
- Design Features: Positive keying with multiple orientation options (A, B, C, D, E, F), hermetic sealing with glass dielectric options, and surge resistance.
- Environmental Resistance: Corrosion-resistant finishes, hermetic versions with glass-sealed dielectric, and compliance with military specifications.
- Certifications & Standards: MIL-C-26482E, compliant with international military and industrial standards, including environmental and durability tests.
- Applications: Suitable for military, aerospace, industrial automation, and other critical systems requiring reliable, sealed electrical connections.
Buy the Amphenol 62GB – Reliable Connectors for Industrial Applications
Purchase your Amphenol 62GB series connector online today and enjoy fast delivery of high-quality, reliable connectors ideal for military, aerospace, and industrial projects. Designed to withstand harsh environments with MIL-C-26482 compliance, these connectors feature corrosion-resistant finishes, precise soldered contacts, and keying to prevent mismating. Whether for hermetic sealing or heavy-duty applications, buy online now and secure the optimal solution for secure, durable electrical connections in critical systems.
Order your Amphenol 62GB connector today and ensure your projects benefit from dependable, MIL-spec high performance electrical connections.
Frequently Asked Questions
Where can I buy AMPHENOL LTD 62GB5851006S?
You can click on the BUY or RFQ button to purchase 62GB5851006S from an authorized AMPHENOL LTD distributor.
How do I troubleshoot issues or seek technical support for part 62GB5851006S?
You can download the 62GB5851006S datasheet or visit the AMPHENOL LTD website for support.
Who is the manufacturer of 62GB5851006S?
AMPHENOL LTD
