Advantech Automation BB232CDT Serial Data Tap

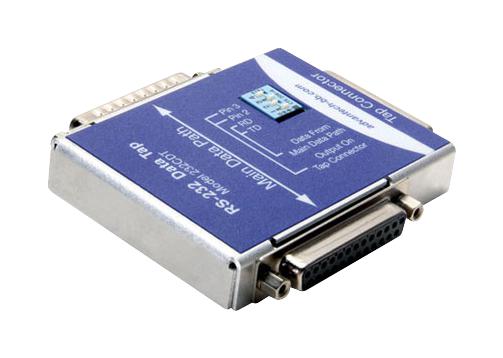

The RS-232 Data Taps model BB-232CDT allows monitoring of serial data streams by tapping into RS-232 lines to check transmitted data between devices. It features straight-through ports with a DB25 female connector and a monitoring port, enabling transparent data recording without external power. Its compact inline design supports easy installation in industrial settings, with operating temperatures ranging from 0°C to +70°C and storage temperatures from -40°C to +85°C. Compliance includes CE and RoHS standards, making it suitable for various communication and automation applications.
Advantech Automation BB232CDT Serial Data Tap Specifications:
- Serial: RS-232, straight-through ports: DB9 male, DB9 female; DB25 male, DB25 female
- Monitoring port: DB9 or DB25 female
- Installation: In-line
- Weight: BB-232CDT: 90.7 gm (0.2 Ib); BB-9PCDT: 63.5 gm (0.14 Ib)
- Operating Temperature: 0°C to +70°C (+32°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Operating Humidity: 0 to 95%, non-condensing
- MTBF: BB-232CDT: 2,010,454 hours; BB-9PCDT: 3,438,790 hours
- Standards: CE, RoHS, WEEE compliant
- Dimensions: Includes detailed measurements for models BB-232CDT and BB-9PCDT
Buy the Buy Advantech RS-232 Data Taps Part Number BB-232CDT Online
Enhance your serial communication setup with the Advantech RS-232 Data Tap. Designed for seamless in-line integration, this device allows you to monitor and record data streams from RS-232 lines effortlessly. With its plug-and-play implementation, it requires no external power and supports standards like CE and RoHS. Ideal for industrial environments, the Data Tap ensures reliable data capture over a wide temperature range. Purchase online today and optimize your serial data management with high-quality hardware designed for dependable performance and easy setup.
Buy Advantech RS-232 Data Taps BB-232CDT now and experience reliable serial data monitoring with easy installation and high durability.
