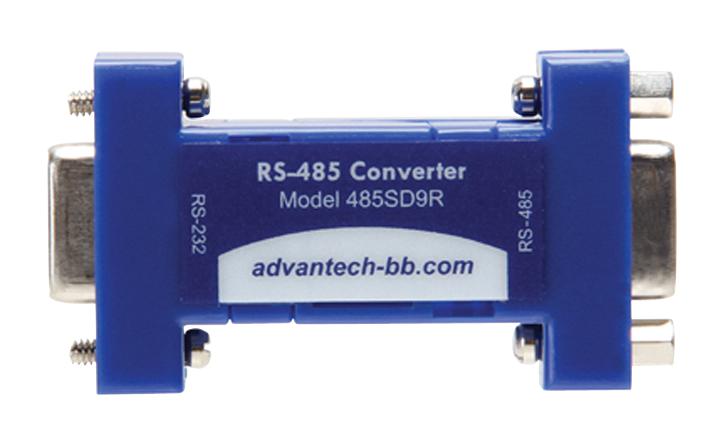

Advantech Automation BB485SD9R RS-485 Converter
The RS-485 Converter is a compact, port-powered device designed to extend RS-232 data signals up to 1.2 km. It converts RS-232 transmit and receive signals to RS-485 standards, supporting baud rates up to 115.2 kbps. The converter is powered from RS-232 handshake lines, eliminating external power supply needs, with an auxiliary 12-16V DC option for the terminal board model. Enclosed in a durable plastic case, it features biasing resistors, easy wiring, and meets various international safety and electromagnetic standards, making it ideal for industrial and automation applications.
Advantech Automation BB485SD9R RS-485 Converter Specifications:
- Data Rate: 115.2 kbps maximum
- RS-232 Connector: DB9 female (BB-485SD9R)
- RS-485 Connector: DB9 female or terminal block (BB-485SD9TB)
- Biasing Resistors: 47k Ohms
- Power Supply: From RS-232 handshake lines; external 12-16V DC option (BB-485SD9TB only)
- Input Voltage: 12V DC (BB-485SD9TB)
- Power Consumption: 40mA maximum
- Dimensions: BB-485SD9R: 60.0 x 32.0 x 16.0 mm, BB-485SD9TB: 87.0 x 32.0 x 16.0 mm
- Enclosure: Plastic
- Weight: 81.6 grams
- Operating Temperature: 0 to +70°C
- Storage Temperature: -40 to +85°C
- Operating Humidity: 0 to 95%, non-condensing
- Standards: FCC Part 15, CE, CISPR, EN 55032, EN 55024, EN 61000-6-3, EN 61000-6-1
- Features: Extends RS-232 signals up to 1.2 km, automatic send control, no software drivers required, suitable for industrial environments
Buy the Buy EES RS-485 Converter Part Number BB485SD9R Online
Purchase the EES RS-485 Converter online for seamless serial communication over distances up to 1.2 km. Support for baud rates up to 115.2 kbps and automatic data control features make it ideal for industrial automation and data acquisition. Its port-powered design eliminates external power supplies, simplifying installation. The robust plastic enclosure ensures durability, while compliance with international standards guarantees safety and electromagnetic compatibility. A perfect choice for reliable, long-range RS-232 to RS-485 conversion in various environments.
Buy EES BB-485SD9R RS-485 Converter now and experience reliable long-distance serial data communication in industrial applications.
