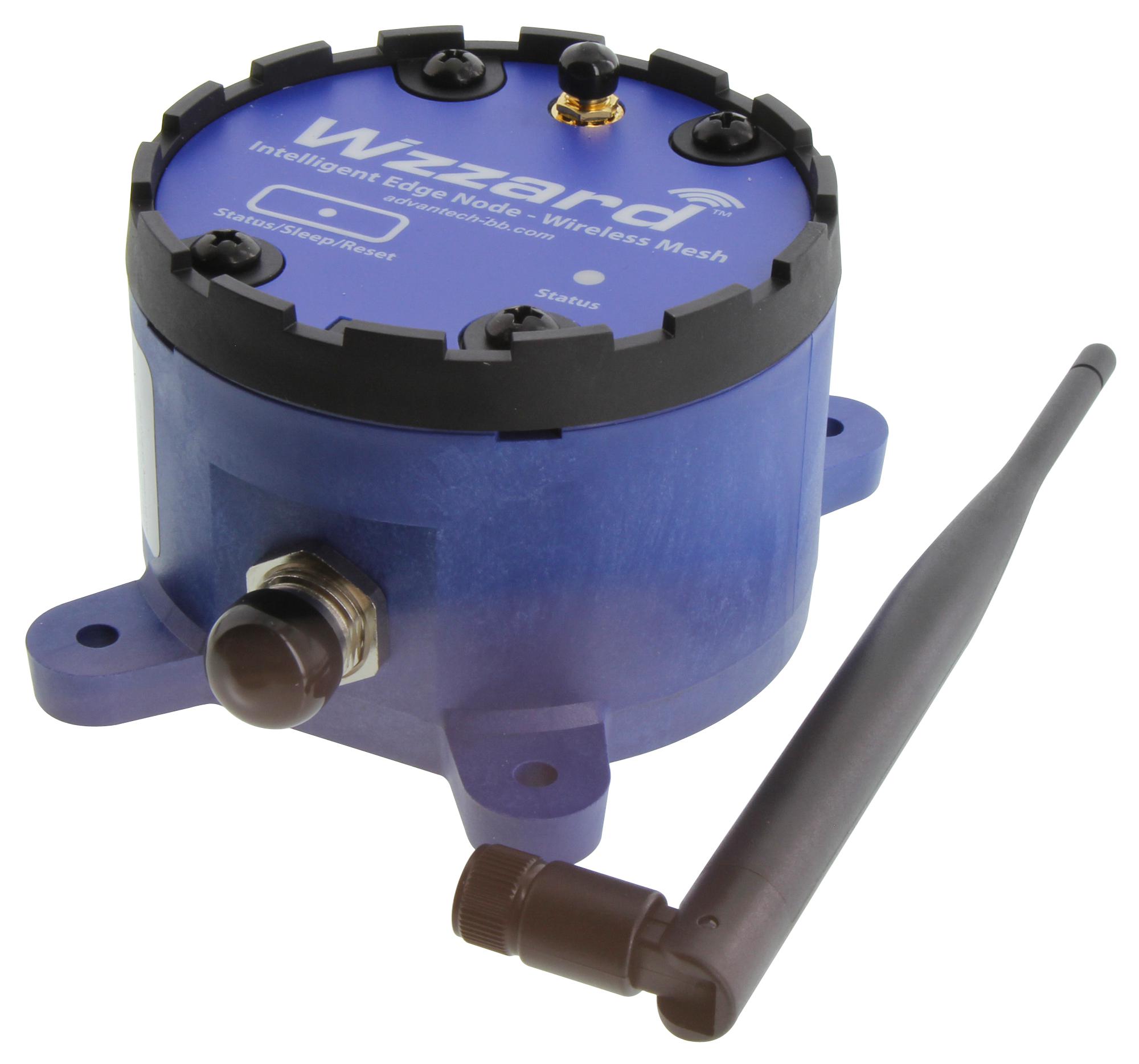

Advantech Automation BBWSD2M3101P2K Wireless Sensor
The Wzzard Mesh Wireless Sensors series offers rugged, IP67-rated, industrial-grade wireless sensor nodes utilizing ultra-low power 802.15.4e SmartMesh IP technology. These scalable devices connect to various industry-standard sensors via M12 or conduit fittings, supporting analog, digital, and thermocouple inputs with internal temperature sensing. Designed for harsh environments, they feature long-lasting battery life over 5 years, secure AES encryption, and easy installation options including magnetic mounts. Ideal for indoor and outdoor industrial applications requiring reliable wireless sensor data transmission with minimal maintenance.
Advantech Automation BBWSD2M3101P2K Wireless Sensor Specifications:
- Internal (2) 3.6V 2400 mAH Lithium Thionyl Chloride AA Batteries
- Battery Life >5 years with 1 min. sampling interval
- Voltage Range 0-48 VDC; Digital Input 0-48 VDC; Analog Inputs 0-10 VDC / 0-20 mA / 4-20 mA
- Operating Temperature -40 to +80 °C; Storage Temperature -40 to +85 °C
- Enclosure: IP67-rated fiber reinforced polyester PBT; Dimensions: 194 mm length; Weight: 0.34 kg (0.75 lb)
- Wireless Protocol: 802.15.4e SmartMesh IP; Frequency Band: 2.400-2.4835 GHz; Range: Indoor 100 m, Outdoor 300 m
- Antenna: Omnidirectional RP-SMA, 3.8 dBi, 2.4 GHz; Power Output: 8 dBm
- Security: 128-bit AES encryption, message integrity, key rotation; Operating Humidity: 0-95% non-condensing
- Approvals: CE, UL, RoHS, FCC, IC, WEEE, and more for industrial safety and electromagnetic compatibility
Buy the Buy Advantech Wzzard Mesh Wireless Sensors Part Number BBWSD2M3101P2K Online
Purchase the Advantech Wzzard Mesh Wireless Sensor series online today to benefit from robust, secure, and scalable industrial wireless data solutions. Designed for harsh environments, these IP67-rated sensors connect seamlessly via mesh networking, supporting analog, digital, and thermocouple inputs. With long-lasting battery life exceeding 5 years, easy outdoor/indoor installation, and advanced encryption, these sensors optimize your industrial monitoring and control processes. Click now to empower your projects with reliable, wireless connectivity and enhance operational efficiency.
Order your Advantech Series BBWSD2M3101P2K industrial wireless sensor today and ensure reliable data acquisition in tough environments.
Frequently Asked Questions
Where can I buy Advantech Automation BBWSD2M3101P2K?
You can click on the BUY or RFQ button to purchase BBWSD2M3101P2K from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part BBWSD2M3101P2K?
You can download the BBWSD2M3101P2K datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of BBWSD2M3101P2K?
Advantech Automation
