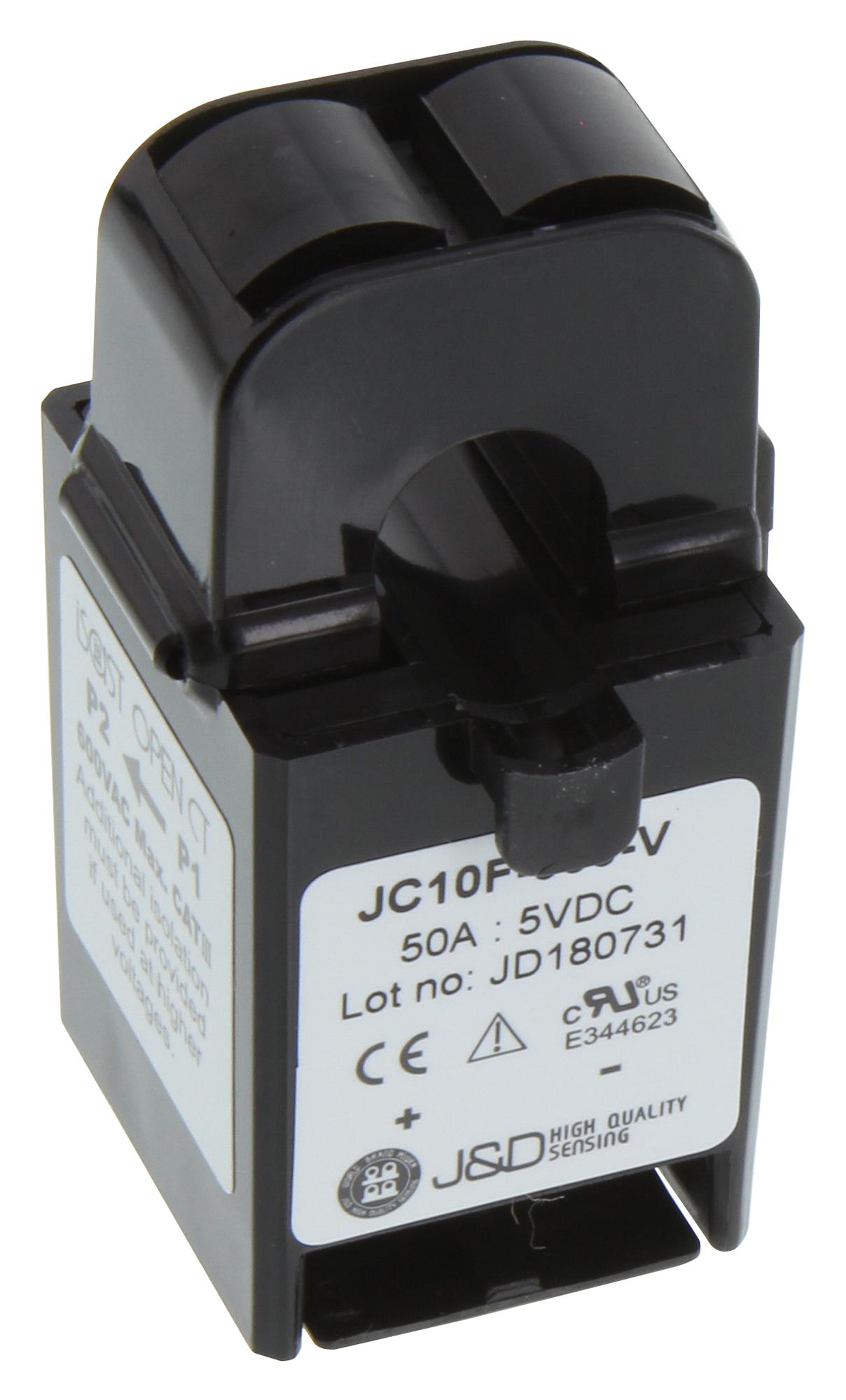

Advantech Automation BBJC10F50V Current Sensor
These split-core current transducers are ideal for energy management, current measurement, and system monitoring. Designed for ease of connection to electronic sub-meters, they support applications like load monitoring, protection, and predictive maintenance of motors, pumps, and HVAC systems. The models feature compact all-in-one structures, direct integration with PLCs, and are suitable for distributed power line carrier systems. They are compliant with UL, CSA, CE, and RoHS standards, offering reliable analog output signals for industrial automation and process control systems.
Advantech Automation BBJC10F50V Current Sensor Specifications:
- Output Voltage: 0~5V DC (average) / 0~rated current, 7.5V DC limiter built-in
- Maximum Allowable Current: 100% continuous, 150% for 1 minute
- Accuracy/Linearity: ±2% FS, dynamic range 1:100 (50/60 Hz sinewave)
- Response Time: 300 ms
- Voltage withstand: DC500V / 100MΩ or more (between core and output terminals)
- Dielectric Strength: AC 2000V / 1 min. (between core and output terminals)
- Sensing Aperture: 10mm (clamp-on type)
- Tightening Torque: 0.3Nm
- Operational Temperature: -20°C to +50°C, humidity <85% RH, no condensation
- Storage Conditions: -30°C to +90°C, humidity <85%, no condensation
- Output Terminals: 2 x M3 screw with terminal covers
- Product Models: BB-JC10F50-V, BB-JC24S250-V, BB-JC36S500-V
Buy the BB SMARTWORX BB-JC10F50-V – Reliable Current Transducer for Industrial Applications
Experience accurate load monitoring and system protection with our split-core current sensors. Designed for seamless PLC integration, these models support energy management, predictive maintenance, and automation across various industrial settings. Their compact, clamp-on design makes installation straightforward, enabling real-time current measurement for motors, pumps, and HVAC systems. Certified with UL, CSA, CE, and RoHS standards, they ensure safety and reliability. Improve operational efficiency, prevent failures, and monitor system load trends effectively with our high-performance current transducers available online now.
Get BB SMARTWORX BB-JC10F50-V today—built for precise current measurement and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy Advantech Automation BBJC10F50V?
You can click on the BUY or RFQ button to purchase BBJC10F50V from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part BBJC10F50V?
You can download the BBJC10F50V datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of BBJC10F50V?
Advantech Automation
