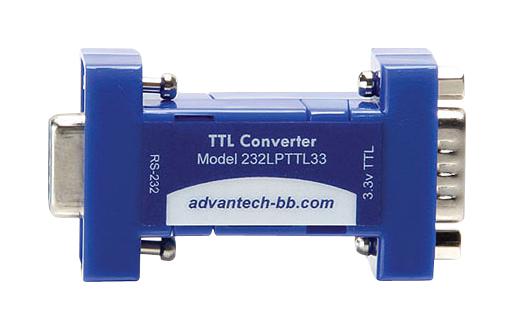

Advantech Automation BB232LPTTL33 TTL to RS-232 Converter
The TTL/RS-232 port powered converters, models BB-232LPTTL and BB-232LPTTL33, facilitate seamless bi-directional communication between TTL and RS-232 interfaces at data rates up to 115.2 kbps. They convert two channels (transmit and receive) for TTL to RS-232 signals and support 5V or 3.3V TTL levels, respectively. Powered from RS-232 handshake lines without external power, these converters support connections with microcontrollers or PLCs, ensuring reliable translation of signals with specified voltage levels, and comply with industry standards for emissions and electromagnetic compatibility.
Advantech Automation BB232LPTTL33 TTL to RS-232 Converter Specifications:
- Data Rate: 115.2 Kbps maximum
- Connector: DB9 female (RS-232 side), DB9 male (TTL side)
- Power: From RS-232 handshake lines, no external supply needed
- Operating Temperature: 0 to +70 °C
- Storage Temperature: -40 to +85 °C
- Operating Humidity: 0 to 95%, non-condensing
- Signals Supported: TD, RD, RTS, CTS
- Dimensions: 5.29 x 3.33 x 1.74 cm (2.08 x 1.31 x 0.66 in)
- Weight: 36.24 grams (0.08 lbs)
- Compliance: FCC Part 15, Class B; CE; RoHS; WEEE; EN 55024
- Voltage Levels: BB-232LPTTL at 5V, BB-232LPTTL33 at 3.3V
- MTBF (BB-232LPTTL33): 1,674,682 hours
Buy the Buy Advantech TTL RS-232 Converter Part Number BB232LPTTL33 Online
Enhance your serial communication setup with our advanced TTL to RS-232 converters. Designed for bi-directional data transfer, they operate at data rates up to 115.2 kbps, supporting both 5V and 3.3V TTL levels. Powered directly from RS-232 handshake lines, no external power is required, making installation simple and reliable. Ideal for microcontrollers and PLCs, these converters ensure seamless integration with industrial and automation systems, offering compliance with EMC standards and a durable, compact design for various technical applications.
Buy Advantech BB232LPTTL33 now and experience unmatched reliability and performance in TTL to RS-232 signal conversion.
