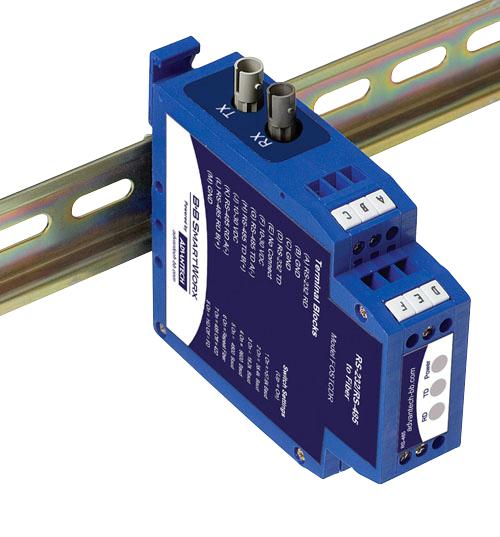

Advantech Automation BBFOSTCDR Serial Fiber Converter
The fiber optic converter extends serial data communication up to 4 km with optical isolation, supporting RS-232, RS-422, and RS-485 standards. It features wide voltage input, EMI/RFI protection, LED indicators, and operation in industrial environments. Models FOSTCDR and FOSTCDR-INV differ in fiber idle state behavior; the former keeps the light on, while the latter turns it off when idle. Easy to install with DIP switches for configuration and terminal block connections, suitable for industrial automation and networking applications.
Advantech Automation BBFOSTCDR Serial Fiber Converter Specifications:
- Serial Technology: RS-232 max data rate 115.2 kbps, RS-422/485 max 460.8 kbps
- Connector: Terminal block (24 to 14 AWG), RS-232: TD, RD, GND; RS-422/485: Data A/B, RDA/RDB, GND
- Isolation: 2KV RMS, 1-minute, optical method, protected 2-way input/output lines
- Wavelength: Multimode / 820 nm, Output Power: 17 to -10 dBm, Sensitivity: -24 to -25.4 dBm
- Maximum Distance: 4 km (2.5 miles), Cable: 62.5/125 micro-meter fiber, Link supports multi-drop modes
- Input Voltage: 10-30 VDC, Power Consumption: 1.7 Watts, Dimensions: 106 x 7.9 x 2.5 mm
- Operating Temperature: -40 to +80°C, Humidity: 0-95%, Certifications: UL, FCC, CE
- LED Indicators: Serial TX, RX, Power, Enclosure: 3mm DIN mount plastic, Weight: 182g
Buy the Advantech FOSTCDR – Reliable Serial to Fiber Optic Converter for Industrial Applications
Experience seamless industrial communication with the Advantech fiber optic converter, supporting serial standards up to 4 km with robust optical isolation. Easy to install with DIP switches and terminal block connections, suitable for diverse industrial environments. Supports RS-232, RS-422, RS-485, with LED indicators for status monitoring. The models FOSTCDR and FOSTCDR-INV differ in fiber idle state behavior, ensuring flexibility for your precise application needs. Durable, compact, and compliant with industry standards, this converter ensures reliable data transmission for automation, networking, and control systems.
Buy Advantech FOSTCDR fiber optic converter now and enhance your industrial network with reliable, long-distance serial communication solutions.
Frequently Asked Questions
Where can I buy Advantech Automation BBFOSTCDR?
You can click on the BUY or RFQ button to purchase BBFOSTCDR from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part BBFOSTCDR?
You can download the BBFOSTCDR datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of BBFOSTCDR?
Advantech Automation
