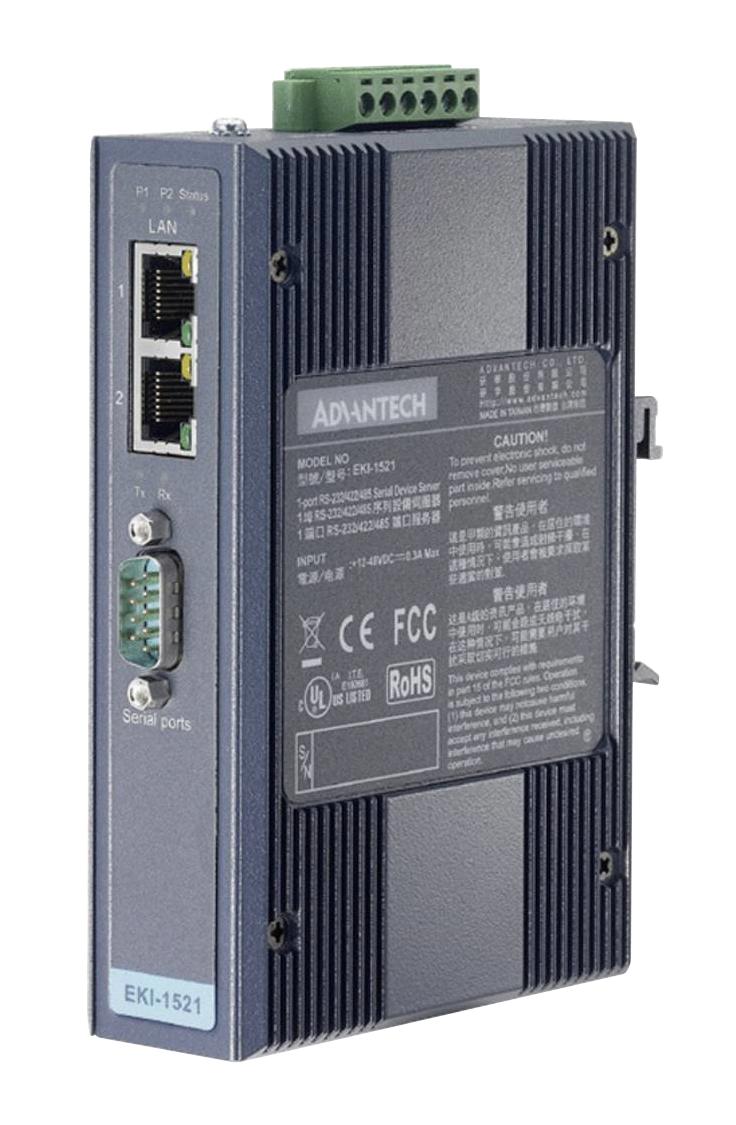

Advantech Automation EKI1521CE Serial Device Server
The serial device server connects RS-232, RS-422, and RS-485 serial devices such as PLCs, meters, sensors, and barcode readers to an Ethernet LAN. Featuring dual 10/100 Mbps Ethernet ports for network redundancy, it supports multiple operation modes including COM port redirection, TCP server/client, and UDP, ensuring seamless serial-to-IP communication. The device offers robust protections like 15 KV ESD and surge protection, configurable via Windows utility, Telnet, or web browser. Compatible with Windows and Linux, it enables reliable, remote serial device management in industrial environments with wide operating temperature support, making it ideal for industrial automation, manufacturing, and control systems.
Advantech Automation EKI1521CE Serial Device Server Specifications:
- Ethernet Ports: 2 x 10/100 Mbps, RJ45 connectors, IEEE 802.3/802.3u, supports network redundancy
- Serial Ports: RS-232/422/485 selectable, DB9 male connector, protection with 15 KV ESD, line-to-line 2 KV surge protection
- Supported Baud Rate: 50 bps to 921.6 kbps, configurable with hardware support for diverse serial protocols
- Operation Modes: COM port redirection, TCP Server, TCP Client, UDP, peer-to-peer communication
- Compatibility: Windows 2000/XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2012, Linux, SNMP support
- Physical Dimensions: 95 x 140 x 36.6 mm; EKI-1521: 472g, EKI-1522: 480g, EKI-1524: 555g; Metal enclosure, DIN-rail and wall mounting
- Power Supply: 12-48 V DC with redundant dual inputs, terminal block connection, typical power consumption 3.2W to 4.1W
- Operating Environment: -10°C to 60°C (14°F to 140°F), wide temperature models -40°C to 75°C (-40°F to 167°F), humidity 10-95% RH
- Regulatory: CE, FCC Part 15 Subpart B (Class A), EMC compliance
- Protection: Port-to-Port isolation, serial-to-ethernet 2 kV, serial-to-power 2 kV, Ethernet to power 15 KV
- Mounting: DIN-rail, Wall mounting; Dimensions approximate 95 x 140 x 36.6 mm, panel cut-out 104 x 140 mm
Buy the Industrial Equipment RS-232/422/485 Ethernet Adapter for Industrial Applications
Enhance your industrial automation setup with this reliable serial device server supporting RS-232, RS-422, and RS-485 protocols. Featuring dual Ethernet ports for network redundancy, adjustable baud rates up to 921.6 kbps, and multiple operation modes including COM port redirection, TCP, and UDP, it ensures versatile communication with serial devices like PLCs, sensors, and barcode readers. Equipped with advanced protections such as 15 KV ESD and surge suppression, it is suitable for rugged environments with wide temperature ranges. Easy to configure via Windows utility, Telnet, or web browser, it guarantees robust, remote management of serial equipment in industrial environments.
Buy industrial serial device server now and experience unmatched reliability and seamless remote serial device management.
Frequently Asked Questions
Where can I buy Advantech Automation EKI1521CE?
You can click on the BUY or RFQ button to purchase EKI1521CE from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part EKI1521CE?
You can download the EKI1521CE datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of EKI1521CE?
Advantech Automation
