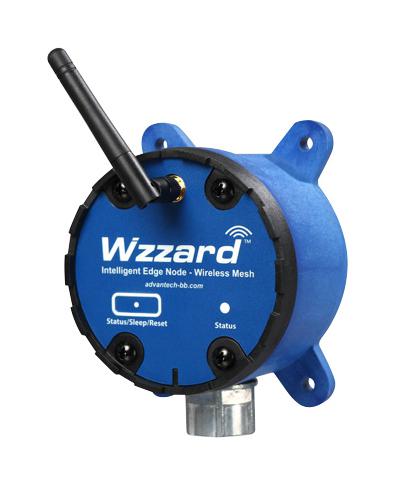

Advantech Automation BBWSD2C31010 Wireless Sensor
The Wzzard mesh wireless sensor series offers robust industrial wireless connectivity with ultra-low power consumption and IP67 rated rugged enclosures, suitable for harsh environments. These scalable nodes support a variety of industry-standard sensors via analog, digital, and thermocouple interfaces. Equipped with 802.15.4e SmartMesh IP technology, they ensure reliable wireless mesh networking with up to 99.999% connectivity and self-configuration. Perfect for indoor and outdoor applications, they include internal temperature sensors, multiple power options, and secure AES encryption for safe data transmission.
Advantech Automation BBWSD2C31010 Wireless Sensor Specifications:
- Battery: (2) 3.6V 2400 mAH Lithium Thionyl Chloride AA Batteries, >5 years lifespan
- Wireless Standard: 802.15.4e SmartMesh IP, 2.4 GHz, 15 channels, 250 kbps data rate
- Range: Indoor up to 100 meters, outdoor up to 300 meters
- Antenna: RP-SMA, Omnidirectional, 3.8 dBi
- Enclosure: IP67 rated, fiber reinforced polyester PBT
- Physical Dimensions: Length 194 mm (7.64 in), Diameter 50.5 mm, Weight 0.34 kg (0.75 lb)
- Operating Temperature: -40 to +80°C, Storage: -40 to +85°C
- Input Voltage: 40-30 VDC @ 40mA peak, Digital Input: 0-48 VDC
- Analog Inputs: 0-10 VDC, 0-20 mA, 4-20 mA, 2 inputs (model dependent)
- Digital Inputs: 1-6 inputs (model dependent), Frequency: 1-1KHz
- Security: 128-bit AES encryption, message integrity, synchronized key rotation
- Installation: indoor/outdoor, magnetic or mounting flanges options
- Certifications: UL, CE (LVD, RED), RoHS, WEEE, FCC Part 15, IC, Class 1 Division 2 (conduit models only)
Buy the Buy Advantech Wzzard Mesh Wireless Sensors Part Number BBWSD2C31010 Online
Purchase the Advantech Wzzard wireless sensor series online today to ensure reliable industrial connectivity in harsh environments. These sensors feature robust IP67 enclosures, ultra-low power operation with a battery life exceeding five years, and support for multiple industry-standard sensors via analog, digital, and thermocouple interfaces. Equipped with advanced 802.15.4e SmartMesh IP technology, they provide secure, scalable wireless mesh networking capable of maintaining up to 99.999% connectivity even in RF challenging environments. Ideal for indoor and outdoor applications, simplify your installation withMounting options and secure data transmission using AES encryption, all available through trusted online channels.
Order your Advantech Series BBWSD2C31010 wireless sensor node today, and enhance your industrial monitoring with reliable, low-power sensor connectivity.
