Advantech Automation PCIE1602BAE Serial Communication PCIe Card
The PCIE-1602BAE is a 2-port RS-232/422/485 PCI Express communication card that supports PCI Express bus 2.0 and data transmission speeds up to 921.6 kbps. It features versatile port configurations, including RS-232, RS-422, and RS-485, suitable for various industrial and automation applications. The card is compatible with Windows XP, 7, 8, 10, and Linux operating systems. It includes a 256-byte FIFO UART controller, surge and ESD protection, and a compact dimensions profile for easy installation in standard PCIe slots, making it ideal for reliable serial communication needs.
Advantech Automation PCIE1602BAE Serial Communication PCIe Card Specifications:
- Bus Type: PCI Express bus 2.0 compliant
- Bus Interface: PCI Express x1
- Connectors: 2x DB9, male
- Dimensions: 119.63 x 111 mm
- Power Consumption: 260mA @ 33V
- Communication Controller: XR17V352
- Data Bits: 5, 6, 7, 8
- FIFO Buffer: 256 bytes
- Supported Speeds: 50 bps - 921.6 kbps
- Parity: None, Odd, Even, Mark, Space
- Stop Bits: 1, 1.5, 2
- OS Support: Windows XP/7/8/10, Linux
- Environmental: Humidity 5-95% RH, non-condensing; Temperature -10°C to 60°C
- Protection: Surge and ESD protection, models include T5KV, 15KV air/contact

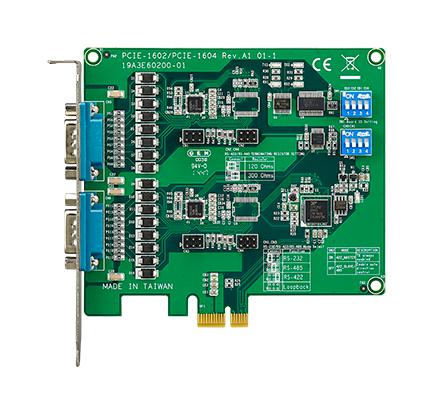

Buy the Innovative Series PCIE-1602BAE RS-232/422/485: PCIE-1602BAE
Enhance your serial communication capabilities with the PCIe-1602BAE PCI Express card featuring dual RS-232/422/485 ports, high-speed data transfer up to 921.6 kbps, and compatibility with Windows and Linux. Its compact design ensures easy installation in standard PCIe slots, making it ideal for industrial automation, data acquisition, and embedded systems. Built-in surge and ESD protection ensure reliable operation in demanding environments. Whether for legacy equipment or new projects, this versatile card provides robust, high-performance serial communications for your professional or industrial applications.
Order your Innovator Series PCIE-1602BAE PCI Express communication card today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Advantech Automation PCIE1602BAE?
You can click on the BUY or RFQ button to purchase PCIE1602BAE from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part PCIE1602BAE?
You can download the PCIE1602BAE datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of PCIE1602BAE?
Advantech Automation
