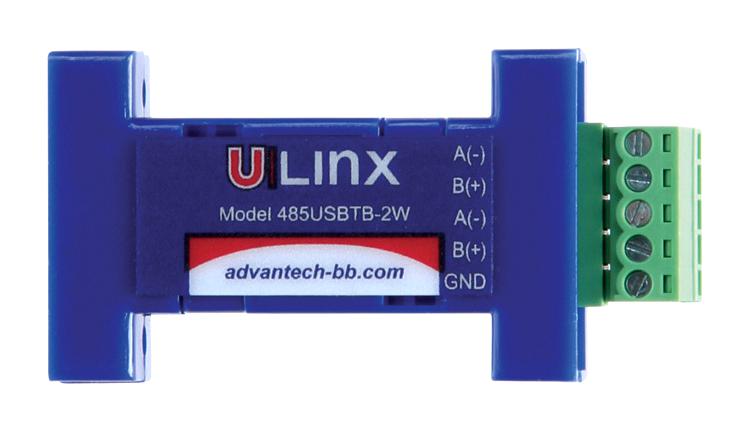

Advantech Automation BB485USBTB2WA USB RS-485 Converter
The USB to RS-485 Miniature Converter provides seamless connection between USB ports and RS-485 networks, supporting data rates up to 921.6 Kbps. Its compact, lightweight plastic enclosure measures 65.0 x 32.0 x 16.0 mm and weighs 104.3 g with cable, making it ideal for field service and portable applications. It features a high retention USB Type B connector, removable terminal block for easy wiring, and operates within a temperature range of 0 to +70°C. Compliant with FCC, CE standards, and RoHS directive, it offers reliable performance in industrial environments.
Advantech Automation BB485USBTB2WA USB RS-485 Converter Specifications:
- Serial Technology: RS-485 2-Wire Data A(-), Data B(+), Ground
- Connector: Removable terminal block (28 to 16 AWG)
- Data Rate: Up to 921.6 Kbps
- USB Technology: USB Type B female, high retention port
- USB Data Rate: 12 Mbps (USB 2.0 compliant)
- Power: Source USB port, input voltage 5 V DC, consumption ~0.5 W
- Dimensions: 65.0 x 32.0 x 16.0 mm
- Enclosure: In-line mounted, plastic
- Weight: 104.3 g with cable
- Operating Temperature: 0 to +70°C
- Storage Temperature: -40 to +85°C
- Operating Humidity: 0 to 95% (non-condensing)
- MTBF: 1,869,313 hours based on MIL 217F Parts Count Reliability Prediction
- Standards & Certifications: FCC, CE, RoHS, EN 55032, EN 55024, EN 61000-6
Buy the Innovative Series USB to RS-485 Miniature Converter: BB-485USBTB2W-A
Discover the versatile USB RS-485 Converter designed for industrial applications. Compact, lightweight, and easy to install, it supports data rates up to 921.6 Kbps and is powered directly from your USB port. The device features a removable terminal block for simple wiring, durable plastic enclosure, and complies with FCC, CE, and RoHS standards for safety and environmental considerations. Ideal for connecting RS-485 devices in field environments, it offers reliable, high-performance communication with comprehensive compatibility across Windows operating systems. Order online today for seamless industrial network integration.
Order your USB to RS-485 Tiny Converter BB-485USBTB2W-A today and enhance your industrial networking with reliable, compact connectivity.
Frequently Asked Questions
Where can I buy Advantech Automation BB485USBTB2WA?
You can click on the BUY or RFQ button to purchase BB485USBTB2WA from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part BB485USBTB2WA?
You can download the BB485USBTB2WA datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of BB485USBTB2WA?
Advantech Automation
