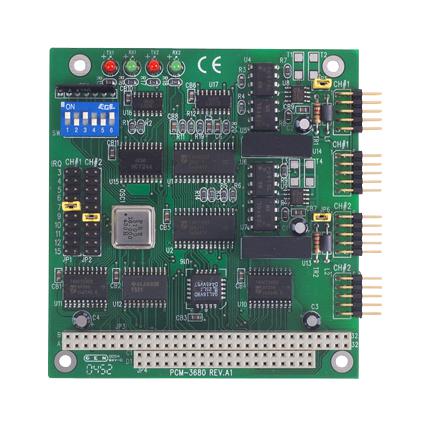

Advantech Automation PCM3680BE Dual-port CAN Bus Module
The PCM-3680 is a dual-port isolated CAN-bus module compatible with PC/104 and PCI-104 standards, supporting high-speed data transmission up to 1 Mbps. It features optical isolation protection of 2,500 Vac to ensure reliable communication in industrial environments, wide operating temperature range from -25°C to 85°C, and supports CAN2.0 AB protocol with CAN_H and CAN_L signals. Built with a SJA-1000 CAN controller and TJA1051T transceiver, it is suitable for applications requiring robust, noise-immune CAN communication in demanding conditions.
Advantech Automation PCM3680BE Dual-port CAN Bus Module Specifications:
- Card Interface: PC/104 or PCI-104
- Connectors: 2x DB9-M with cable (PCM-3680), 2x DB9-M (PCM-3680I)
- Dimensions: 90x96 mm (PCM-3680), 90x96 mm (PCM-3680I)
- Ports: 2 CAN channels
- Power Consumption: 5V at 400mA typical
- CAN Controller: SJA-1000
- CAN Transceiver: 820250 (PCM-3680), TJA1051T (PCM-3680I)
- Protocol: CAN2.0 AB
- Speed: Up to 1 Mbps
- CAN Frequency: 16 MHz
- Signal Support: CAN_H, CAN_L
- Isolation Protection: 2,500 Vac
- Operating Temperature: -25°C to 85°C
- Storage Temperature: -40°C to 85°C
Buy the Buy Industrial Communication Module Part Number PCM3680BE Online
Purchase the PCM-3680BE dual-port isolated CAN-bus module online and enjoy rapid, secure delivery. Designed for industrial environments, it supports high-speed data transfer up to 1 Mbps, with superior optical isolation of 2,500 Vac. Its wide operating temperature from -25°C to 85°C ensures dependable performance across various conditions. Compatible with PC/104 and PCI-104 standards, it features LED indicators for transmit/receive status, making installation and troubleshooting straightforward. Ideal for automation, industrial control, and vehicle systems—order today for reliable CAN bus connectivity.
Get PCM-3680BE today—built for high-speed, reliable CAN bus communication with robust isolation and extended temperature range.
