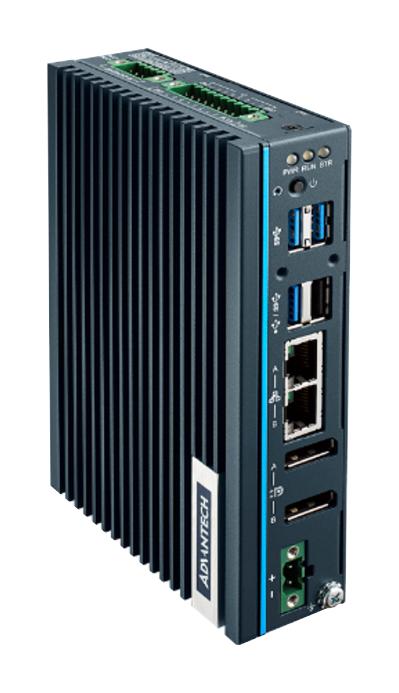

Advantech Automation UNO137ID1EA Industrial Controller
The UNO-137 is a compact DIN-rail controller featuring an Intel® Atom® E3940 CPU (1.6 GHz), 8 GB DDR3L RAM, and extensive I/O including 2 x LAN, 2 x COM, 3 x USB 3.0, 8 x DI, 8 x DO, along with dual storage options. It supports wide temperature ranges, has onboard TPM 2.0 security, and complies with IEC 61010-1 safety standards. Modular design allows optional expansion with iDoor modules for industrial communication, fieldbus, and peripheral integration, making it ideal for diverse industrial automation applications.
Advantech Automation UNO137ID1EA Industrial Controller Specifications:
- Processor: Intel® Atom® E3940, 1.6 GHz (up to 1.8 GHz)
- Memory: Built-in 8 GB DDR3L, 1600 MHz
- Storage: 1 x 2.5" SSD/HDD (up to 9.5 mm)
- Display: 2 x DP 1.2 ports
- Ethernet: 2 x 10/100/1000 Mbps Gigabit Ethernet (RJ45)
- Serial Ports: 2 x RS-232/422/485, terminal block
- Digital Input: 8 channels, isolation protection 2500 Vac
- Digital Output: 8 channels, output voltage 5-30 Vac, sink capability 500 mA
- USB Ports: 3 x USB 3.2 Gen 1, 1 x USB 2.0 Type A
- Power Input: 10-36 Vac, typical power consumption 21W
- Operating Temperature: -40 ~ 70 °C/-40 ~ 158 °F, with peripherals 40~85 °C/-40~185 °F
- Ingress Protection: IP40, compliant with IEC 61010-1
- Dimensions: 35 x 105 x 150 mm (1.4 x 4.1 x 5.9 in)
- Enclosure: Aluminum, DIN-rail mountable
- Onboard Security: TPM 2.0, watchdog timer
- Expansion Support: mPCle, M.2, nano SIM slot, optional iDoor extension
- Certifications: CE, FCC, UL 61010-2-201, CCC, BSMI
Buy the Advantech Series UNO-137 Industrial Controller: UNO137ID1EA
Purchase the Advantech UNO-137ID1EA industrial controller online today and enhance your automation system with a compact, robust, and flexible DIN-rail solution. Equipped with an Intel® Atom® E3940 processor, 8 GB DDR3L RAM, multiple communication ports, onboard TPM 2.0 security, and wide temperature operation, this controller is ideal for diverse industrial environments. Its modular design allows optional expansion with iDoor modules for additional communication, fieldbus, and I/O capabilities, ensuring reliable and scalable automation performance for your operations.
Get Advantech UNO-137ID1EA today—built for precision, security, and long-lasting durability in industrial automation.
