Advantech Automation BBPS12VLBINTMED Medical Power Supply

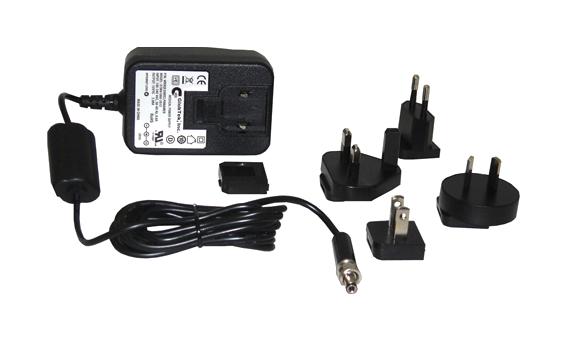

The BB-PS12VLB-INT-MED is a medical-grade 12 Vdc power supply designed for clinical and sensitive equipment. It features a locking barrel plug for secure connections and includes international input blades suitable for USA, EU, UK, Australia, and Canada, ensuring versatility worldwide. The supply offers 12 V constant voltage, 2.08A current capacity, and 4 KV isolation to protect against surges. Its regulated switchmode design ensures stable operation, while durable, high-impact polycarbonate housing guarantees long-term reliability in medical environments. Compliance with multiple safety standards makes it ideal for healthcare applications.
Advantech Automation BBPS12VLBINTMED Medical Power Supply Specifications:
- Input Voltage: 100 - 240 Vac (90 - 264 Vac)
- Input Frequency: 50 - 60 Hz (47 - 63 Hz)
- Input Current: <0.6 A, maximum 3A
- Operating Temperature: 0 to +40 °C (+32 to +104 °F)
- Storage Temperature: -40 to +80 °C (-40 to +176 °F)
- Output Voltage: 12 Vdc
- Output Current: 2.08 A
- Output Regulation: ±5% nominal voltage
- Ripple: <1%, typical
- Power Range: 25W
- MTBF: 200,000 hours (+25°C)
- Dimensions: 84.0 x 56.0 x 37.9 mm
- Housing Material: High-impact 94V0 polycarbonate
- Isolation: 4 KV
- Over-Voltage Protection: Limited to <130% of nominal voltage
- Over-Current/Short Circuit: HICCUP mode with auto-recovery
- Connector: Female locking barrel, center positive (+V), 5.5mm outer diameter, 2.5mm center conductor
- Compliance: CE, RoHS-3, REACH, WEEE, cRUus, CCC, EN 55024, IEC 60601-1 (medical device safety)
- Input Blades: USA, EU, UK, AU, CN
Buy the Advantech Series Medical Power Supply: BB-PS12VLB-INT-MED
Purchase the Advantech Series medical-grade power supply BB-PS12VLB-INT-MED online today to guarantee secure and stable power for sensitive healthcare equipment. This reliable, regulated 12 Vdc supply features a locking barrel connector that prevents accidental disconnection, ensuring continuous operation. Its international input blades allow versatile compatibility across regions like the USA, EU, UK, Australia, and Canada. Designed with 4 KV isolation, it protects against surges, while its compact, durable high-impact polycarbonate housing ensures long-term service. Ideal for medical applications demanding safety, stability, and compliance with global standards.
Order your Advantech Series medical-grade power supply BB-PS12VLB-INT-MED today and ensure secure, reliable operation for your healthcare devices.
Frequently Asked Questions
Where can I buy Advantech Automation BBPS12VLBINTMED?
You can click on the BUY or RFQ button to purchase BBPS12VLBINTMED from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part BBPS12VLBINTMED?
You can download the BBPS12VLBINTMED datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of BBPS12VLBINTMED?
Advantech Automation
