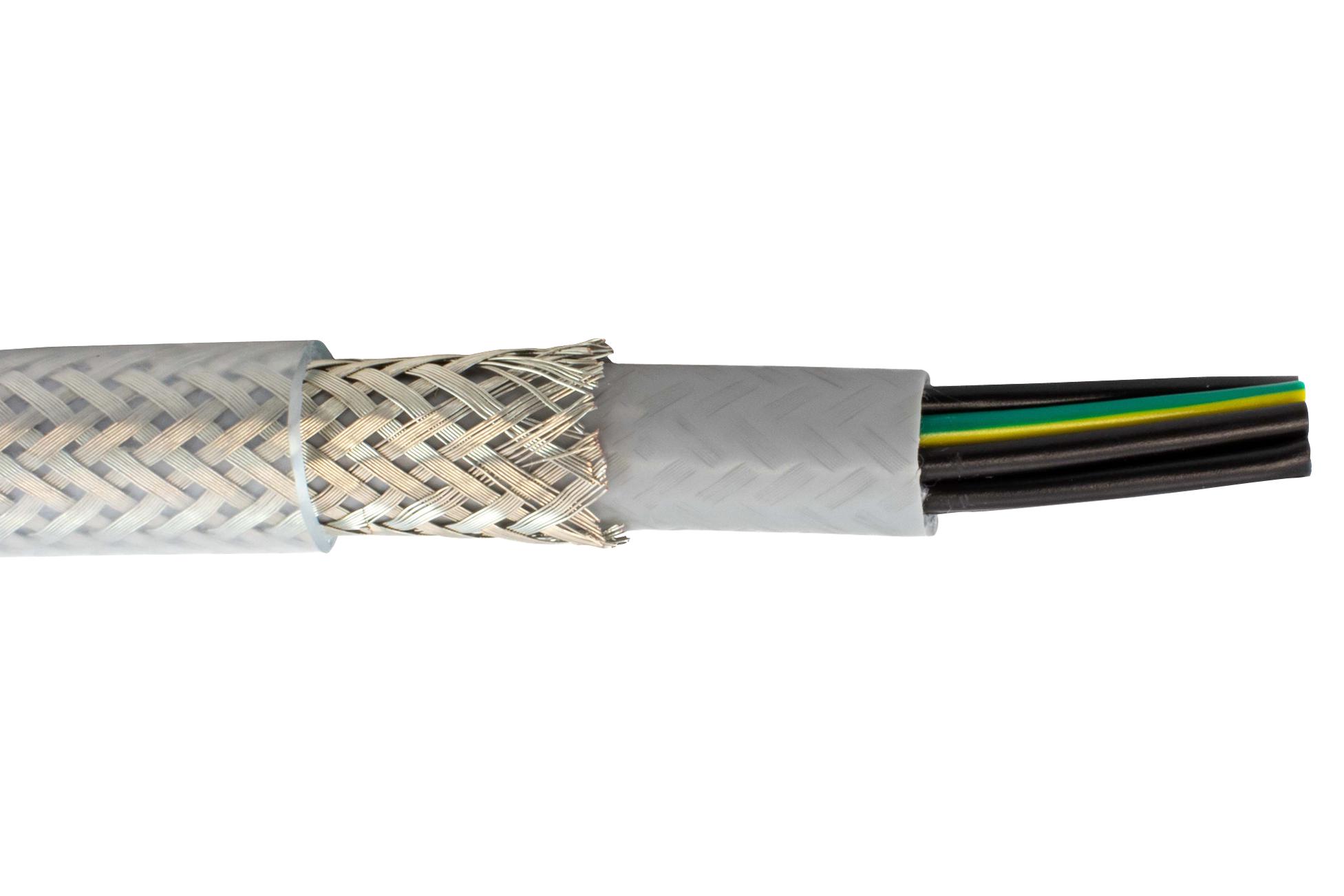

ALPHA WIRE 470031CYCL321 Shielded Control Cable
Pro-Met® shielded flexible industrial control cable with three 17 AWG stranded bare copper conductors, tinned copper braid shield, and transparent PVC jacket. Resistant to oils, UV, and chemicals, ideal for food, medical, automation, automotive, defense, aerospace, and precision control uses. Rated for up to 1 million flex cycles. Dynamic temp: -30°C to +70°C; static: -40°C to +80°C. Flexible with a bend radius of 20×OD for occasional movement and 6×OD for fixed installation, ensuring durability in harsh environments.
ALPHA WIRE 470031CYCL321 Shielded Control Cable Specifications:
- Number of Conductors: 3 x 17 AWG stranded bare copper
- Shield: Tinned copper braid, 80% coverage
- Jacket Material: Transparent PVC
- Temperature Range: Static -40°C to +80°C, Dynamic -30°C to +70°C
- Bend Radius: 20× Outer Diameter (occasional movement), 6× Outer Diameter (fixed installation)
- Voltage Rating: 300/500 V
- Flex Cycles: Rated for up to 1 million flex cycles
- Resistance: Oil, UV, chemical resistant
- Applications: Food, Medical, Automation, Automotive, Defense, Aerospace
Buy the Buy Alpha Wire Part Number 470031CY Online
Purchase the Alpha Wire 470031CY shielded control cable online today and benefit from durable, flexible wiring designed for demanding industrial, automation, and aerospace applications. With three 17 AWG conductors, tinned copper braid shielding, and a transparent PVC outer jacket, this cable ensures excellent resistance to oils, UV, and chemicals. Rated for up to 1 million flex cycles, its temperature range from -40°C to +80°C makes it ideal for both static and dynamic environments. Order now for dependable, premium-quality wiring tailored to your specialized needs.
Order your Alpha Wire 470031CY flexible control cable today and ensure reliable performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470031CYCL321?
You can click on the BUY or RFQ button to purchase 470031CYCL321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470031CYCL321?
You can download the 470031CYCL321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470031CYCL321?
ALPHA WIRE
